Vertiv Mn01d5w1-42pz68-4cs15a0a10-s-a (I10146L)
Vertiv Mn01d5w1-42pz68-4cs15a0a10-s-a (I10146L)
-
MN01D5W1-42PZ68-4CS15A0A10-S-A
-
Out Of Stock
Product Description

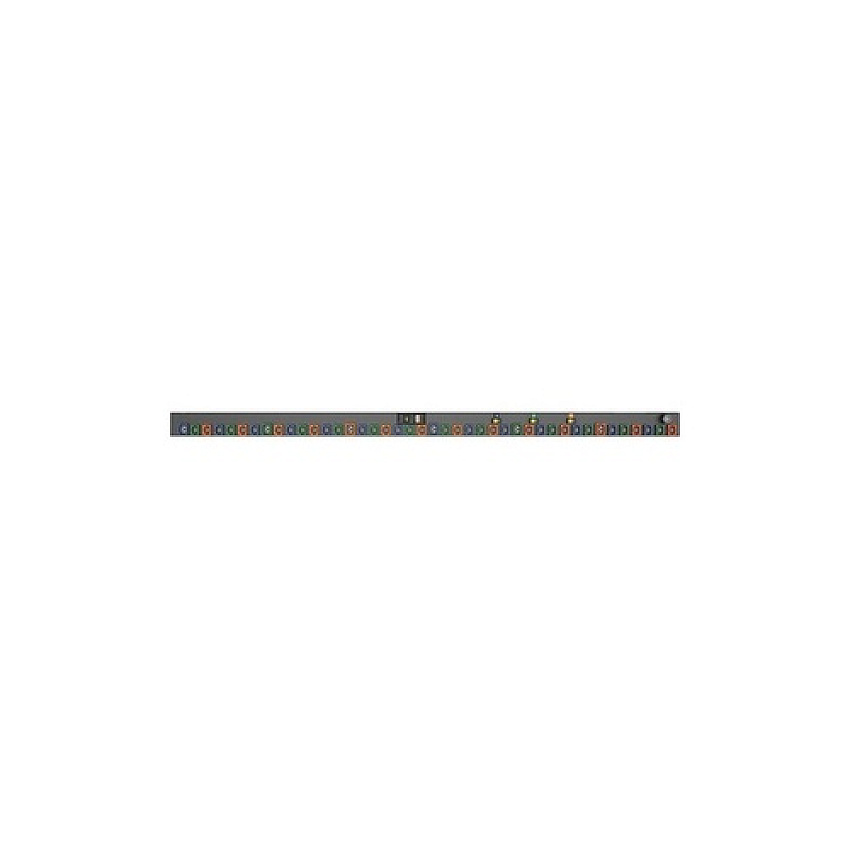

Metered, Upgradeable, 35A, 208V DELTA, 3 Phase, Vertical, (36) Locking IEC C13, (6) Locking IEC C19, Alternating Phase/Circuits, breakered, 10 ft power cord with 3P+E CA, Black Powder Coat.
Product Specs
Manufacturer
VertivManufacturer Stock No.
I10146LMPN
VRTI10146LModel#
I10146LUNSPSC Code
0Information
Product Description: Geist Metered Upgradeable MN01D5W1-42PZ68-4CS15A0A10-S-A - power distribution unit - 10 kWDevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Input Wiring: 3-phase 4 Wire delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 10 kW
Input Connectors: 1 x power IEC 60309 3P+E
Output connectors: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19
Color: Black powder coat
Dimensions (WxDxH): 3.5 in x 2 in x 75 in
Manufacturer Warranty: 5-year warranty with product registration
Device Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Frequency Provided: 50/60 Hz
Input Wiring: 3-phase 4 Wire delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power IEC 60309 3P+E
Power Output Connectors Details: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19
Output Voltage: AC 208 V 50/60 Hz
Max Electric Current: 35 A
Power Capacity: 10 kW
Circuit Protection: Circuit breaker
Cables Included: Power cable 10 ft
Rack Mounting Kit: Included
Features: LED display, voltage monitoring, LED indicators, overload protection, vertical orientation, twist lock plug, power factor meter, rotatable LCD panel, power measuring, circuit/breaker current monitoring, Visible Light Communication (VLC) technology, U-lock outlets, 6 x 20A double pole magnetic breakers, alternating phase/circuits
Compliant Standards: cUL, UL 60950, RoHS, FCC Part 15 A, IEC 62053-21, ANSI C12.1
Service & Support: Limited warranty - 5 years
Max Operating Temperature: 140 °F
Width: 3.5 in
Depth: 2 in
Height: 75 in
Shipping Weight: 19 lbs
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
19Ships via UPS
NBrand
Vertiv
