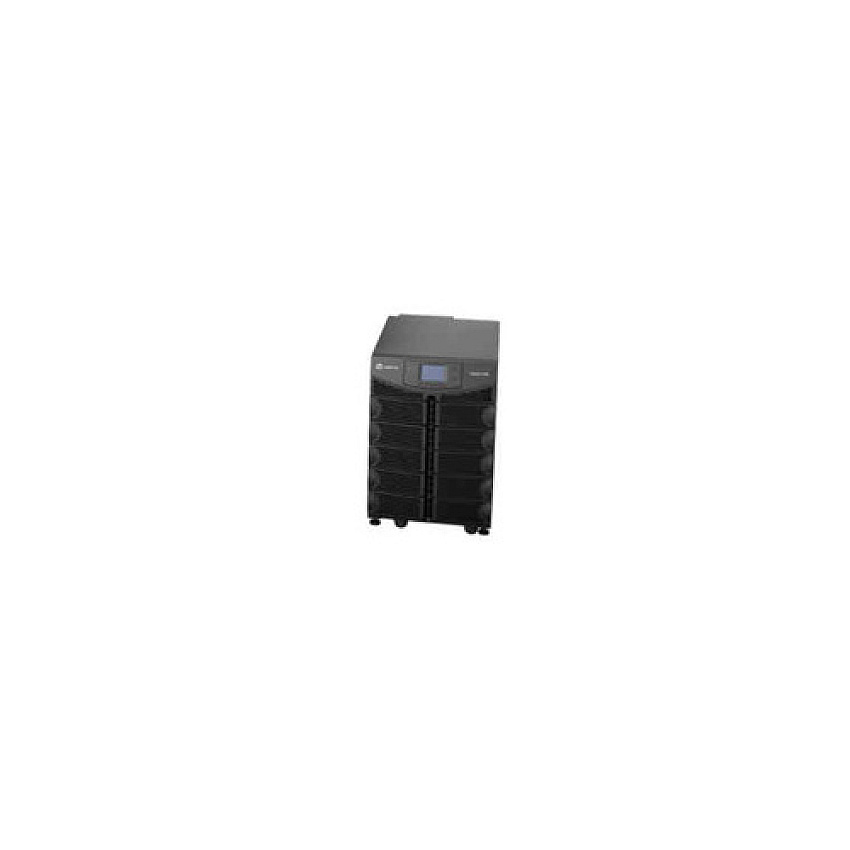

Vertiv Aps 10kva Scalable To 15kva N+1 (AS5B0NCXGNNXLKB)
Vertiv Aps 10kva Scalable To 15kva N+1 (AS5B0NCXGNNXLKB)
-
APS 10KVA SCALABLE TO 15KVA N+1
-
Special order arrives within 3-7 weeks.
Product Description
APS 10kVA scalable to 15kVA N+1, 16M,10kVA/9.0kW LLNG 208/120V out, 16MIN
Product Specs
Manufacturer
VertivManufacturer Stock No.
AS5B0NCXGNNXLKBMPN
VRTAS5B0NCXGNNXLKBModel#
AS5B0NCXGNNXLKBUNSPSC Code
0Information
Product Description: Liebert APS AS5 Series - UPS - 9 kW - 10000 VADevice Type: UPS - external
Weight: 565.04 lbs
Input Voltage: AC 100/110/115/120/200/208/220/230/240 V
Output Voltage: AC 100/110/115/120/200/208/220/230/240 V ± 3%
Power Capacity: 9 kW / 10000 VA
Power Redundancy: Optional
Input Connectors: 1 x hardwire 4-wire
Output connectors: 1 x hardwire
Battery: Expandable
Run Time (Up To): 16 min at full load
Networking: Ethernet 10/100, RS-485
Remote Management Protocol: SNMP, Modbus
Dimensions (WxDxH): 17.3 in x 31.5 in x 27.4 in
Manufacturer Warranty: 2-year warranty
Device Type: UPS - external
UPS Technology: On-line
Supported Power Modules Qty: 10
Power Redundancy: Optional
Power Redundancy Scheme: N+1 (with optional power supply)
Input Voltage: AC 100/110/115/120/200/208/220/230/240 V
Frequency Provided: 50/60 Hz
Frequency Required: 40 - 70 Hz
Input Connectors: 1 x hardwire 4-wire
Power Output Connectors Details: 1 x hardwire
Output Voltage: AC 100/110/115/120/200/208/220/230/240 V ± 3% - 50/60 Hz
Power Capacity: 9 kW / 10000 VA
Efficiency: 91%
Power Factor (PF): 0.99
Type: Expandable
Run Time (Up To): 16 min at full load ¦ 41 min at half load
Remote Management Interface: Ethernet 10/100, RS-485
Remote Management Protocol: SNMP, Modbus
Interfaces: 1 x management (Fast Ethernet) ¦ 2 x management (RS-485)
Expansion Slots: 3 (total) / 2 (free) x Liebert IntelliSlot
Features: Casters, LCD display, hot-swappable batteries, FlexPower Technology, double conversion, hot-swappable UPS power module
Compliant Standards: CISPR 22 Class A, IEC 61000-4-2, UL 1778, EN 61000-4-2, CSA C22.2 No. 107.1, IEC 62040-2, WEEE, FCC Part 15 A, REACH, EN 62040-2, RoHS2, EN 62040-1: 2008, IEC 62040-1: 2008, AS 62040-1, AS 62040-2
Service & Support: Limited warranty - 2 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 0 - 95% (non-condensing)
Width: 17.3 in
Depth: 31.5 in
Height: 27.4 in
Weight: 565.04 lbs
Shipping Weight: 604.94 lbs
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
676Ships via UPS
NBrand
Vertiv
$10,937.44
$14,269.00
$18,673.89
$24,362.00
$28,137.31
$36,708.00
