Tyan Computer Motherboard Extended Atx 5000p (S5383G2NR)
Tyan Computer Motherboard Extended Atx 5000p (S5383G2NR)
-
Motherboard extended ATX 5000P
-
Out Of Stock
Product Description

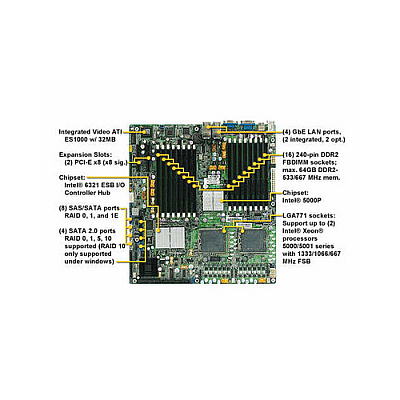

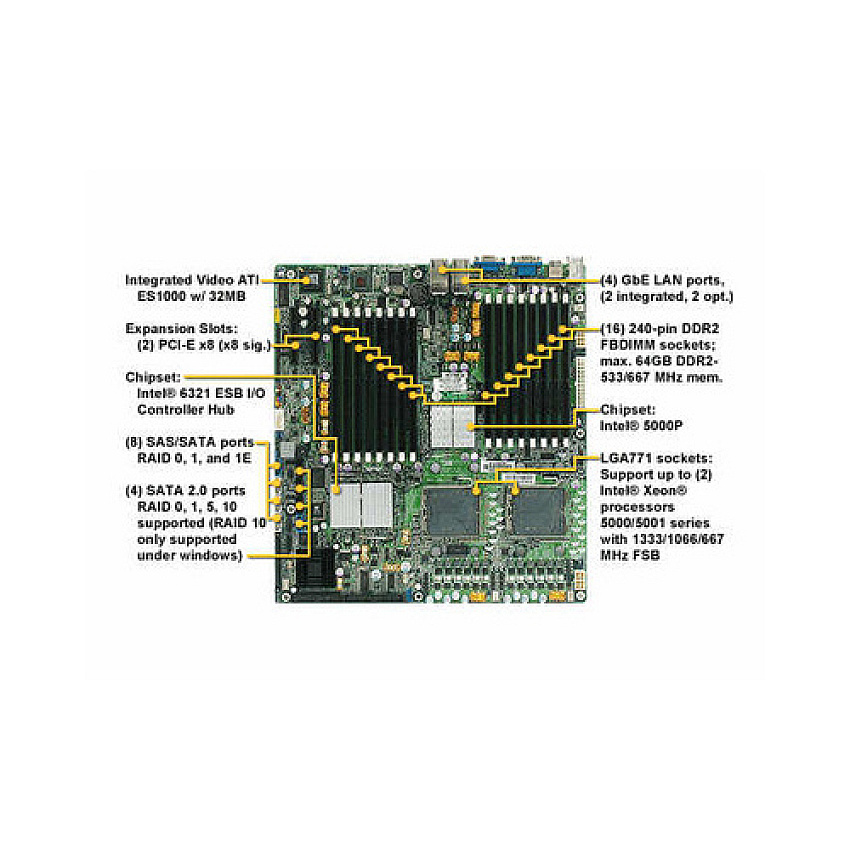

Supports dual Intel Xeon processors 5000/5100 series, (16) FBDIMM memory sockets, dual Gigabit Ethernet ports, dual PCI Express slots, and remote management and power management options, all in a 1U-centric layout.
Product Specs
Manufacturer
Tyan ComputerManufacturer Stock No.
S5383G2NRMPN
TYNS5383G2NRModel#
S5383G2NRUPC Code
635872016820UNSPSC Code
0Information
Mainboard Form Factor: SSI; Extended ATXCompatible Processors: Intel Xeon processors 5000/5100 series
Mainboard / Chipset Type: Intel 5000P
Front Side Bus: 1333/1066/667 MHz
Max Bus Speed: N/A
Networking Type: Gilgal Ethernet
Processor / Max Supported Qty: 2
Processor / Socket Type: Socket 771
RAM / Technology: DDR2 SDRAM
RAM / Max Supported Size: 64 GB
Storage Controller Type: Serial ATA
Expansion Slots Total (Free): One (1) PCI-E x8 slot (w/ x8 signals from MCH);
One (1) PCI-E x8 slot (w/ x8 signals from ESB2);
Total of two expansion slots
Interfaces & Connections: Stacked PS/2 mouse & keyboard ports;
Stacked 2 USB 2.0 ports;
1 9-pin COM port;
1 15-pin VGA port;
1 side-by-side RJ45 (GbE LAN) ports;
1 IDE port;
1 floppy port;
1 9-pin serial port (pin header);
2 USB 2.0 ports (via cable);
4 standard SATA connectors
Width: 12 Inch
Depth: 13 Inch
Unit of Measure
Item Weight
4.45Ships via UPS
YBrand
Tyan Computer
$362.42
$448.50
