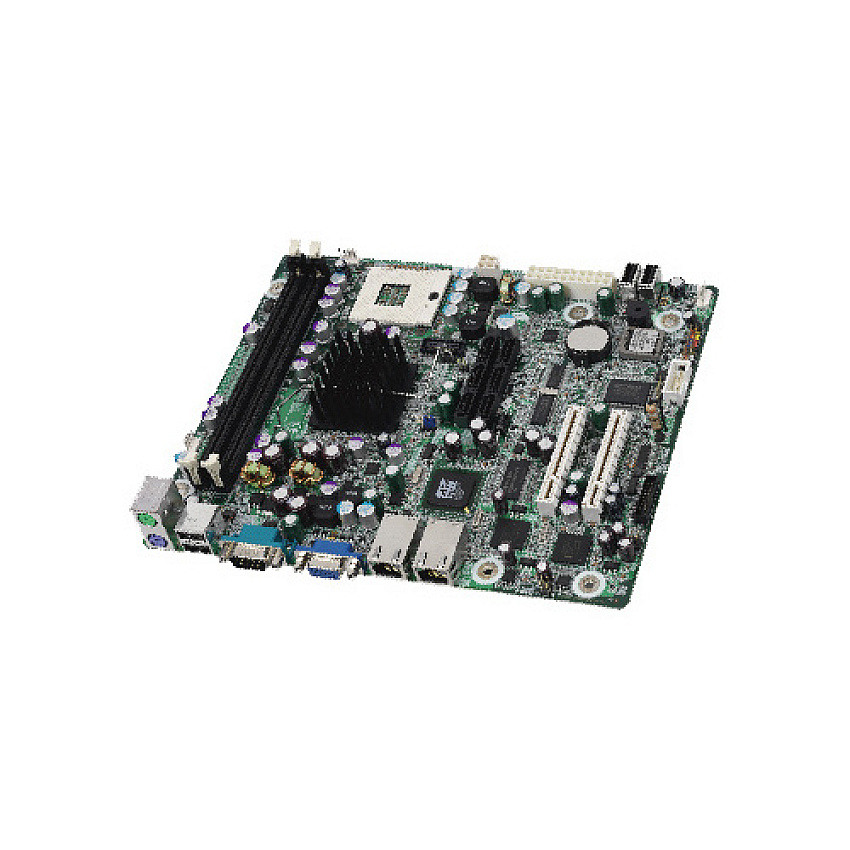

Tyan Computer I3100 C2d Flexatx 4g(m) Ddr2 Pciex8 Sata (S5207G2N)
Tyan Computer I3100 C2d Flexatx 4g(m) Ddr2 Pciex8 Sata (S5207G2N)
-
I3100 C2D FlexATX 4G(M) DDR2 PCIEx8 SATA
-
Out Of Stock
Product Description
Toledo i3100 (S5207) is a conventional flex ATX server platform that integrated with a choice of Intel Core Duo, Core 2 Duo, & Intel Celeron M processors. Additional features include: Intel 3100 MICH chipset, (2) PCI-E x8 (x4 signals) expansion slots
Product Specs
Manufacturer
Tyan ComputerManufacturer Stock No.
S5207G2NMPN
TYNS5207G2NModel#
S5207G2NUPC Code
635872019166UNSPSC Code
0Information
Mainboard Type: ServersMainboard Form Factor: FlexATX
Compatible Processors: Celeron M, Core Duo, Core 2 Duo
Mainboard / Chipset Type: Intel 3100
Front Side Bus: 533/667 MHz
Max Bus Speed: 667 MHz
Video Output Type: ATI ES1000
Video Memory / Installed Size: 32 MB
Compliant Standards: FCC Class B certified, CE
Networking Type: Network adapter - Intel 82573L - Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Watch Dog Timer
Processor / Max Supported Qty: 1
Processor / Socket Type: Socket 479
RAM / Technology: DDR2 SDRAM
RAM / Max Supported Size: 4 GB
Data Integrity Check: ECC
Storage Controller Type: Serial ATA
Controller Interface Type: Serial ATA-150
Expansion Slots Total (Free): 1 processor - 479-pin Micro FCBGA ;
2 PCI Express x8 ( x4 mode ) ;
2 memory - DIMM 240-pin
Interfaces & Connections: 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T;
2 x Hi-Speed USB;
1 x display / video - VGA ;
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) ;
1 x mouse - generic - 6 pin mini-DIN (PS/2 style) ;
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
Model: Tyan Toledo i3100
Width: 9 Inch
Depth: 7.5 Inch
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
2.5Ships via UPS
YBrand
Tyan Computer
$539.35
$647.22
$334.54
$448.50
