Tripp Lite HDMI + IR + Serial RS232 over Cat5 Cat6 Active Video Extender TAA GSA (B1261A1SR)
Tripp Lite HDMI + IR + Serial RS232 over Cat5 Cat6 Active Video Extender TAA GSA (B1261A1SR)
-
3840 x 2160 4Kx2K UHD 1080p @ 24/30 Hz Up to 328 ft.
-
In Stock
Product Description
Extender kit features a transmitter unit and a receiver unit to extend your HDMI audio and video when the source is located farther than conventional cables allow. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal at 24/30Hz up to 328' with a single Cat6a cable, up to 230' with a 24 AWG solid-wire Cat6 cable, and up to 150' with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series). For extending computer video resolutions of 1920 x 1200 at 60 Hz or high-definition video resolutions of 1080p at 60 Hz up to 328', use a single 24 AWG solid-wire Cat5e/6 cable. You can also control RS-232 serial devices, such as touch-screen displays or scanners, at baud rates up to 115 Kbps. Kit supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video and HDCP.
Product Features
-
Plug-and-play technology connects immediately without software or drivers
-
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
-
Controls RS-232 serial devices at baud rates up to 115 Kbps
-
Compatible with all operating systems and HDMI video sources
-
Perfect for digital signs, trade-show presentations and more
Package Includes

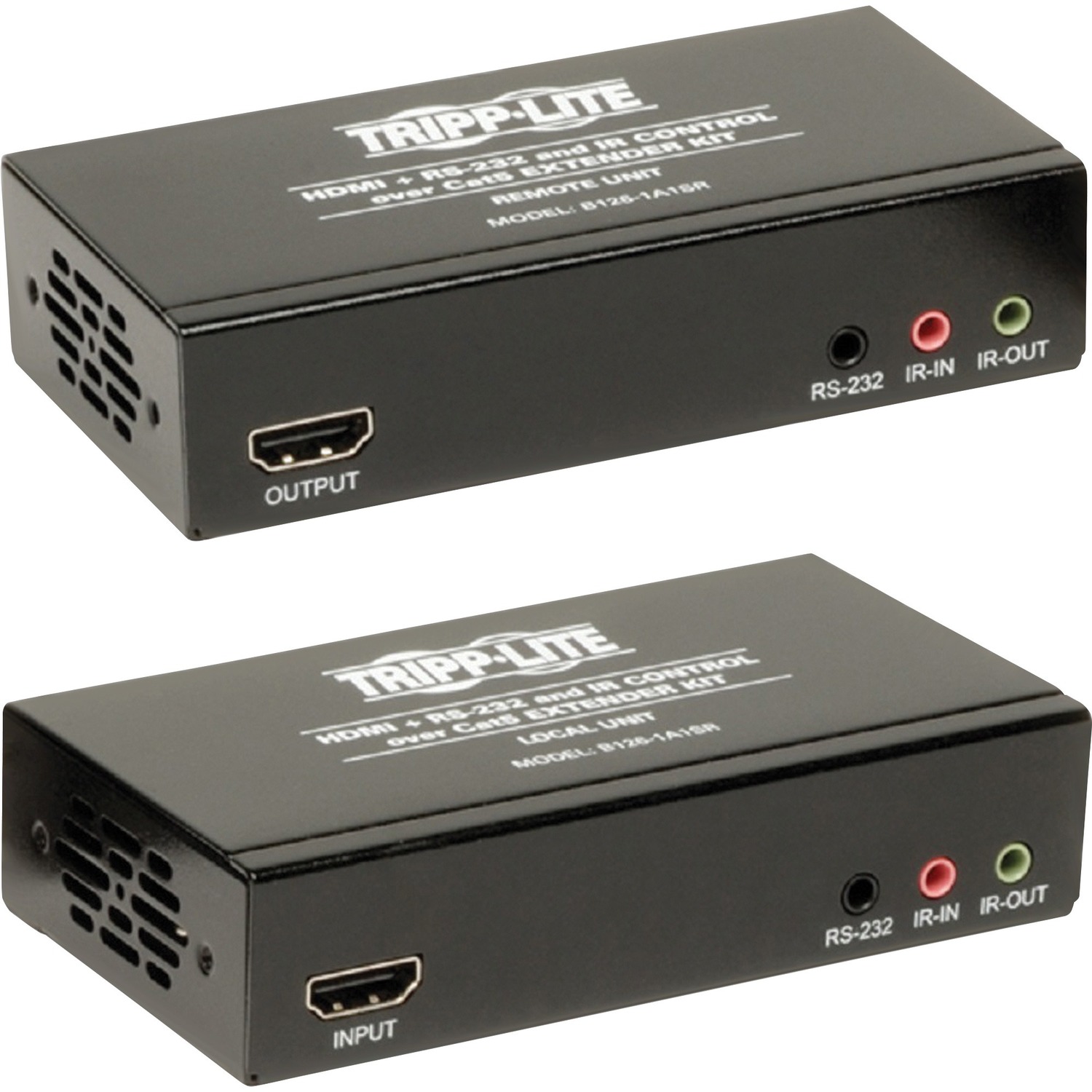

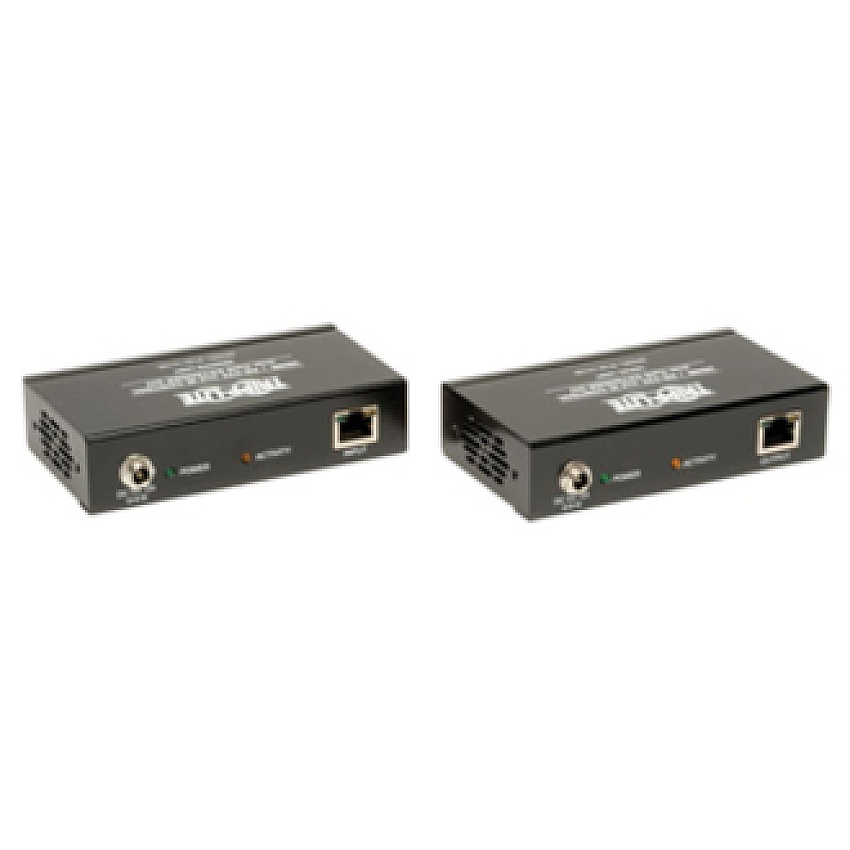

Local Transmitter and Remote Receiver Units
2 x Sets of IR-IN Cables
2 x Sets of IR-OUT Cables
3.5 mm Male-to-DB9-Female Adapter Cable
3.5 mm Male-to-DB9-Male Adapter Cable
2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)
2 x Sets of Mounting Hardware Kits
Owner's Manual
Product Specs
Manufacturer
Tripp LiteCategories
Tripp Lite Computer AccessoriesTripp Lite Networking, Cables & AccessoriesTripp Lite Range ExtendersManufacturer Stock No.
B126-1A1SRMPN
TRPB1261A1SRModel#
B1261A1SRUPC Code
818240831014UNSPSC Code
0Brand Name
Tripp LiteConnectivity Technology
WiredCountry of Origin
TaiwanEnvironmental Certification
RoHSForm Factor
Wall Mountable, Rack-mountable, Pole-mountableGraphics Modes
4KHDMI In
YesHDMI Out
YesLimited Warranty
1 YearManufacturer
Tripp Lite by EatonManufacturer Part Number
B126-1A1SRManufacturer Website Address
http://www.tripplite.comMaximum Operating Distance
328 ftMaximum Video Resolution
3840 x 2160Network (RJ-45)
YesNumber of HDMI Inputs
1Number of HDMI Outputs
1Number of Network (RJ-45) Ports
2Package Contents
- Local Transmitter and Remote Receiver Units
- 2 x Sets of IR-IN Cables
- 2 x Sets of IR-OUT Cables
- 3.5 mm Male-to-DB9-Female Adapter Cable
- 3.5 mm Male-to-DB9-Male Adapter Cable
- 2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)
- 2 x Sets of Mounting Hardware Kits
- Owner's Manual
Product Model
B126-1A1SRProduct Name
HDMI + IR + Serial RS232 over Cat5 / 6 Active Extender KitProduct Type
Video Extender Transmitter/ReceiverTAA Compliant
YesTwisted Pair Cable Standard
Category 6Product color
BlackReceiver Depth
11.30"Receiver Height
2"Receiver Width
6.20"Transmitter Depth
11.30"Transmitter Height
2"Transmitter Width
6.20"Additional Warranty Information
1 year limited warranty
Assembly Required
No assembly is requiredContains Recycled Materials
NReturnable
NoManufacturer Warranty
YUnit of Measure
EAItem Weight
2.4Ships via UPS
YThis item is sold by the
EABrand
Tripp LiteCountry of Origin
TWUNSPSC Number
45111815Warranty
Additional Warranty Information:1 year limited warranty
