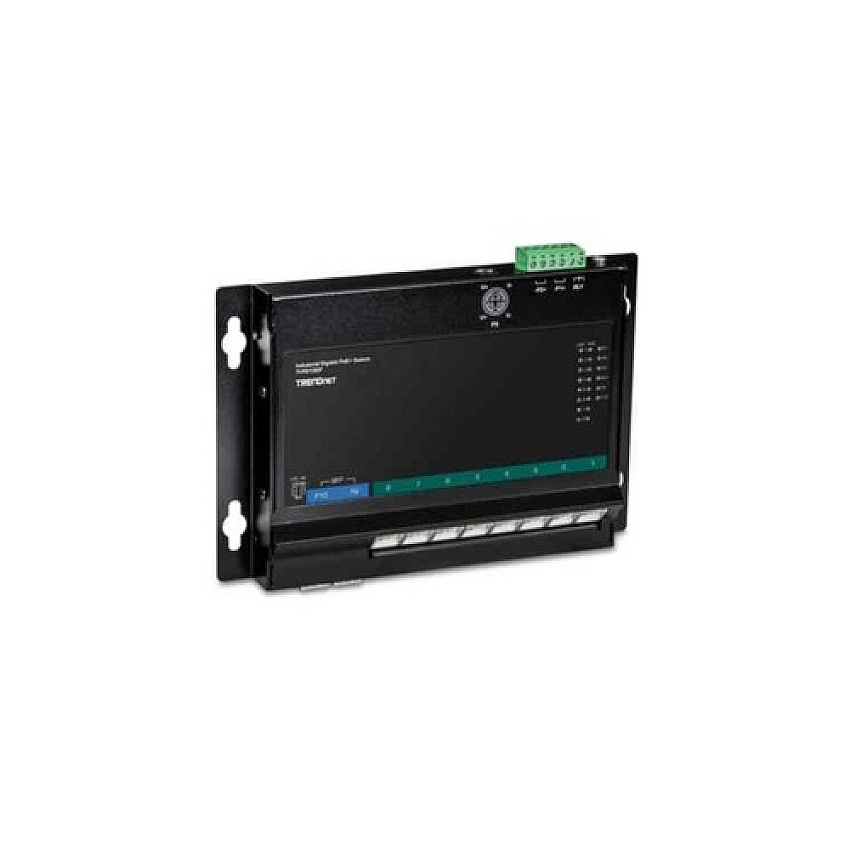

Trendnet 10-port Industrial Gigabit Poe+ Wall-mount Front Access Switch (TIPG102F)
Trendnet 10-port Industrial Gigabit Poe+ Wall-mount Front Access Switch (TIPG102F)
-
10-Port Industrial Gigabit PoE+ Wall-Mount Front Access Switch
-
Out Of Stock
Product Description
10-Port Industrial Gigabit PoE+ Wall-Mount Front Access Switch
Product Specs
Manufacturer
TrendnetCategories
Trendnet Computer AccessoriesTrendnet Networking, Cables & AccessoriesTrendnet Network SwitchesManufacturer Stock No.
TI-PG102FMPN
TNDTIPG102FModel#
TIPG102FUPC Code
710931161786UNSPSC Code
0Information
Product Description: TRENDnet TI-PG102F - Industrial - switch - 10 ports - TAA CompliantDevice Type: Switch - 10 ports
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 240 W
Performance: Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
MAC Address Table Size: 11K entries
Jumbo Frame Support: 10KB
Features: Auto-negotiation, store and forward, half duplex mode, full duplex mode, surge protection, 8KV ESD Protector, metal housing, shock-resistant, vibration-proof
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Power: DC 48 - 56 V - power adapter not included
Power Redundancy: Yes
Dimensions (WxDxH): 5.9 in x 5.7 in x 0.9 in
Weight: 22.4 oz
TAA Compliant: Yes
Manufacturer Warranty: 3-year warranty
Device Type: Switch - 10 ports
Enclosure Type: DIN rail mountable, wall-mountable
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 240 W
Performance: Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
MAC Address Table Size: 11K entries
Jumbo Frame Support: 10KB
Features: Auto-negotiation, store and forward, half duplex mode, full duplex mode, surge protection, 8KV ESD Protector, metal housing, shock-resistant, vibration-proof
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Interfaces: 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-FX SFP
Power Device: External power adapter (not included)
Max Supported Qty: 2
Power Redundancy: Yes
Voltage Required: DC 48 - 56 V
Power Consumption Operational: 4.8 Watt
Included Accessories: DIN-rail mounting kit, wall mounting kit
MTBF: 459,123 hours
Compliant Standards: FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
TAA Compliant: Yes
Width: 5.9 in
Depth: 5.7 in
Height: 0.9 in
Weight: 22.4 oz
Service & Support: Limited warranty - 3 years
Min Operating Temperature: -40 °F
Max Operating Temperature: 167 °F
Humidity Range Operating: 95% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
