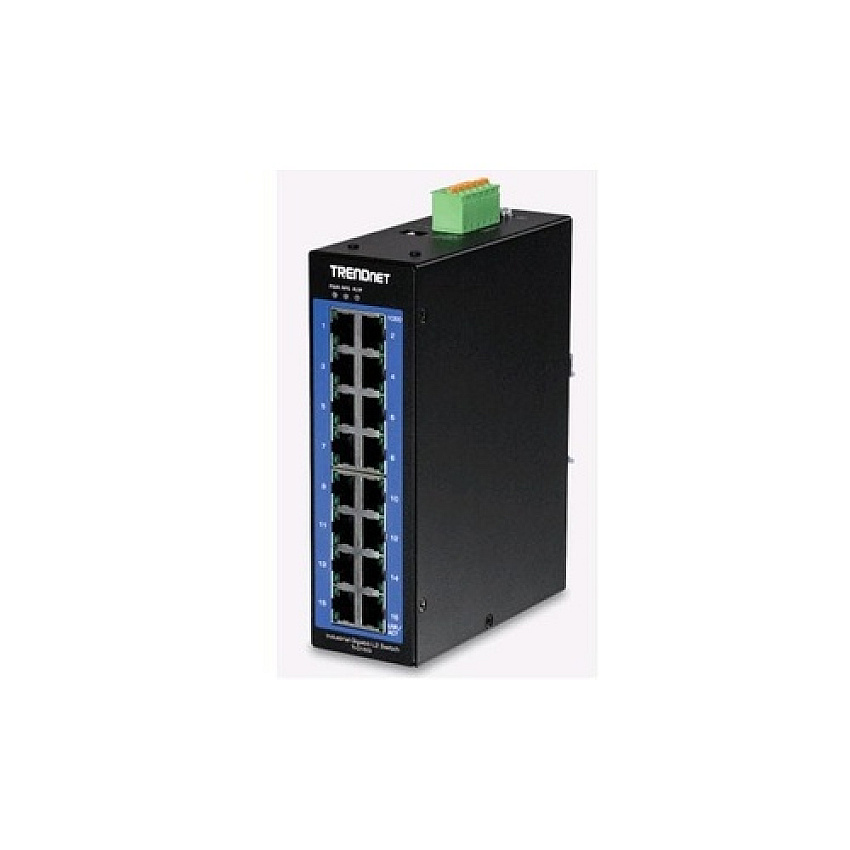

Trendnet 16-port Industrial Gigabit L2 Managed Din-rail Switch (TIG160I)
Model: TIG160I
Trendnet 16-port Industrial Gigabit L2 Managed Din-rail Switch (TIG160I)
Model: TIG160I
-
16-Port Industrial Gigabit L2 Managed DIN-Rail Switch
-
Out Of Stock
Product Description
16-Port Industrial Gigabit L2 Managed DIN-Rail Switch
Product Specs
Manufacturer
TrendnetCategories
Trendnet Computer AccessoriesTrendnet Networking, Cables & AccessoriesTrendnet Network SwitchesManufacturer Stock No.
TI-G160IMPN
TNDTIG160IModel#
TIG160IUPC Code
710931161694UNSPSC Code
0Information
Product Description: TRENDnet TI-G160I - switch - 16 ports - managed - TAA CompliantDevice Type: Switch - 16 ports - managed
Subtype: Gigabit Ethernet
Ports: 16 x 10/100/1000
Performance: Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps
Capacity: VLAN groups: up to 256 ¦ Multicast groups: up to 256
MAC Address Table Size: 8K entries
Jumbo Frame Support: 10KB
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI
Features: VLAN support, IGMP snooping, Syslog support, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, WFQ, STP support, RSTP support, DHCP snooping, ACL support, QoS, DAI, fanless, LACP support, LLDP support, DHCP relay, Port Security, built-in DIP switch, port isolation, CoS, SP, tagged VLAN, 8KV ESD Protector, ONVIF support, metal housing, per port bandwidth control, DSCP support, ERPS, ARP inspection, 6KV Surge protection, MIB II, DLF, IGMP querier, Root Guard, BPDU Filter, WRR, MAC based VLAN, loopback detection, Modbus compatible, traffic monitoring, BPDU Guard, queue scheduling support
Compliant Standards: IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
Power: DC 12 - 60 V - power adapter not included
Power Redundancy: Yes
Dimensions (WxDxH): 4.7 in x 2 in x 6.3 in
Weight: 31.18 oz
TAA Compliant: Yes
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 16 ports - managed
Enclosure Type: DIN rail mountable
Subtype: Gigabit Ethernet
Ports: 16 x 10/100/1000
Performance: Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 23.8 Mpps
Capacity: VLAN groups: up to 256 ¦ Multicast groups: up to 256
MAC Address Table Size: 8K entries
Jumbo Frame Support: 10KB
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI
Features: VLAN support, IGMP snooping, Syslog support, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, SNTP support, WFQ, STP support, RSTP support, DHCP snooping, ACL support, QoS, DAI, fanless, LACP support, LLDP support, DHCP relay, Port Security, built-in DIP switch, port isolation, CoS, SP, tagged VLAN, 8KV ESD Protector, ONVIF support, metal housing, per port bandwidth control, DSCP support, ERPS, ARP inspection, 6KV Surge protection, MIB II, DLF, IGMP querier, Root Guard, BPDU Filter, WRR, MAC based VLAN, loopback detection, Modbus compatible, traffic monitoring, BPDU Guard, queue scheduling support
Compliant Standards: IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
RAM: 128 MB
Interfaces: 16 x 1000Base-T RJ-45
Power Device: External power adapter (not included)
Max Supported Qty: 2
Power Redundancy: Yes
Voltage Required: DC 12 - 60 V
Power Consumption Operational: 12 Watt
Features: Overload Current Protection
Included Accessories: DIN-rail mounting kit
Compliant Standards: FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
TAA Compliant: Yes
Width: 4.7 in
Depth: 2 in
Height: 6.3 in
Weight: 31.18 oz
Service & Support: Limited warranty - lifetime
Min Operating Temperature: -40 °F
Max Operating Temperature: 167 °F
Humidity Range Operating: 95% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
