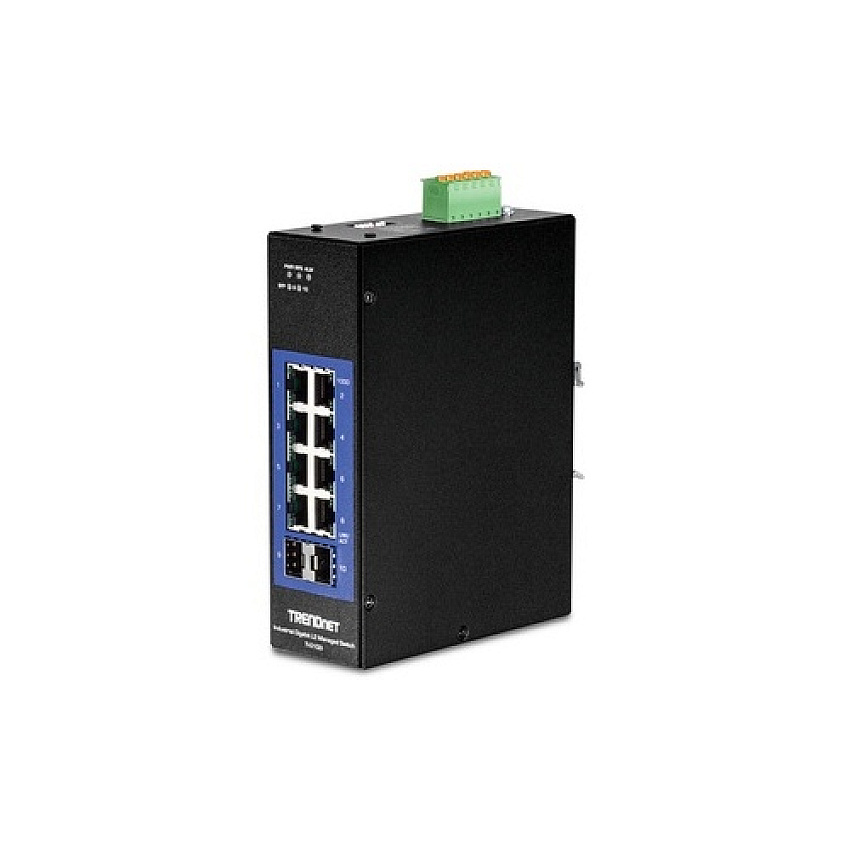

Trendnet 10-port Industrial Gigabit L2 Managed Din-rail Switch (TIG102I)
Model: TIG102I
Trendnet 10-port Industrial Gigabit L2 Managed Din-rail Switch (TIG102I)
Model: TIG102I
-
10-Port Industrial Gigabit L2 Managed DIN-Rail Switch
-
Out Of Stock
Product Description
10-Port Industrial Gigabit L2 Managed DIN-Rail Switch
Product Specs
Manufacturer
TrendnetCategories
Trendnet Computer AccessoriesTrendnet Networking, Cables & AccessoriesTrendnet Network SwitchesManufacturer Stock No.
TI-G102IMPN
TNDTIG102IModel#
TIG102IUPC Code
710931161557UNSPSC Code
0Information
Product Description: TRENDnet TI-G102i - Industrial - switch - 10 ports - managed - TAA CompliantDevice Type: Switch - 10 ports - managed
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 + 2 x Gigabit SFP
Performance: Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity: VLAN groups: 256
MAC Address Table Size: 8K entries
Jumbo Frame Support: 10KB
Routing Protocol: IGMPv2, IGMP, IGMPv3
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, SMTP, Modbus
Features: Layer 2 switching, VLAN support, IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, SNTP support, DDMI, STP support, RSTP support, DHCP snooping, ACL support, QoS, reset button, bandwidth control, fanless, LLDP support, DHCP relay, LACP, SNMP trap, MIB, SPQ, built-in DIP switch, port isolation, CoS, tagged VLAN, 8KV ESD Protector, ONVIF support, metal housing, DSCP support, IP source guard, ARP inspection, MIB II, MAC address learning, ERPS v2, 2KV Surge protection, BPDU Filter, MAC based VLAN, loopback detection, IGMP immediate leave, queue scheduling support, MAC address to port binding
Compliant Standards: IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
Power: DC 12 - 60 V - power adapter not included
Power Redundancy: Optional
Dimensions (WxDxH): 2 in x 4.7 in x 6.3 in
Weight: 31.18 oz
TAA Compliant: Yes
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 10 ports - managed
Enclosure Type: DIN rail mountable
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 + 2 x Gigabit SFP
Performance: Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity: VLAN groups: 256
MAC Address Table Size: 8K entries
Jumbo Frame Support: 10KB
Routing Protocol: IGMPv2, IGMP, IGMPv3
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI, SMTP, Modbus
Authentication Method: RADIUS, internal user database
Features: Layer 2 switching, VLAN support, IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, SNTP support, DDMI, STP support, RSTP support, DHCP snooping, ACL support, QoS, reset button, bandwidth control, fanless, LLDP support, DHCP relay, LACP, SNMP trap, MIB, SPQ, built-in DIP switch, port isolation, CoS, tagged VLAN, 8KV ESD Protector, ONVIF support, metal housing, DSCP support, IP source guard, ARP inspection, MIB II, MAC address learning, ERPS v2, 2KV Surge protection, BPDU Filter, MAC based VLAN, loopback detection, IGMP immediate leave, queue scheduling support, MAC address to port binding
Compliant Standards: IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
RAM: 128 MB
Built-in Devices: LED panel
Status Indicators: Power, alarm, RPS (Redundant Power Supply), link/activity, SFP
Interfaces: 8 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP
Power Device: External power adapter (not included)
Max Supported Qty: 2
Power Redundancy: Optional
Voltage Required: DC 12 - 60 V
Power Consumption Operational: 13 Watt
Features: Overload Current Protection
Included Accessories: DIN-rail mounting kit, removable terminal block
MTBF: 617,085 hours
Compliant Standards: FCC, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
TAA Compliant: Yes
Width: 2 in
Depth: 4.7 in
Height: 6.3 in
Weight: 31.18 oz
Service & Support: Limited warranty - lifetime
Min Operating Temperature: -40 °F
Max Operating Temperature: 167 °F
Humidity Range Operating: 0 - 95% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
2.45Ships via UPS
YBrand
Trendnet
$245.66
$264.99
