Supermicro Computer X12scz-qf Motherboard (MBDX12SCZQFO)
Supermicro Computer X12scz-qf Motherboard (MBDX12SCZQFO)
-

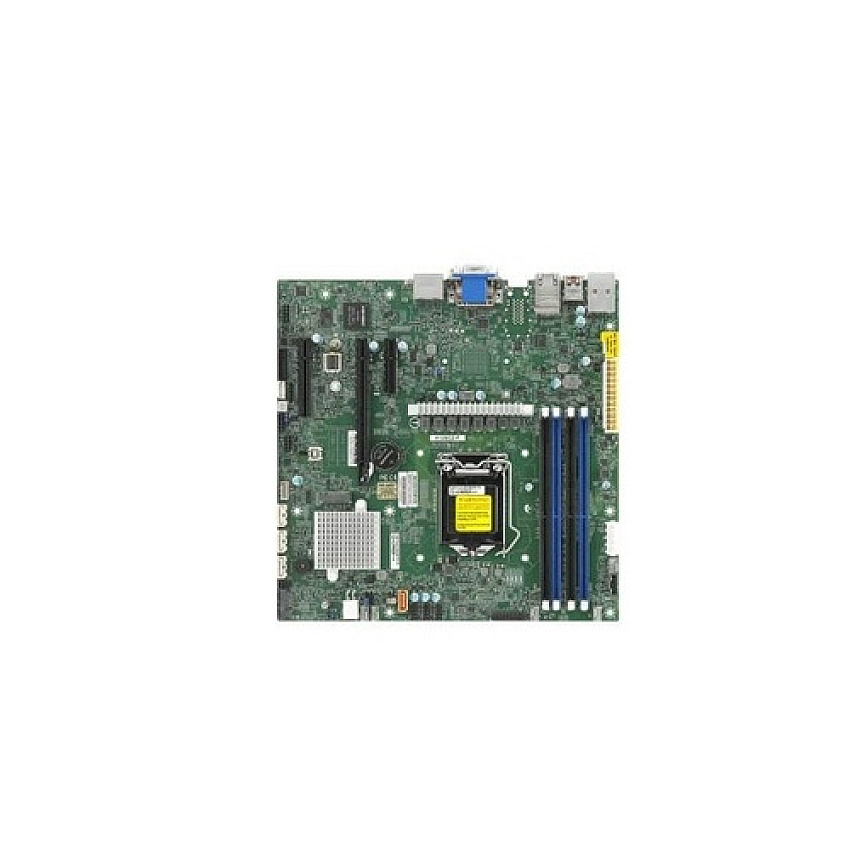

X12SCZ-QF Motherboard
-
Out Of Stock
Product Description
Socket H5 / LGA 1200-1 ( to TDP 125W ) CPU(s) Max.-Intel Q470 Chipset-4 RAM Slots-Max. 128GB DDR4 Non-ECC-Aspeed AST2500 Graphics-1x DVI-D Ports-1x VGA Ports-2x DisplayPort Ports-1x PCIeX16 Slots-2 ( 1 in x8Slot)x PCIeX4 Slots-4x SATA 6.0Gbps-RAID
Product Specs
Manufacturer
Supermicro ComputerManufacturer Stock No.
MBDX12SCZQFOMPN
SPMMBDX12SCZQFOModel#
MBDX12SCZQFOUNSPSC Code
0Information
Model: X12SCZ-QFMainboard Form Factor: Micro ATX
Mainboard / Chipset Type: Intel Q470E
Compatible Processors: 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Processor / Max Supported Qty: 1
Processor / Socket Type: LGA1200
RAM / Technology: DDR4
Data Integrity Check: Non-ECC
RAM / Max Supported Size: Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz GB
Audio Output: 1x ALC 888S HD Audio port(s)ALC 888S HD Audio
Networking Type: Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT
Expansion Slots Total (Free): PCI-E
1 PCIe 3.0 x4,
1 PCIe 3.0 x16,
1 PCIe 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 CNVi/PCIe 3.0 x1
Form Factor: 2280/22110, 2230
Key: M-Key, E-Key
Interfaces & Connections: SATA
4 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header)
6 USB 2.0 port(s) (6 via header)
Video Output
1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
1 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header & Chip both
Width: 9.6 Inch
Depth: 9.6 Inch
Features: UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
RoHS: Y
COO: TAIWAN
Unit of Measure
Item Weight
5Ships via UPS
NBrand
Supermicro Computer
$330.68
$396.81
