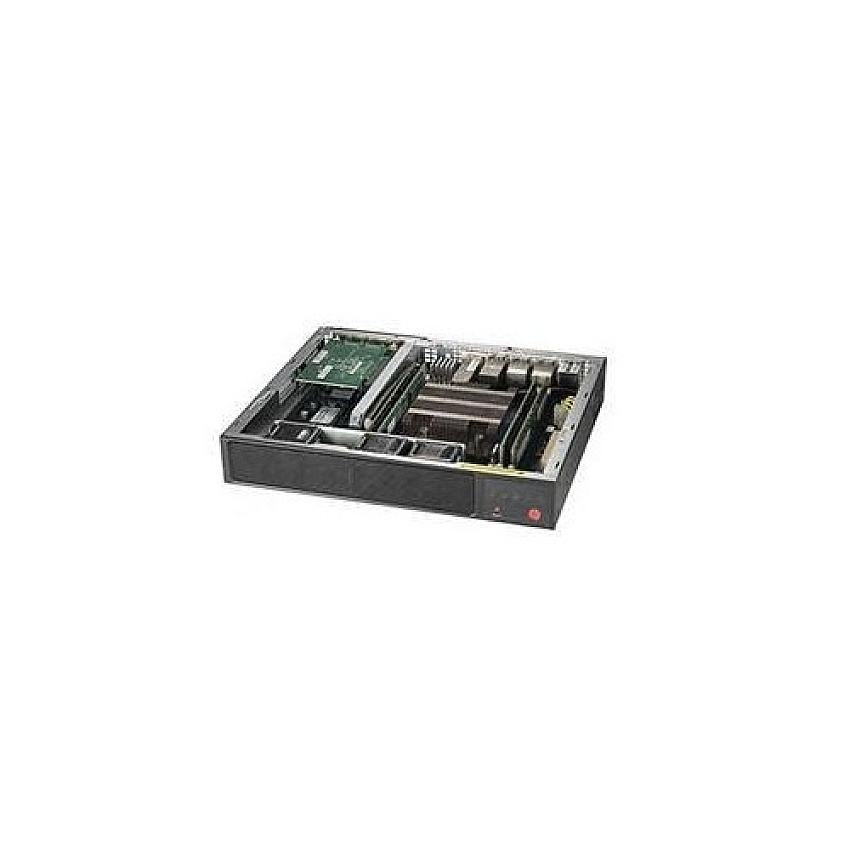

Supermicro Computer X11sdv-8c-tp8f, E300 +150w Power Adapter (E3009D8CN8TP)
Supermicro Computer X11sdv-8c-tp8f, E300 +150w Power Adapter (E3009D8CN8TP)
-
X11SDV-8C-TP8F, E300 +150W power adapter
-
Out Of Stock
Product Description
Super Server-Intel, Skylake D, X11SDV-8C-TP8F, E300 + 150W power adapter, Black
Product Specs
Manufacturer
Supermicro ComputerManufacturer Stock No.
E300-9D-8CN8TPMPN
SPME3009D8CN8TPModel#
E3009D8CN8TPUNSPSC Code
0Information
Product Description: Supermicro SuperServer E300-9D-8CN8TP - Mini-ITX Box PC - Xeon D-2146NT - 0 GB - no HDDType: Server - Mini-ITX Box PC
Height (Rack Units): 1U
Server Scalability: 1-way
Processor: 1 x Intel Xeon D-2146NT (8-core)
RAM: 0 GB (installed) / 512 GB (max) - DDR4 SDRAM
Storage Controller: RAID (SATA 6Gb/s); NVMe
Hard Drive: No HDD
Optical Storage: No optical drive
Graphics Controller: ASPEED AST2500
Networking: 1GbE, 10GbE
OS Provided: No operating system
Color: Black
Dimensions (WxDxH): 10 in x 8.9 in x 1.7 in
Weight: 3.44 lbs
Manufacturer Warranty: Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year
Type: Server
Product Form Factor: Mini-ITX Box PC - 1U
Server Scalability: 1-way
Color: Black
CPU: Intel Xeon D-2146NT
Number of Cores: 8-core
CPU Qty: 1
Max CPU Qty: 1
Installed Size: 0 GB / 512 GB (max)
Technology: DDR4 SDRAM
Form Factor: DIMM 288-pin
Slots: 4 (total) / 4 (empty)
Features: Registered, Load-Reduced DIMM (LRDIMM)
RAM Supported: 512 GB Load-Reduced - ECC ¦ 256 GB registered - ECC ¦ 256 GB registered - non-ECC
Type: No HDD
Type: 1 x RAID
Controller Interface Type: SATA 6Gb/s
Channel Qty: 4
RAID Level: RAID 0, RAID 1, RAID 5, RAID 10
Type: 1 x NVMe
Type: No optical drive
Monitor Type: None.
Graphics Processor: ASPEED AST2500
Video Interfaces: VGA
Ethernet Ports: 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet, 2 x SFP+
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol: IPMI 2.0
Features: KVM over IP support
Bays: 1 (total) / 1 (free) x internal 2.5"
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card (Key B) ¦ 1 (total) / 1 (free) x Mini PCIe/mSATA
Interfaces: 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x LAN (10Gigabit Ethernet) (SFP+) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.0 ¦ 1 x VGA
Compliant Standards: RoHS, ACPI 5.0
Device Type: Power adapter
Power Provided: 150 Watt
Power Factor Correction: Yes
OS Provided: No operating system
Service & Support: Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year
Width: 10 in
Depth: 8.9 in
Height: 1.7 in
Weight: 3.44 lbs
Shipping Width: 15 in
Shipping Depth: 5.6 in
Shipping Height: 10.9 in
Shipping Weight: 7.5 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 8 - 90% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
7.5Ships via UPS
NBrand
Supermicro Computer
