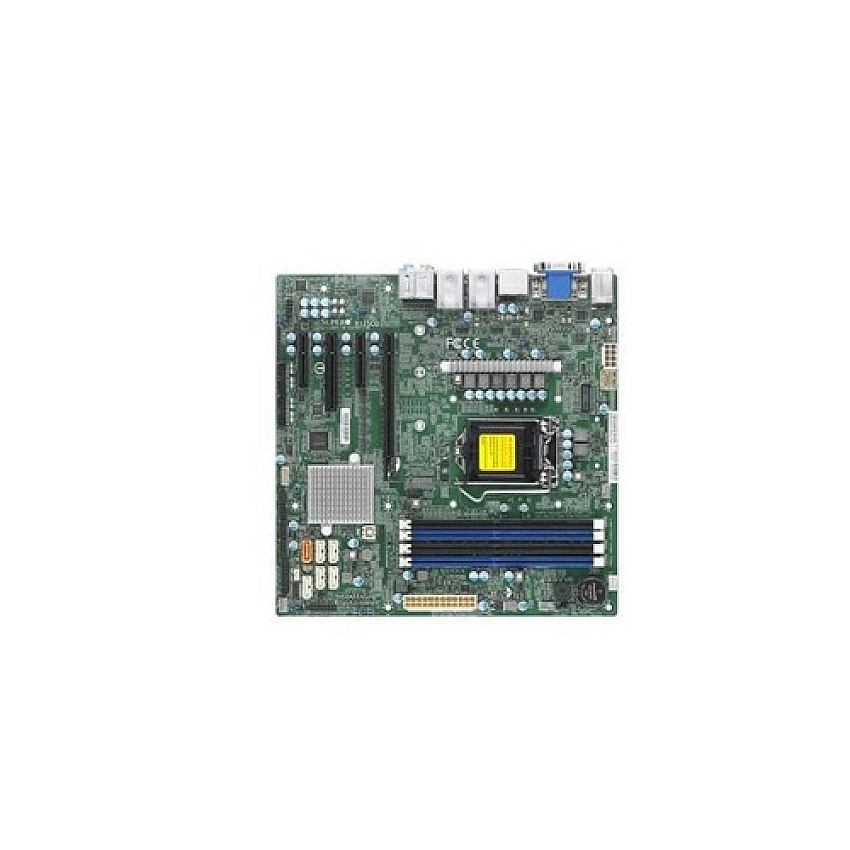

Supermicro Computer Mother Board-intel, X12scq,micro Atx,comet Lake-s,q470,lga1200 Single (MBDX12SCQO)
Supermicro Computer Mother Board-intel, X12scq,micro Atx,comet Lake-s,q470,lga1200 Single (MBDX12SCQO)
-
Mother Board-Intel, X12SCQ,Micro ATX,Comet Lake-S,Q470,LGA1200 Single
-
Out Of Stock
Product Description
Mother Board-Intel, X12SCQ,Micro ATX,Comet Lake-S,Q470,LGA1200 Single
Product Specs
Manufacturer
Supermicro ComputerManufacturer Stock No.
MBD-X12SCQ-OMPN
SPMMBDX12SCQOModel#
MBDX12SCQOUNSPSC Code
0Information
Model: X12SCQWidth: 9.6 Inch
Depth: 9.6 Inch
Mainboard Form Factor: Micro ATX
Mainboard / Chipset Type: Intel Q470E
Compatible Processors: 10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Audio Output: 1x ALC 888S HD Audio port(s)ALC 888S HD Audio
Networking Type: Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT
Features: RoHS
M.2 NGFF connector
Chassis intrusion detection
ATX Power connector
ACPI power management
Processor / Max Supported Qty: 1
Processor / Socket Type: LGA1200
RAM / Technology: DDR4
Data Integrity Check: Non-ECC
RAM / Max Supported Size: Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
GB
Expansion Slots Total (Free): PCI-E
2 PCIe 3.0 x4,
1 PCIe 3.0 x16 (in x16 slot),
1 PCIe 3.0 x8
M.2
M.2 Interface: 1 PCIe 3.0 x4, RAID 0 & 1
Form Factor: 2242/2280
Key: M-Key
Interfaces & Connections: SATA
6 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 3.1 Gen2 port(s) (2 via header; 2 rear type A; 2 rear type C)
6 USB 2.0 port(s) (4 via header; 2 rear)
Video Output
1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Serial Port
4 COM Port(s) (4 header)
TPM
1 TPM Header & Chip both
RoHS: Y
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
3.5Ships via UPS
NBrand
Supermicro Computer
