Supermicro Computer Mbd-x10sdv-7tp4f-o (MBDX10SDV7TP4FO)
Supermicro Computer Mbd-x10sdv-7tp4f-o (MBDX10SDV7TP4FO)
-
MBD-X10SDV-7TP4F-O
-
Out Of Stock
Product Description

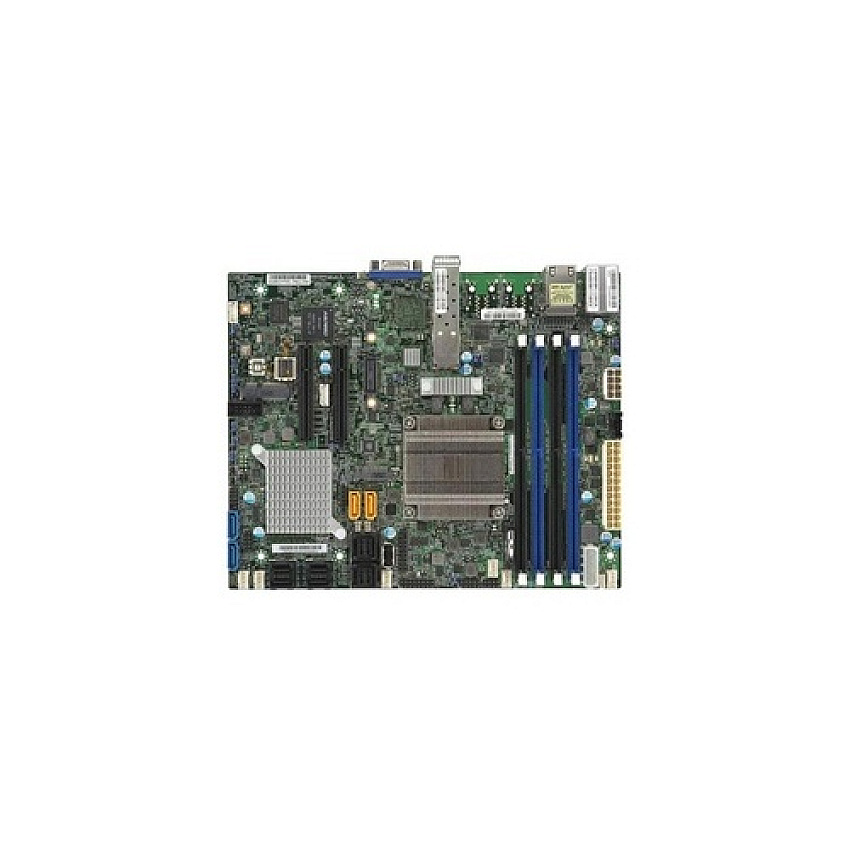

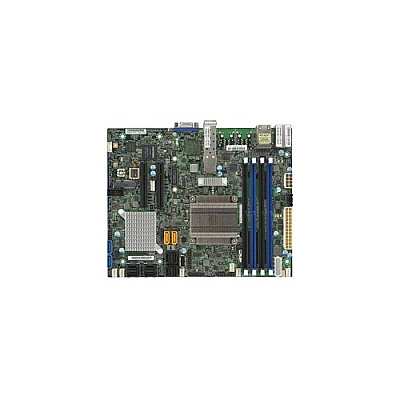

Mother Board-Intel, MBD-X10SDV-7TP4F-SINGLE, Single
Product Specs
Manufacturer
Supermicro ComputerManufacturer Stock No.
MBD-X10SDV-7TP4F-OMPN
SPMMBDX10SDV7TP4FOModel#
MBDX10SDV7TP4FOUPC Code
672042224166UNSPSC Code
0Information
Model: MBD-X10SDV-7TP4FWidth: 9.0 Inch
Depth: 7.25 Inch
Mainboard Form Factor: FlexATX
Mainboard / Chipset Type: System on Chip
Compatible Processors: Intel Xeon Processor D-1537.
Networking Type: Gigabit Ethernet
Features: 2 SuperDOM, 1 COM, TPM 2.0 header,GPIO and SMbus headers;
12V DC Input and ATX Power Source;
16 SAS2/SATA3 (6Gbps) ports via Broadcom 2116
Processor / Socket Type: FCBGA1667
RAM / Technology: DDR4
RAM / Max Supported Size: Up to 128GB Registered ECC RDIMM, DDR4-2133MHz;
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots GB
Controller Interface Type: SATA III
Expansion Slots Total (Free): 2 PCI-E 3.0 x8; M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support; 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110
Interfaces & Connections: 5 USB 2.0 ports (4 headers, 1 Type A);
2 USB 3.0 ports (2 rear);
2 10G SFP+ LAN ports;
2 1GbE LAN ports;
1 RJ45 Dedicated IPMI LAN port;
1 VGA port;
1 COM Port (1 header);
4 SATA3 (6Gbps) port
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
2.6Ships via UPS
YBrand
Supermicro Computer
