StarTech 2port Pcie Rs232 Serial Db9 Adapter Card (PEX2S953LP)
StarTech 2port Pcie Rs232 Serial Db9 Adapter Card (PEX2S953LP)
-

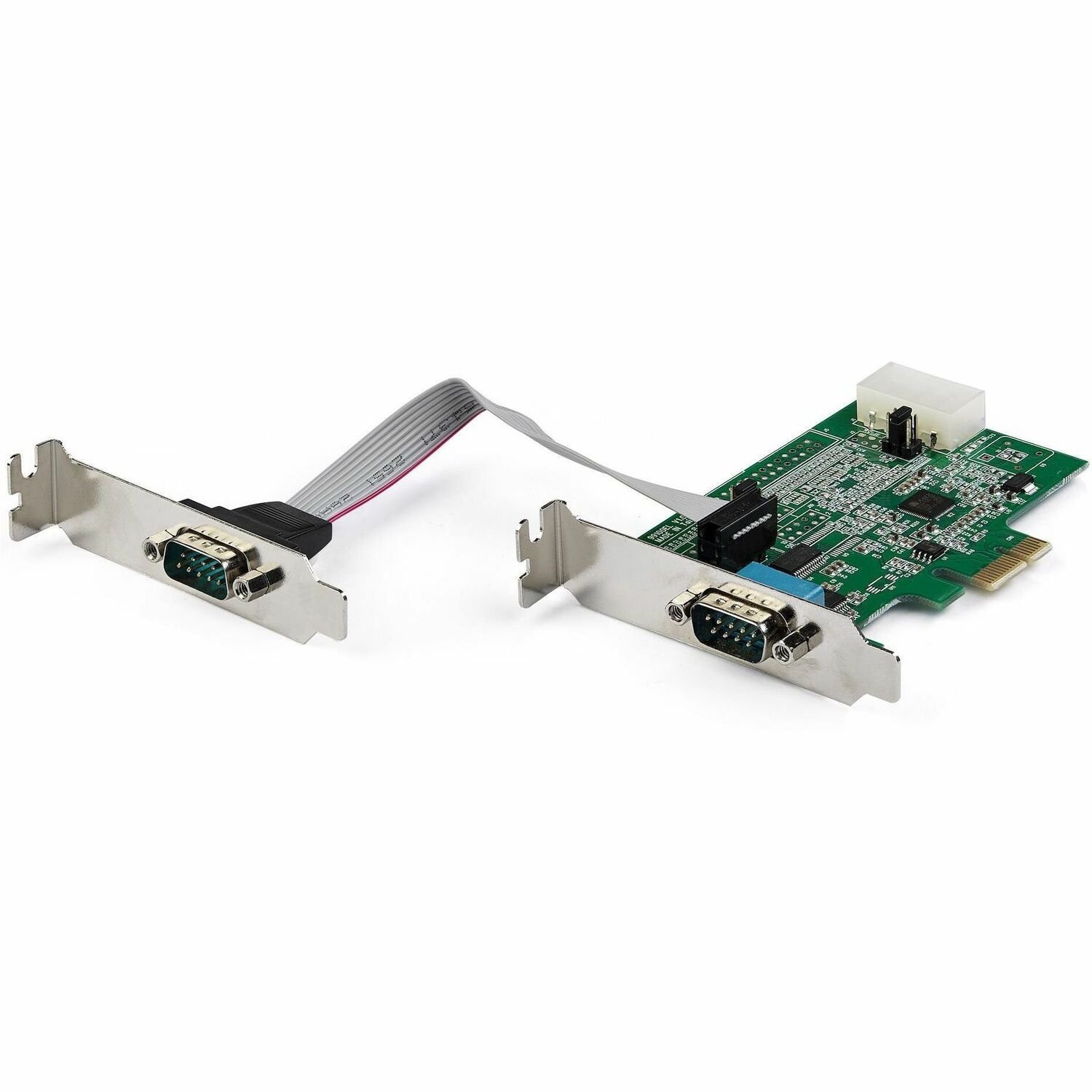

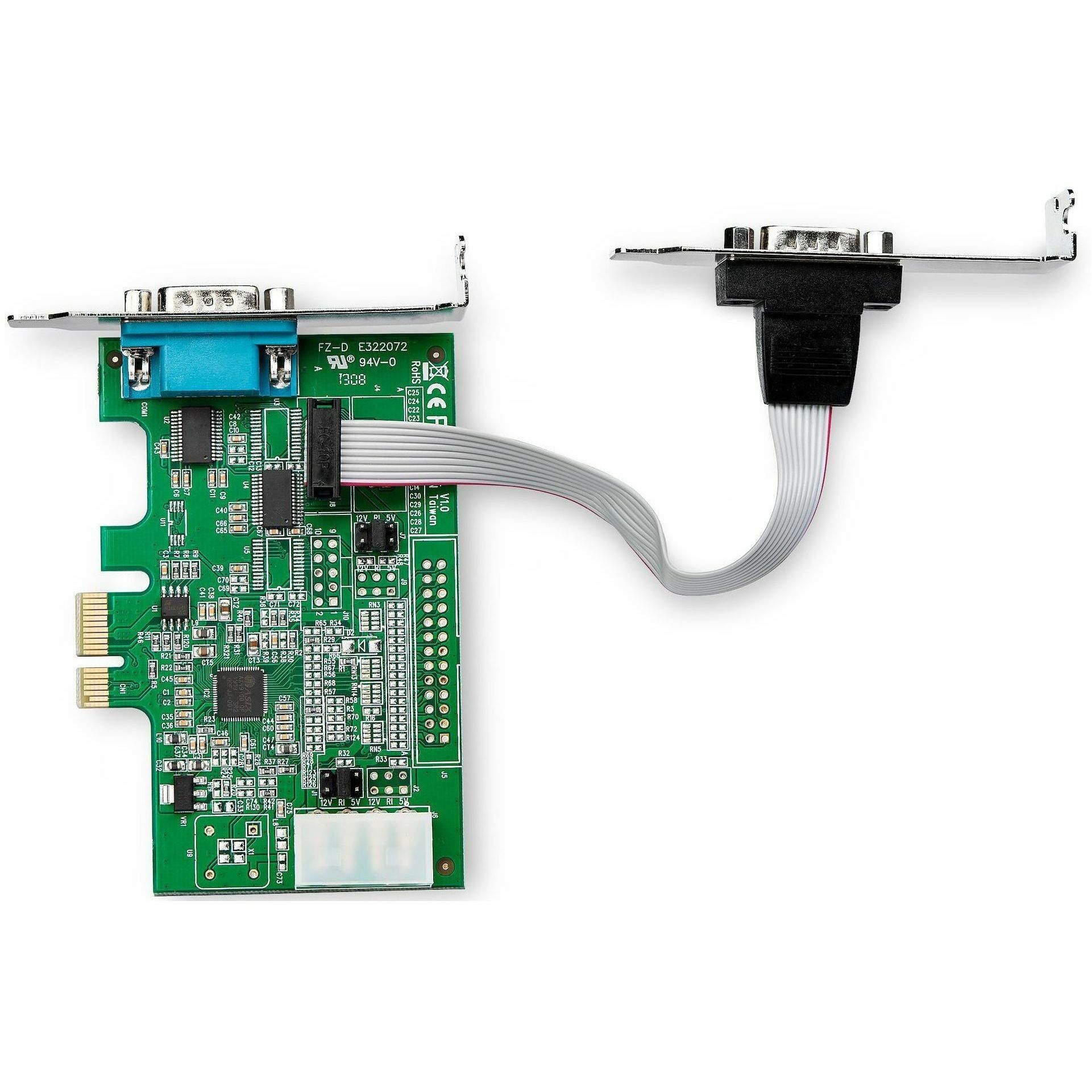

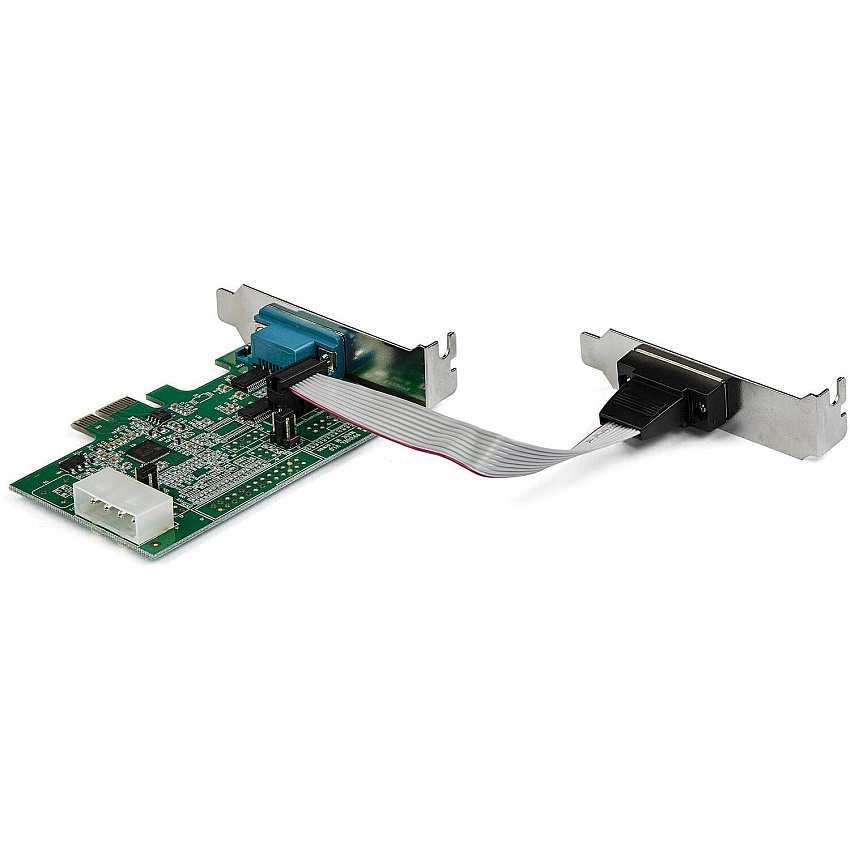

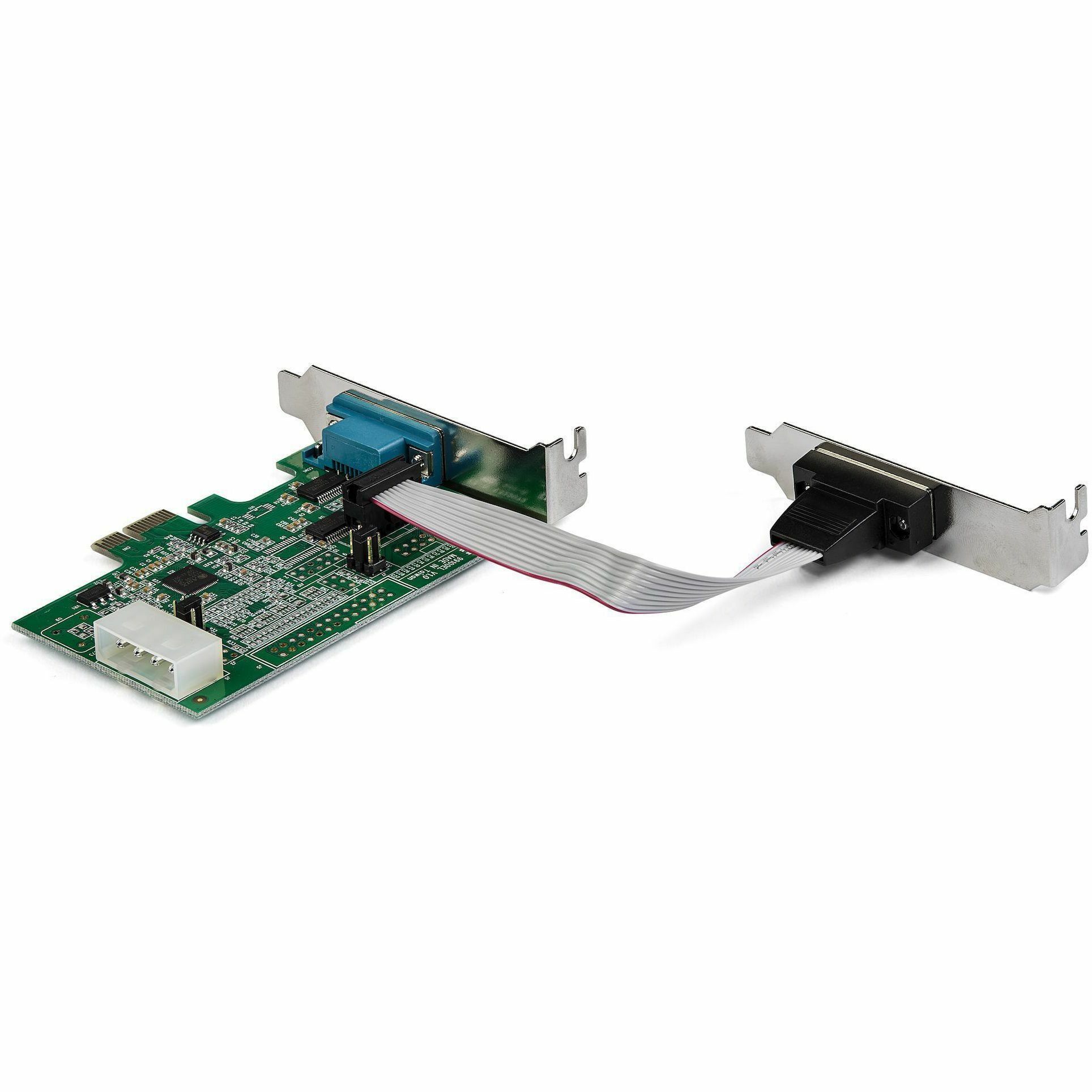

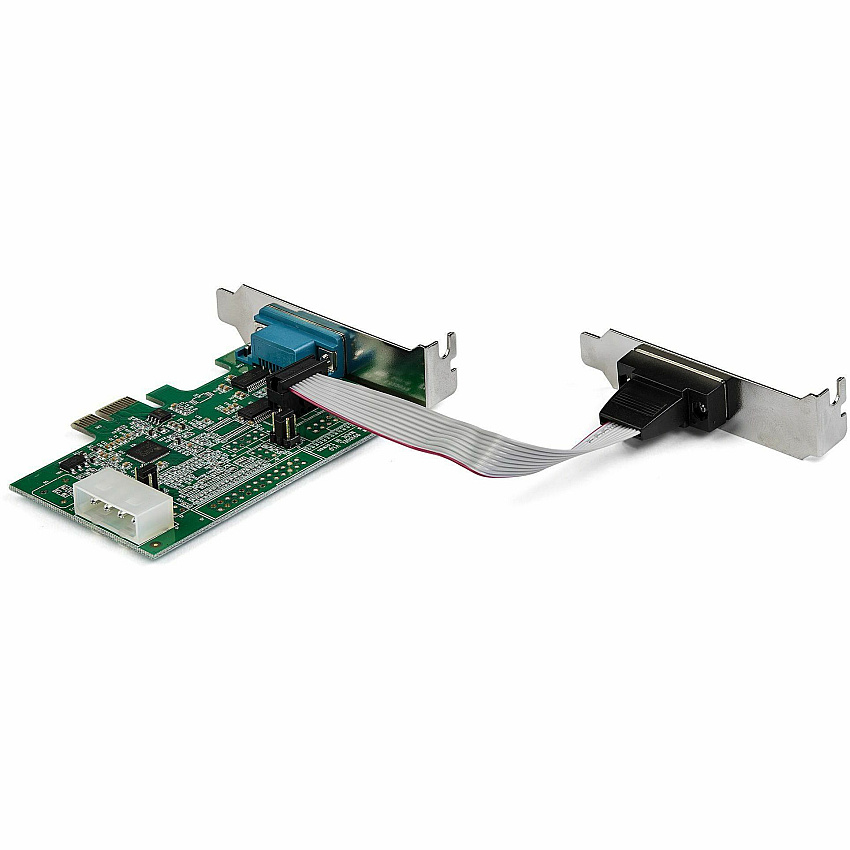

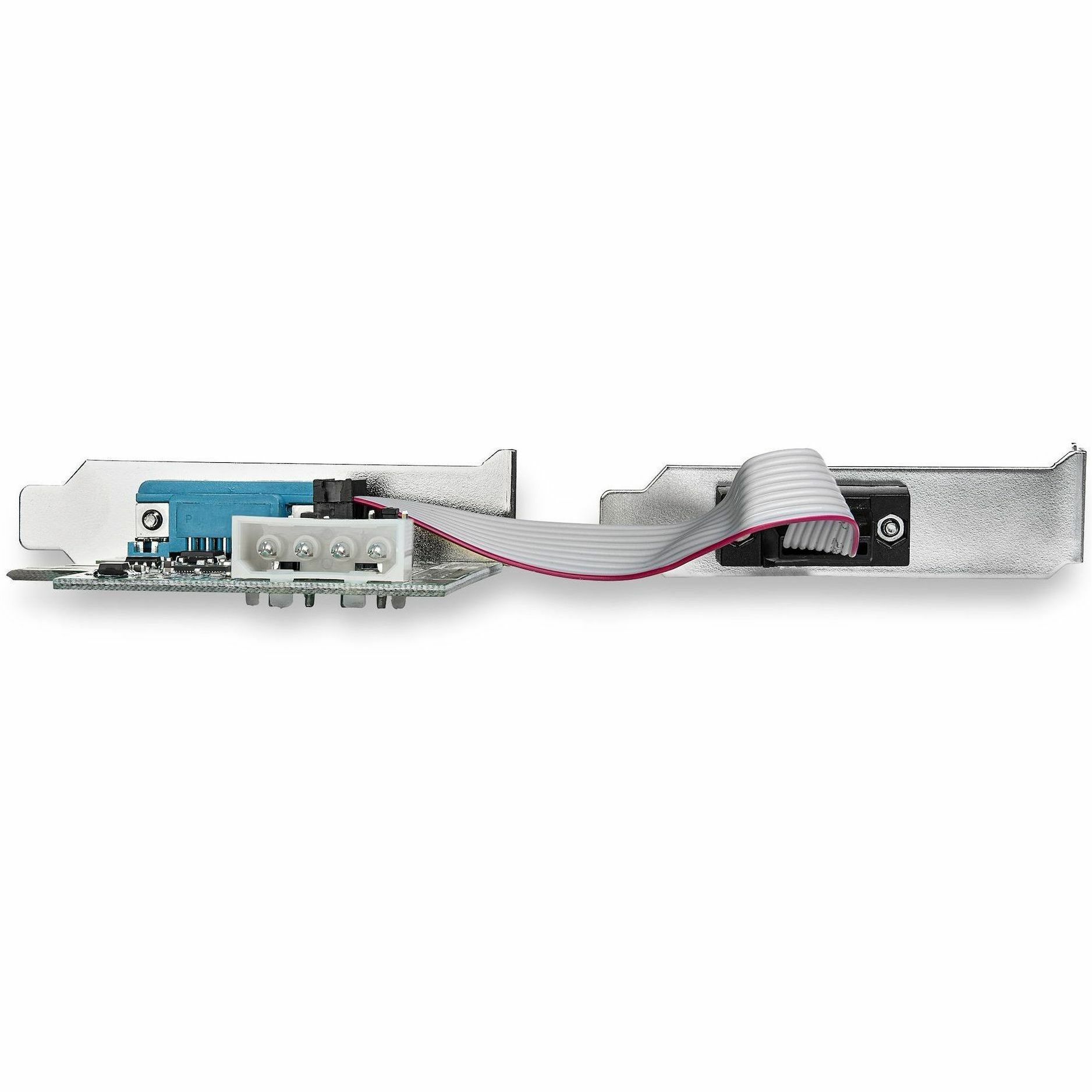

2Port PCIe RS232 Serial DB9 Adapter Card
-
In Stock
Product Description
2-port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port / 256 byte FIFO / 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/low profile bracket (Std incl) - Win/Linux
Product Specs
Manufacturer
StarTechCategories
StarTech Computer AccessoriesStarTech Networking, Cables & AccessoriesStarTech Network AdaptersManufacturer Stock No.
PEX2S953LPMPN
STAPEX2S953LPModel#
PEX2S953LPUPC Code
065030881166UNSPSC Code
0Information
Product Description: StarTech.com 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Ports, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX2S953LP) - serial adapter - PCIe - RS-232 x 2Device Type: Serial adapter
Form Factor: Plug-in card - low profile
Interface (Bus) Type: PCI Express x1
PCI Specification Revision: PCIe 1.1
Ports: RS-232 x 2
Dimensions (WxDxH): 2.6 in x 3.9 in x 0.7 in
Weight: 1.96 oz
Data Link Protocol: RS-232
Data Transfer Rate: 921.6 Kbps
Processor: ASIX AX99100
System Requirements: Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x
Manufacturer Warranty: Limited lifetime warranty
Device Type: Serial adapter
Form Factor: Plug-in card - low profile
Interface (Bus) Type: PCI Express x1
PCI Specification Revision: PCIe 1.1
Ports: RS-232 x 2
Connectivity Technology: Wired
Data Link Protocol: RS-232
Data Transfer Rate: 921.6 Kbps
Features: Full duplex mode, 256-byte FIFO
Processor: ASIX AX99100

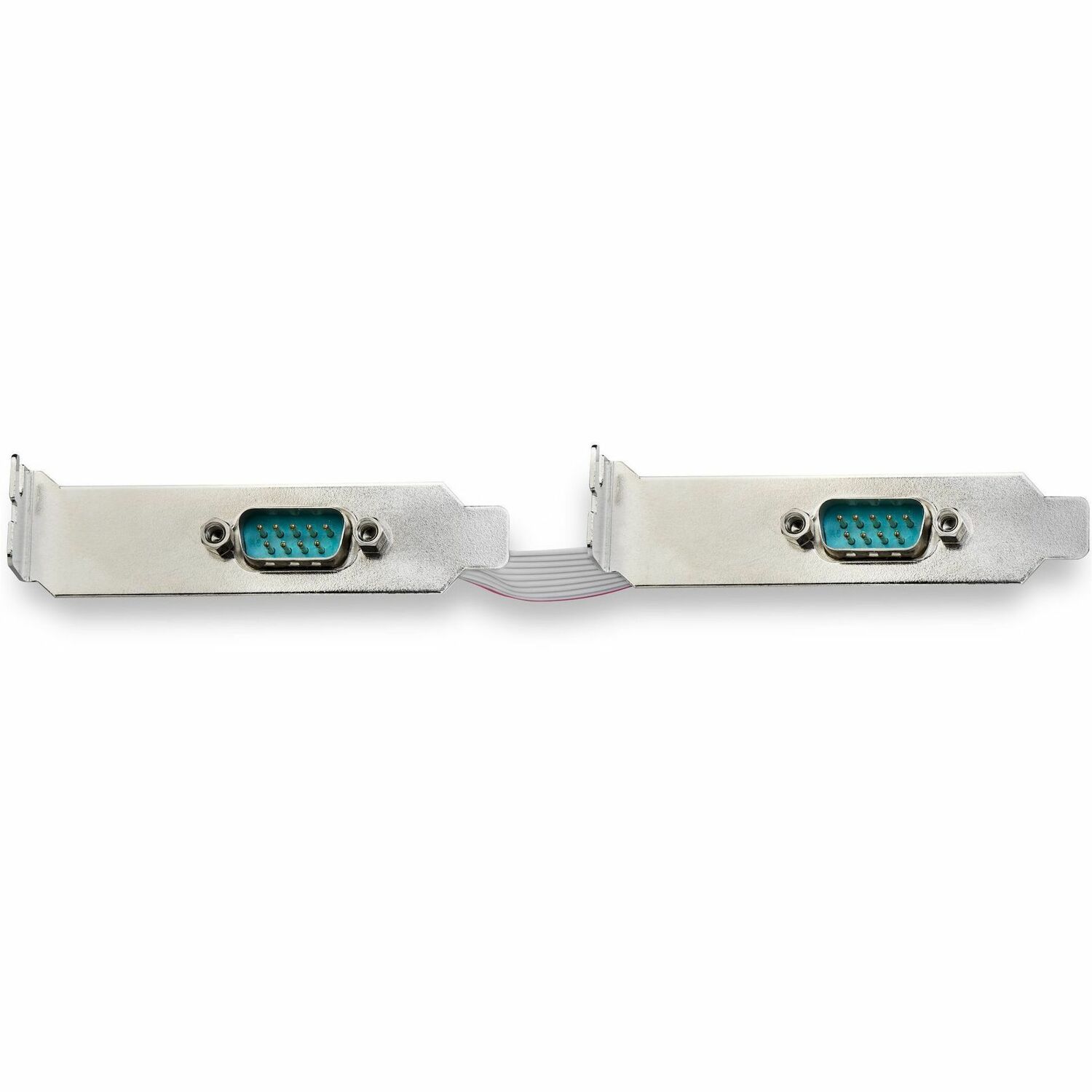

Interfaces: 2 x RS-232 - 9 pin D-Sub (DB-9)

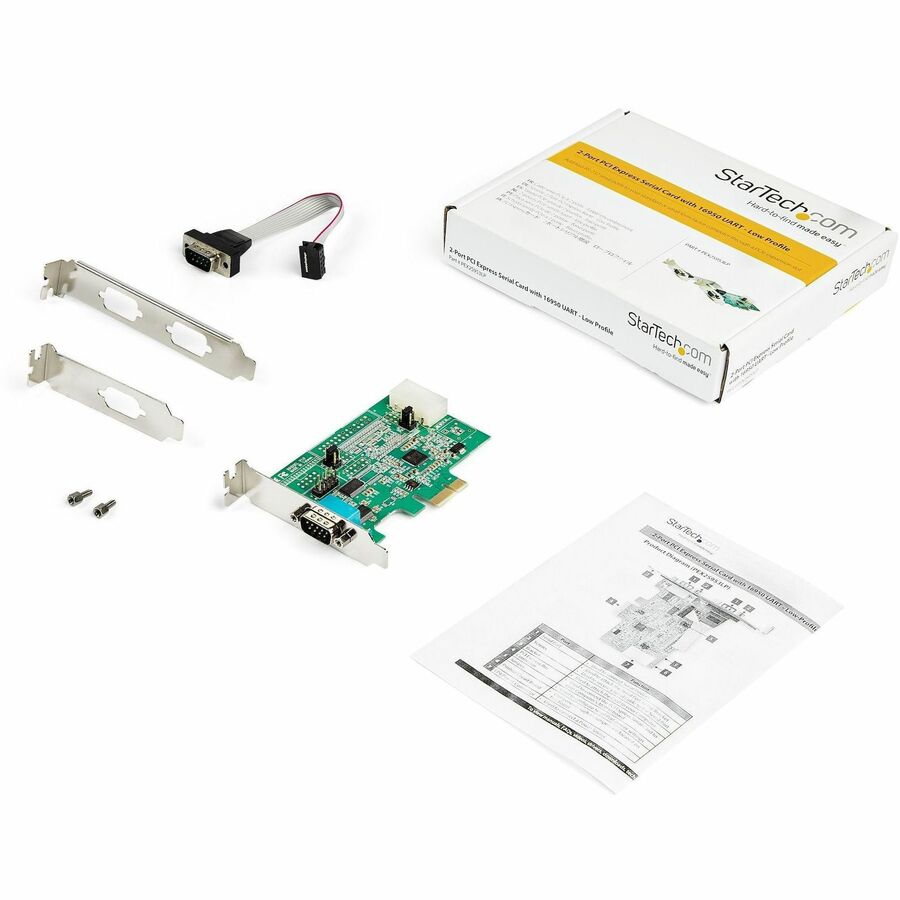

Included Accessories: Full-height bracket
Compliant Standards: WHQL, FCC, RoHS, WEEE
OS Required: Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x
Width: 2.6 in
Depth: 3.9 in
Height: 0.7 in
Weight: 1.96 oz
Shipping Weight: 5.16 oz
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 14 °F
Max Operating Temperature: 176 °F
Humidity Range Operating: 5 - 85%
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
0.31Ships via UPS
YBrand
StarTech
