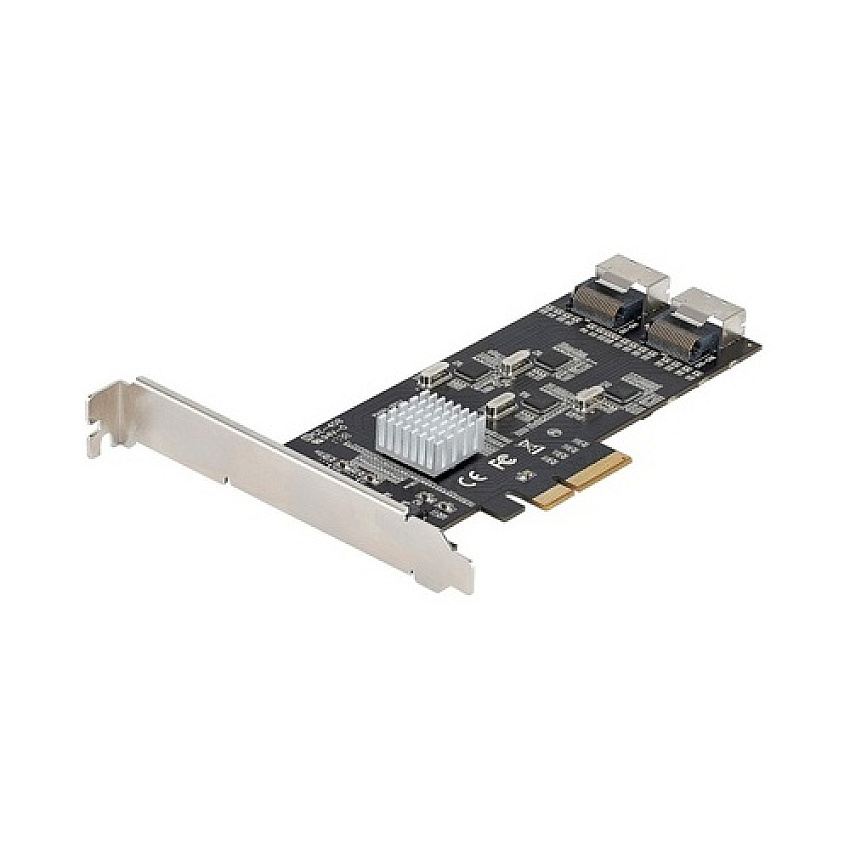

StarTech 8 Port 6gbps Sata Pcie Card Controller (8P6GPCIESATACARD)
StarTech 8 Port 6gbps Sata Pcie Card Controller (8P6GPCIESATACARD)
-
8 Port 6Gbps SATA PCIe Card Controller
-
In Stock
Product Description
SATA III 6Gbps PCIe x4 Gen 2 card - PCIe SATA expansion card has 2x Mini-SAS ports with Mini-SAS to 4x SATA adapter cables - 8-Port SATA PCIe Card w/ PCI Express MUX and 4 SATA controllers for max 16Gbps total - Windows/macOS/Linux - Full/low-profile
Product Specs
Manufacturer
StarTechManufacturer Stock No.
8P6G-PCIE-SATA-CARDMPN
STA8P6GPCIESATACARDModel#
8P6GPCIESATACARDUPC Code
065030893275UNSPSC Code
0Information
Product Description: StarTech.com 8 Port SATA PCIe Card, PCI Express 6Gbps SATA Expansion Card with 4 Host Controllers, SATA PCIe Controller Card, PCI-e x4 Gen 2 to SATA III Adapter Card, Drive Cables Incl. - Windows/macOS/Linux (8P6G-PCIE-SATA-CARD) - storage controller - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x4Device Type: Storage controller - plug-in card - low profile
Bus Type: PCIe 2.0 x4
Color: Black
Interface: SATA 6Gb/s / SAS 6Gb/s
Data Transfer Rate: 6 Gbit/s
Supported Devices: Hard drive, solid state drive
Max Storage Devices Qty: 8
System Requirements: Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Apple MacOS X 10.6 - 10.11, Microsoft Windows Server 2016, Linux 2.6.32 or later, Microsoft Windows Server 2019
Dimensions (WxDxH): 0.6 in x 5.9 in x 2.7 in
Weight: 2.65 oz
Manufacturer Warranty: 2-year warranty
Device Type: Storage controller - plug-in card - low profile
Host Bus: PCIe 2.0 x4
Color: Black
Interface: SATA 6Gb/s / SAS 6Gb/s
Data Transfer Rate: 6 Gbit/s
Supported Devices: Hard drive, solid state drive
Max Storage Devices Qty: 8
Interfaces: 2 x SATA 6Gb/s / SAS 6Gb/s - Mini SAS (SFF-8087) (internal)
Included Accessories: Low-profile bracket
Cables Included: 2 x mini SAS HD to 4 x SATA HDD cable - external - 1.6 ft
Features: S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, ATAPI support
Compliant Standards: RoHS
OS Required: Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Apple MacOS X 10.6 - 10.11, Microsoft Windows Server 2016, Linux 2.6.32 or later, Microsoft Windows Server 2019
Service & Support: Limited warranty - 2 years
Width: 0.6 in
Depth: 5.9 in
Height: 2.7 in
Weight: 2.65 oz
Shipping Width: 6.7 in
Shipping Depth: 5.6 in
Shipping Height: 1.2 in
Shipping Weight: 2.86 oz
Min Operating Temperature: 41 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 20 - 80%
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
0.5Ships via UPS
YBrand
StarTech
