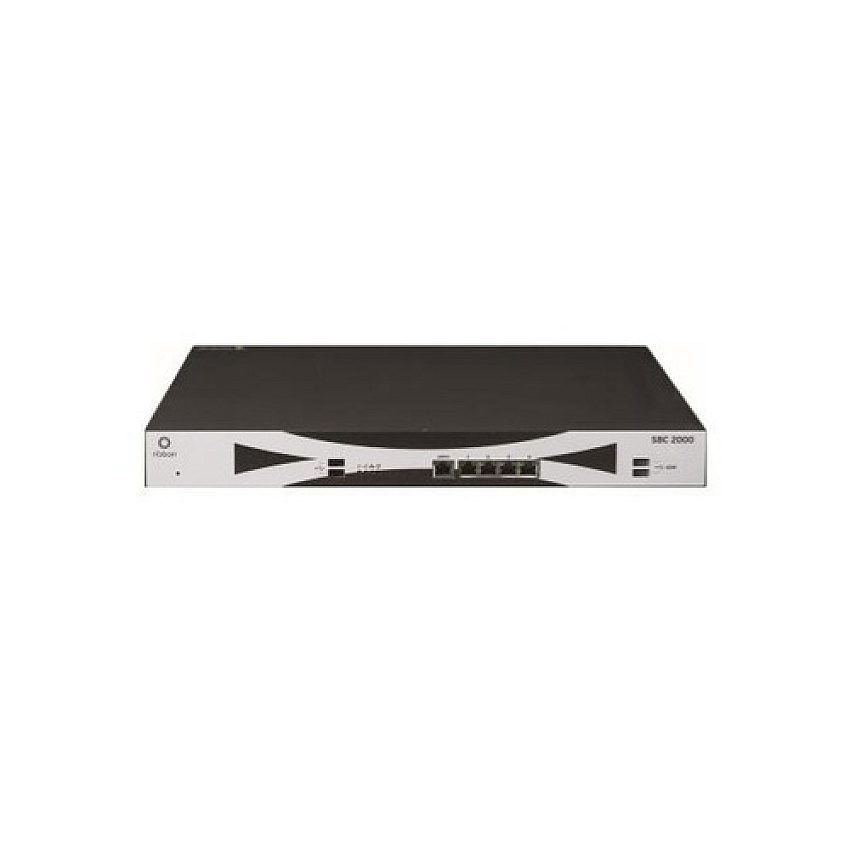

Rittal Revised Sbc 2000 W/ 2 Dsps. Sip:sip (SBC2KR2)
Rittal Revised Sbc 2000 W/ 2 Dsps. Sip:sip (SBC2KR2)
-
REVISED SBC 2000 W/ 2 DSPS. SIP:SIP
-
Special order arrives within 3-7 weeks.
Product Description
REVISED SBC 2000 W/ 2 DSPS. SIP:SIP LICENSABLE- TLS (Transaction Layer Security) for signaling encryption - TLS 1.2 (RFC 5246) - SIP (RFC 3261) over UDP, TCP, TLS
Product Specs
Manufacturer
RittalManufacturer Stock No.
SBC-2K-R-2MPN
SONSBC2KR2Model#
SBC2KR2UNSPSC Code
0Information
Product Description: Sonus SBC 2000 - VoIP gateway - with 2 DSP modulesDevice Type: VoIP gateway
Form Factor: External - 1U
Processor: 1 x Intel Pentium 2.2 GHz
RAM: 8 GB
Hard Drive: 256 GB x 1
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Performance: Maximum call setup rate: 4 calls per second
Capacity: Maximum number of concurrent calls: 600 ¦ Maximum number TDM to SIP calls: 480 ¦ Maximum number SIP to SIP calls: 600 ¦ Maximum number of transcoded sessions: 600 ¦ Maximum number of registered users: 1000 ¦ Maximum number of TLS sessions: 600 ¦ Maximum number of SRTP sessions: 600 ¦ SIP signalling sessions: 100 ¦ Maximum number of call route entries: 15000
VoIP Protocols: SIP, RTCP, RTP, SRTP
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 17.5 in x 21 in x 1.7 in
Bundled with: 2 DSP modules
Device Type: VoIP gateway
Height (Rack Units): 1U
Width: 17.5 in
Depth: 21 in
Height: 1.7 in
Bundled with: 2 DSP modules
Processors Installed: 1 x Intel Pentium 2.2 GHz
Max Supported Qty: 1
RAM: 8 GB DDR4 SDRAM
Hard Drive: SSD 256 GB x 1
Form Factor: External
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol: TCP/IP, UDP/IP, NTP, IPSec, DHCP, DNS, RTP, RTCP
Routing Protocol: OSPF, RIP
Remote Management Protocol: SNMP 2c, HTTPS
Performance: Maximum call setup rate: 4 calls per second
Capacity: Maximum number of concurrent calls: 600 ¦ Maximum number TDM to SIP calls: 480 ¦ Maximum number SIP to SIP calls: 600 ¦ Maximum number of transcoded sessions: 600 ¦ Maximum number of registered users: 1000 ¦ Maximum number of TLS sessions: 600 ¦ Maximum number of SRTP sessions: 600 ¦ SIP signalling sessions: 100 ¦ Maximum number of call route entries: 15000
Status Indicators: Power, alarm, peer node, ready
Features: Firewall protection, NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, DoS attack prevention, DiffServ support, manageable, IPv6 support, DDos attack prevention, IPSec Virtual Private Network (VPN), Access Control List (ACL) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), DHCP server, port forwarding, bandwidth control, IPv4 support, DHCP client, optimized for Microsoft Lync, NTP time synchronization, Call Admission Control (CAC), DiffServ Code Point (DSCP) support
Encryption Algorithm: TLS
Authentication Method: RADIUS, LDAP, Active Directory
VoIP Protocols: SIP, RTCP, RTP, SRTP
Voice Codecs: G.711, G.722, G.723.1, G.729ab, G.726, T.38, G.722.2
IP Telephony Features: Comfort noise generation (CNG), voice activity detection (VAD), echo cancellation (G.168), call forwarding, caller ID, call hold, call transfer, DTMF generation/detection, Calling Line Identification Presentation (CLIP), Dialed Number Identification Service (DNIS)
Interfaces: 2 x USB 2.0 - Type A ¦ 4 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 360 Watt
Min Operating Temperature: 41 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 85% (non-condensing)
COO: MEXICO
TAA compliance: Yes
Unit of Measure
Item Weight
41Ships via UPS
NBrand
Rittal
$1,654.00
$1,985.00
$177.76
$213.31
$90.10
$108.14
$5,399.46
$6,479.35
$277.75
$333.30
$359.34
$431.21
