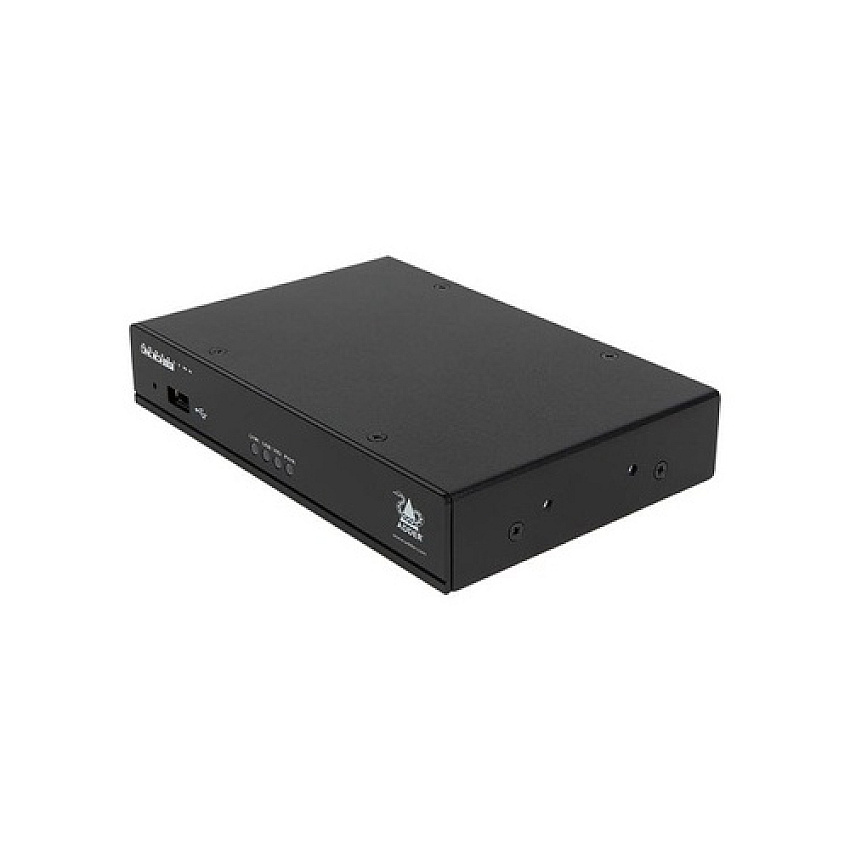

Sole Source Ncnr Xdip-red Adder Single Link (XDIPREDSS)
Sole Source Ncnr Xdip-red Adder Single Link (XDIPREDSS)
-
NCNR XDIP-RED Adder Single Link
-
Out Of Stock
Product Description
NCNR XDIP-RED Adder Single Link HDMI & USB Extender over IP Red Pwer Cable
Product Specs
Manufacturer
Sole SourceManufacturer Stock No.
XDIP-RED-SSMPN
SOLXDIPREDSSModel#
XDIPREDSSUNSPSC Code
0Information
Device Type: KVM ExtenderInterfaces: USB 2.0; Audio 3.5mm; USB type A; USB type B
Connections: HDMI; VGA; DVI; DisplayPort
Max Resolution (external): 1920 x 1200 @ 60Hz
Data Link Protocol: Ethernet
Remote Management Protocol: HTTPS
Features: Flexible and scalable: Each XDIP unit can be configured as a simple extender, distributed KVM switch or for AV distribution. Each receiver can see up to 16 sources and each transmitter can connect to up to 256 receivers.
Configurable units: The XDIP user and computer units are identical and can be configured as a transmitter or receiver. This means the solution can be built to suit the application, and should the application change, units can be re-configured to suit.
High quality video: The XDIP supports video resolutions of up to 1920 x 1200 @ 60Hz.
Power over Ethernet (PoE): Compatible with most PoE switches, the XDIP can be easily installed without the need for additional power. Many PoE switches offer redundant power options which the XDIP can leverage for enhanced reliability.
Remote control: Users can remotely control their XDIP network via a RESTful API or HTTPS web browser. By managing the receiver end points through an API, users can control the matrix. The XDIP is designed to work with any third party controller via HTTPS.
Extension distance: Extension distance is linked to the IP standard of 100m with a 40% overhead for safety. Longer distances can be achieved by routing through IP infrastructure.
Audio capability: XDIP delivers bi-directional analog audio (16-bit sampling at 48kHz) passed between the local and remote units. Headphones are also supported (16 to 32 Ohms).
Plug and Play: The XDIP is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected. A simple setup wizard guides the user through set up when the device is connected.
COO: CHINA
Unit of Measure
Item Weight
2Ships via UPS
NBrand
Sole Source
