SIIG Hdmi Over Ip Extender With Ir - Kit (CEH23A11S2)
SIIG Hdmi Over Ip Extender With Ir - Kit (CEH23A11S2)
-
HDMI Over IP Extender with IR - Kit
-
In Stock
Product Description
CE-H23A11-S2, Extends high definition 1080p HDMI signals from a source device to a display device through economical CAT5e/6 cabling up to 120 meters using advanced HDbitT over IP technology (TX: CE-H23B11-S2/ RX:CE-H23C11-S2
Product Specs
Manufacturer
SIIGManufacturer Stock No.
CE-H23A11-S2MPN
SIGCEH23A11S2Model#
CEH23A11S2UNSPSC Code
0Information
Product Description: SIIG Full HD HDMI Over IP Extender Kit - video/audio/infrared/serial extender - RS-232, HDMI, infrared, HDbitTDevice Type: Video/audio/infrared/serial extender
Form Factor: External
Data Link Protocol: RS-232, HDMI, infrared, HDbitT
Transmission Medium: CAT 5e/6/7
Max Transfer Distance: 394 ft
Power: AC 100-240 V
Manufacturer Warranty: 2-year warranty
Device Type: Video/audio/infrared/serial extender
Form Factor: External
Color: Black
Connectivity Technology: Wired
Data Link Protocol: RS-232, HDMI, infrared, HDbitT
Max Resolution: 1080p @ 60 Hz
Max Transfer Distance: 394 ft
Features: HDCP compliant, reset button, 720p resolution support, 1080p resolution support, 1080i resolution support, built-in H.264 encoder, switch button, HDMI loop out

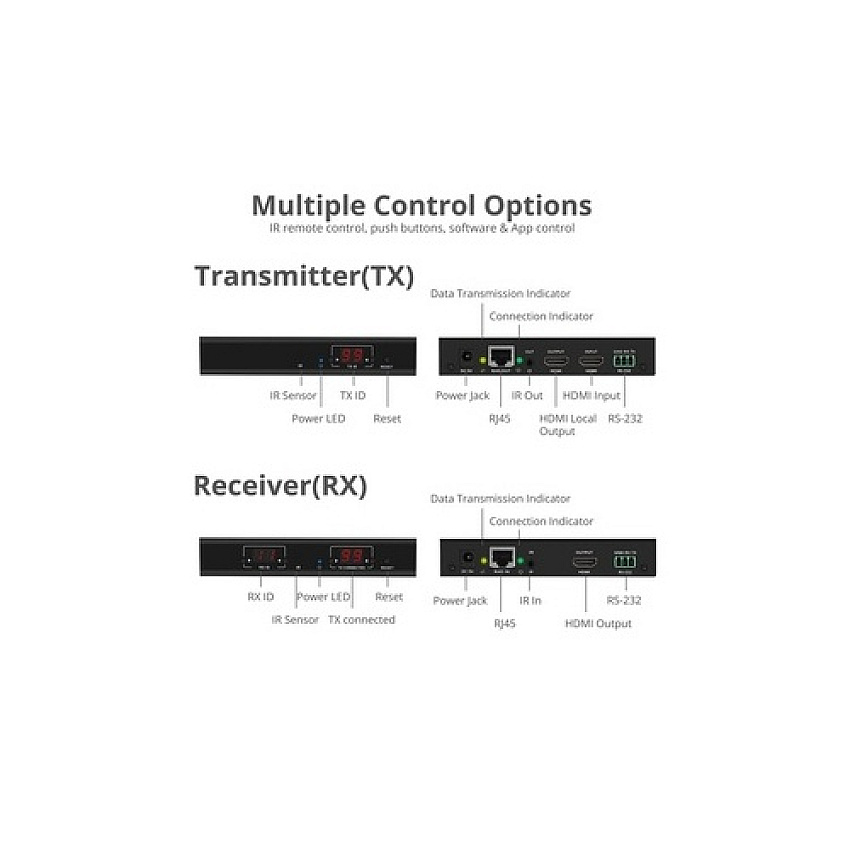

Interfaces: 1 x IR (transmitter) - mini jack ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x RS-232 (transmitter) - 3 pin terminal block ¦ 1 x IR (receiver) - mini jack ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x RS-232 (receiver) - 3 pin terminal block
Included Accessories: Remote control, 2 x 3-pin Phoenix connectors
Cables Included: 1 x IR emitter cable ¦ 1 x IR receiver cable
Compliant Standards: RoHS, REACH, HDCP 1.4
Power Device: External power adapter
Installed Qty: 2
Voltage Required: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH) / Weight Details: Transmitter: 5.3 in x 3.3 in x 0.9 in / 9.6 oz ¦ Receiver: 5.3 in x 3.3 in x 0.9 in / 9.6 oz
Shipping Width: 9.4 in
Shipping Depth: 3.1 in
Shipping Height: 6.9 in
Shipping Weight: 2.36 lbs
Service & Support: Limited warranty - 2 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 0 - 90% (non-condensing)
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
2.31Ships via UPS
YBrand
SIIG
