Shuttle Computer Shuttle Xpc Slim Dh470 Mini Barebone Pc (74R/DH470003SHU001)
Shuttle Computer Shuttle Xpc Slim Dh470 Mini Barebone Pc (74R/DH470003SHU001)
-

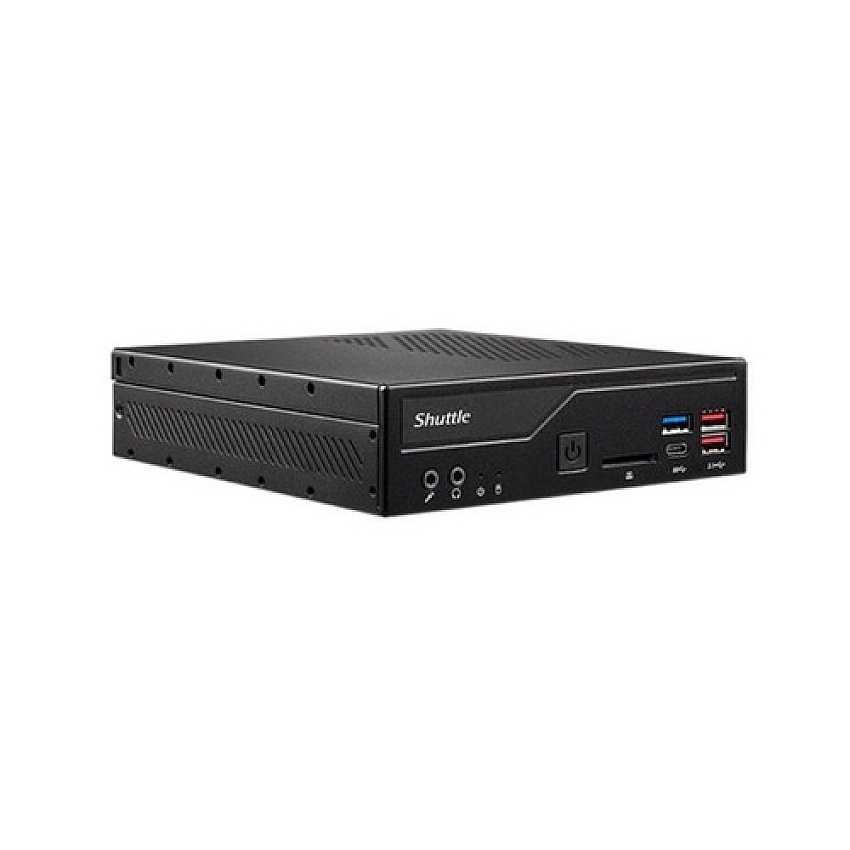

Shuttle XPC Slim DH470 Mini Barebone PC
-
Out Of Stock
Product Description
Shuttle XPC Slim DH470 Mini Barebone PC Intel H470 Support 65W Cometlake CPU No Ram No HDD/SSD No CPU No OS
Product Specs
Manufacturer
Shuttle ComputerManufacturer Stock No.
74R/DH470-003-SHU-001MPN
SHU74RDH470003SHU001Model#
74R/DH470003SHU001UNSPSC Code
0Information
System Type: Personal ComputerModel: DH470
Cabinet Form Factor: Mini PC
Mainboard / Chipset Type: Intel H470
RAM / Technology: DDR4 SODIMM
RAM / Total Slots Qty: 2
RAM Form Factor: SODIMM
RAM / Max Supported Size: 64
GB
Optical Storage Type: None
Audio Output: Realtek ALC662 High Definition Audio
Memory Card Reader: SD Card Reader
Video Output Type: HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
Video Output Interface: Display Port, HDMI
Speakers: No Speaker
Power / Device Type: Power Adapter
Power / Provided (W): 65 Watt
Power / Voltage Required: Input: 100- 240V AC
19V 4.74A DC
Interfaces & Connections: (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch
Front I/O Ports: (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader
Rear I/O Ports: (2) RJ45 Gigabit LAN port w/LED
(1) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5" HDD / SSD bay
Expansion Bays Total (Free): (1) 2.5" HDD / SSD bay
Expansion Slots Total (Free): (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
Width: 165 Mm
Depth: 190 Mm
Height: 43 Mm
Features: Form Factor: 1.3L chassis
RAM / Total Slots Qty: 2
RAM / Technology: DDR4 SODIMM
RAM Form Factor: SODIMM
RAM / Max Supported Size: 64
GB
Optical Storage Type: None
Interfaces & Connections: (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch
Expansion Bays Total (Free): (1) 2.5" HDD / SSD bay
Expansion Slots Total (Free): (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
Front I/O Ports: (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader
Rear I/O Ports: (2) RJ45 Gigabit LAN port w/LED
(1) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5" HDD / SSD bay
Power / Device Type: Power Adapter
Power / Provided (W): 65 Watt
Power / Voltage Required: Input: 100- 240V AC
19V 4.74A DC
Video Output Type: HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
Video Output Interface: Display Port, HDMI
Width: 165 Mm
Depth: 190 Mm
Height: 43 Mm
COO: CHINA
TAA compliance: No
