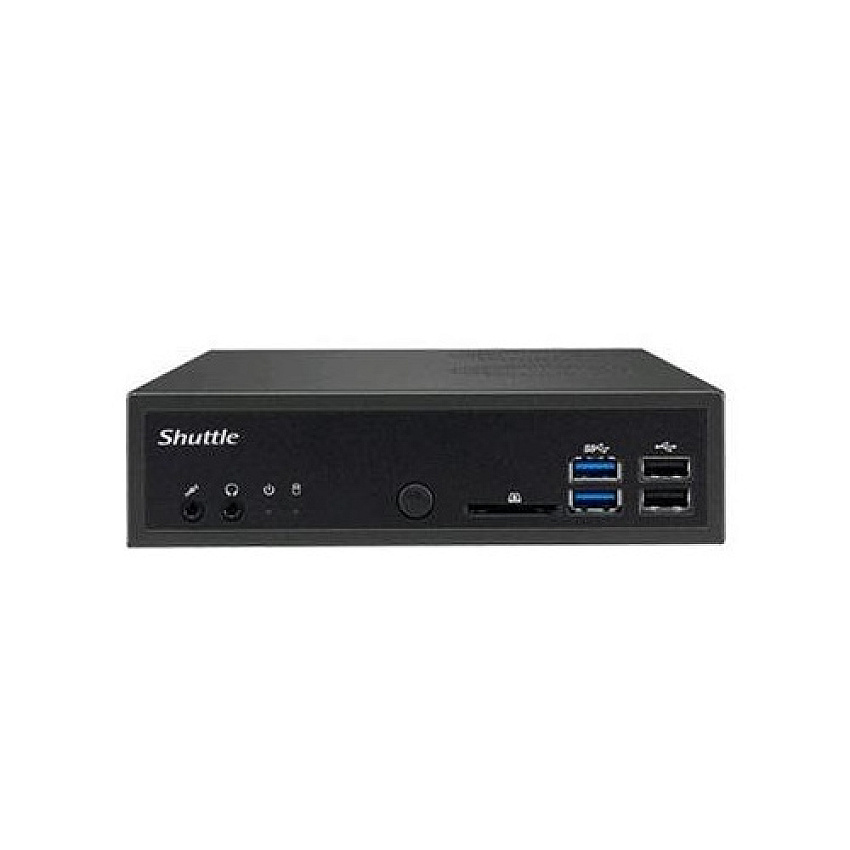

Shuttle Computer 1.3 Liter Slim,h110 Chipset,max.16gb Ram (DH110)
Shuttle Computer 1.3 Liter Slim,h110 Chipset,max.16gb Ram (DH110)
-
1.3 Liter Slim,H110 Chipset,Max.16GB RAM
-
Out Of Stock
Product Description
1.3 Liter Slim PC/Media Player, Skylake CPU, LGA1151; H110 Chipset; Max.16GB RAM; 4K Support
Product Specs
Manufacturer
Shuttle ComputerManufacturer Stock No.
DH110MPN
SHUDH110Model#
DH110UPC Code
887993000640UNSPSC Code
0Information
System Type: Personal ComputerModel: DH110
Cabinet Form Factor: Desktop
Mainboard / Chipset Type: Intel H110 Express
RAM / Technology: DDR3L
RAM / Total Slots Qty: 2
RAM / Total Installed Size: 16 GB
RAM / Memory Speed: 1600 MHz
RAM Form Factor: SO DIMM 204-pin
RAM / Max Supported Size: 32
GB
Storage Controller Type: SATA 6Gb/s
Optical Storage Type: None
Audio Output: Realtek ALC662 channel High Definition Audio
Storage Controller Type: SATA 6Gb/s
Memory Card Reader: SD Card Reader
Video Output Type: HDMI x1 + DisplayPort x1 Support dual display
4K playback (Dual channel memory recommanded)
Speakers: No Speaker
Power / Device Type: Power Adapter
Power / Provided (W): 90 Watt
Power / Voltage Required: Input: 100- 240V AC
Output: 19V/4.74A or 12V/7.5A DC
Interfaces & Connections: (1) SATA 6 connectors
(1) SATA power connector
(1) 4pin fan connector
(1) Front audio header
(1) 1x4 pin USB header
(1) D-sub connector
(1) Auto power on header
(1)External Power on
(1)RS232 voltage switch
Front I/O Ports: (1) Power-On button
(1) Power LED
(1) HDD LED
(2) USB 2.0 port
(2) USB 3.0 port
(1) Earphone-Out
(1) Microphone-In
(1) SD Card reader
Rear I/O Ports: (1) External power on/Clear CMOS header
(2) USB 3.0 port
(1) HDMI port
(1) DisplayPort
(1) eSATA+USB2.0 COM port
(2) RJ45 Gigabit LAN port
(1) RS232
(1) RS232/RS422/RS485
(1) PS/2 port
(1) DC in
(1) Kensington lock
(2) Wireless Antenna fixture
Expansion Bays Total (Free): (1) 2.5" HDD / SSD bay
Expansion Slots Total (Free): (1) M.2 2260 Type M key socket.
(1) M.2 2230 Type A,E Key socket.
Width: 165 Mm
Depth: 190 Mm
Height: 43 Mm
Features: Form Factor: 1.3L chassis
RAM / Total Slots Qty: 2
RAM / Technology: DDR3L
RAM / Total Installed Size: 16 GB
RAM / Memory Speed: 1600 MHz
RAM Form Factor: SO DIMM 204-pin
RAM / Max Supported Size: 32
GB
Optical Storage Type: None
Storage Controller Type: SATA 6Gb/s
Interfaces & Connections: (1) SATA 6 connectors
(1) SATA power connector
(1) 4pin fan connector
(1) Front audio header
(1) 1x4 pin USB header
(1) D-sub connector
(1) Auto power on header
(1)External Power on
(1)RS232 voltage switch
Expansion Bays Total (Free): (1) 2.5" HDD / SSD bay
Expansion Slots Total (Free): (1) M.2 2260 Type M key socket.
(1) M.2 2230 Type A,E Key socket.
Front I/O Ports: (1) Power-On button
(1) Power LED
(1) HDD LED
(2) USB 2.0 port
(2) USB 3.0 port
(1) Earphone-Out
(1) Microphone-In
(1) SD Card reader
Rear I/O Ports: (1) External power on/Clear CMOS header
(2) USB 3.0 port
(1) HDMI port
(1) DisplayPort
(1) eSATA+USB2.0 COM port
(2) RJ45 Gigabit LAN port
(1) RS232
(1) RS232/RS422/RS485
(1) PS/2 port
(1) DC in
(1) Kensington lock
(2) Wireless Antenna fixture
Power / Device Type: Power Adapter
Power / Provided (W): 90 Watt
Power / Voltage Required: Input: 100- 240V AC
Output: 19V/4.74A or 12V/7.5A DC
Video Output Type: HDMI x1 + DisplayPort x1 Support dual display
4K playback (Dual channel memory recommanded)
Width: 165 Mm
Depth: 190 Mm
Height: 43 Mm
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
4.25Ships via UPS
NBrand
Shuttle Computer
$850.08
$1,020.09
$1,015.21
$1,039.99
