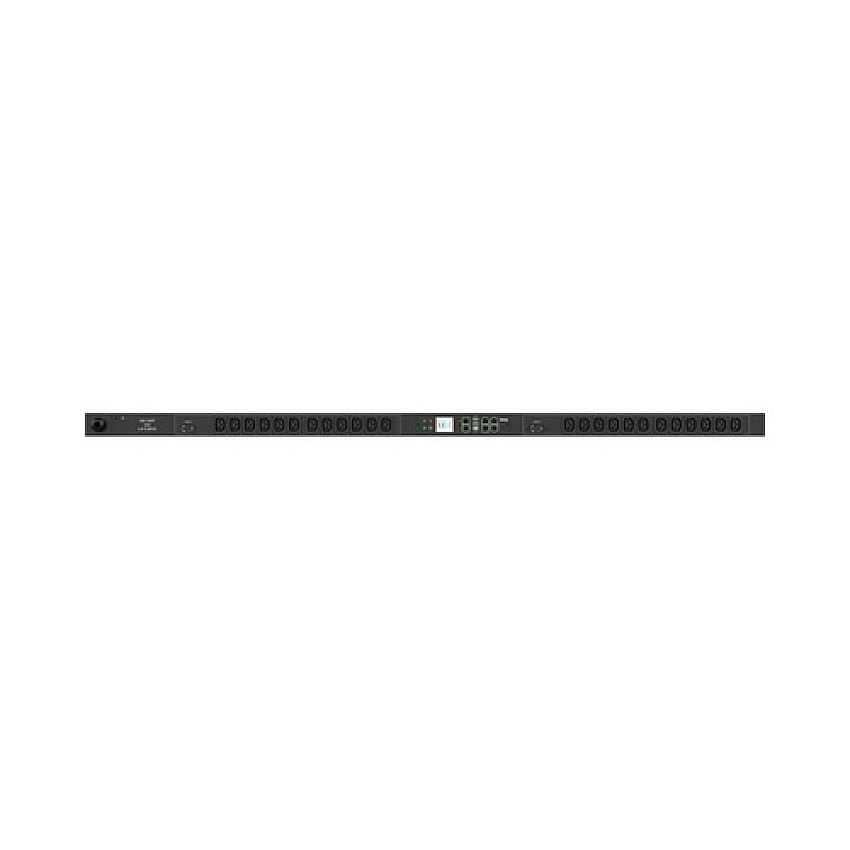

Raritan Switched, Outlet Metering 24 C13 Outlets (PX35496)
Raritan Switched, Outlet Metering 24 C13 Outlets (PX35496)
-
Switched, outlet metering 24 C13 outlets
-
Special order arrives within 3-7 weeks.
Product Description
1PH, 208V AC, 30A (24A rated); 24 outlets: 24x C13; plug: NEMA L6-30P (Bottom-front feed), 5.0kVA; Outlet Metered/Switched, Zero U vertical PDU, SecureLock ready, high resolution color display with field replaceable controller, Ethernet
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5496MPN
RRTPX35496Model#
PX35496UNSPSC Code
0Information
Product Description: Raritan PX3-5496 - power distribution unit - 5000 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Input Wiring: 1-phase
Input Voltage: AC 208 V
Output Voltage: 208 V
Power Capacity: 5000 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Input Connectors: 1 x power NEMA L6-30P
Output connectors: 24 x power IEC 60320 C13 - 208 V 12 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.6 in x 60.6 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L6-30P
Power Output Connectors Details: 24 x power IEC 60320 C13 - 208 V 12 A
Output Voltage: 208 V
Max Electric Current: 30 A
Power Capacity: 5000 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x monitoring - RJ-45
Cables Included: Power cable - integrated - 10 ft
Rack Mounting Kit: Included
Features: LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, power cable IP44 compliant, 2 x LEGBXA66-20 overload protection
Compliant Standards: ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.6 in
Height: 60.6 in
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 71.5 in
COO: TAIWAN / TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
18Ships via UPS
NBrand
Raritan
