Raritan 3ph Pdu, 2u, 208v, 60a (48a/ph Rated); Outlets: 6x C13, 12x C19; Plug: Iec 60309 3p+e 9h 60a (delta Rear Feed), Outlet Metered/switched (PX35541RE2)
Raritan 3ph Pdu, 2u, 208v, 60a (48a/ph Rated); Outlets: 6x C13, 12x C19; Plug: Iec 60309 3p+e 9h 60a (delta Rear Feed), Outlet Metered/switched (PX35541RE2)
-

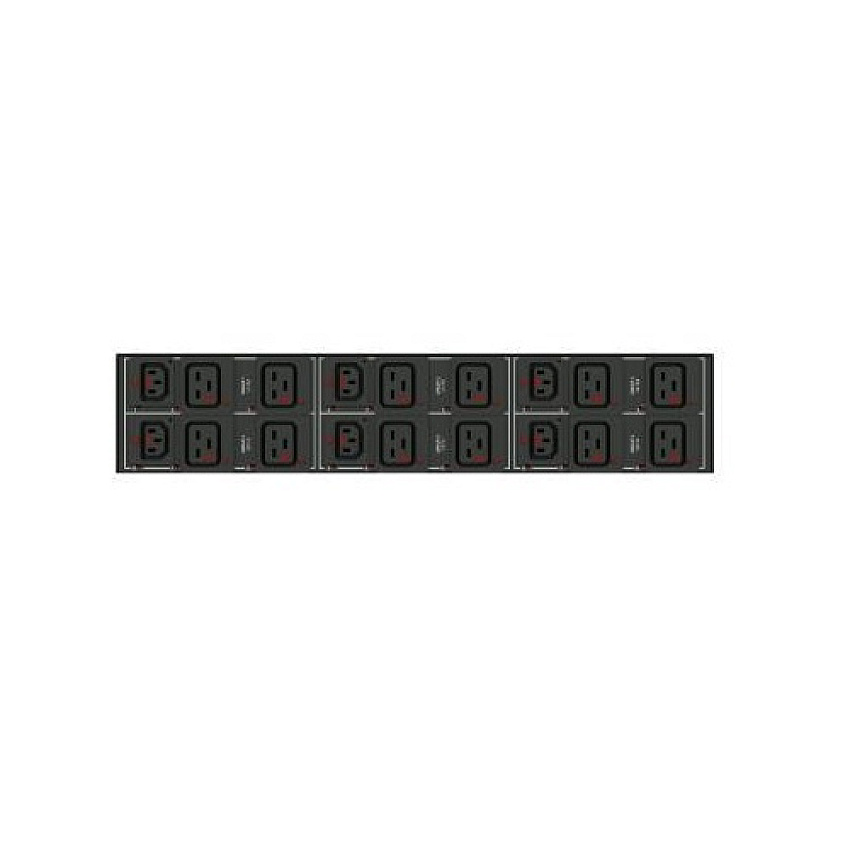

3PH PDU, 2U, 208V, 60A (48A/PH rated); outlets: 6x C13, 12x C19; plug: IEC 60309 3P+E 9h 60A (Delta Rear feed), Outlet Metered/Switched
-
Special order arrives within 3-7 weeks.
Product Description
3PH, 208V AC, 60A (48A/PH rated); 18 outlets: 6x C13, 12x C19; plug: IEC 60309 3P+E 9h 60A (Delta Rear feed), 17.3kVA; Outlet Metered/Switched, 2U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connection
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5541R-E2MPN
RRTPX35541RE2Model#
PX35541RE2UNSPSC Code
0Information
Product Description: Raritan PX intelligent PX3-5541R-E2 - power distribution unit - 17300 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 2U
Weight: 29.76 lbs
Input Wiring: 3-phase delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 17300 VA
Power Capacity Details: 17.3 kVA at 208 V, 20 kVA at 240 V
Input Connectors: 1 x power IEC 60309 3P+E
Output connectors: 6 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 17.3 in x 11.5 in x 3.5 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 2U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 208 - 240 V
Input Wiring: 3-phase delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power IEC 60309 3P+E
Power Output Connectors Details: 6 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 60 A
Power Capacity: 17300 VA
Power Capacity Details: 17.3 kVA at 208 V, 20 kVA at 240 V
Remote Management Interface: Ethernet 10/100, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x Gigabit LAN - RJ-45 ¦ 1 x LAN - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x sensor - RJ-45 ¦ 1 x expansion - RJ-45 ¦ 1 x console/modem - RJ-45 ¦ 1 x feature - RJ-45
Cables Included: Power cable - integrated - 10 ft
Features: Voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, 6 x LEGBX66-20 overload protection
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IP67
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 17.3 in
Depth: 11.5 in
Height: 3.5 in
Weight: 29.76 lbs
Shipping Width: 22 in
Shipping Depth: 21.7 in
Shipping Height: 11.2 in
Shipping Weight: 38.58 lbs
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
38.58Ships via UPS
NBrand
Raritan
$739.45
$887.34
$1,824.40
$2,189.28
$3,346.80
$4,016.16
$1,757.24
$2,108.69
$2,461.60
$2,953.92
$3,033.21
$3,639.85
