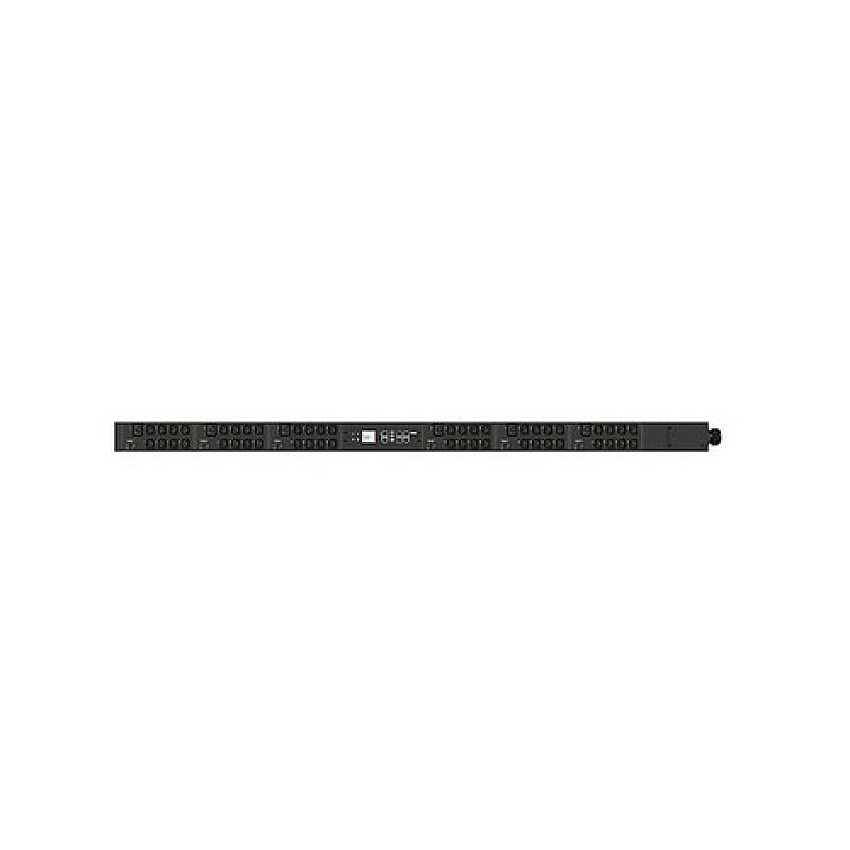

Raritan 3ph,208v Ac,60a (48a/ph Rated); (PX35785UV2K1)
Raritan 3ph,208v Ac,60a (48a/ph Rated); (PX35785UV2K1)
-
3PH,208V AC,60A (48A/PH RATED);
-
Special order arrives within 3-7 weeks.
Product Description
3PH,208V AC,60A(48A/PH rated);54 outlets:48xC13,6xC19;plug:IEC 60309 3P+E 9h 60A(Delta Top-top feed),17.3kVA;Outlet Metered/Switched,Zero U vertical PDU,SecureLock ready,V2 Outlet Sequence
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5785U-V2K1MPN
RRTPX35785UV2K1Model#
PX35785UV2K1UNSPSC Code
0Information
Product Description: Raritan PX intelligent PX3-5785U-V2K1 - power distribution unit - 17300 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 33.07 lbs
Input Wiring: 3-phase 4 Wire delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 17300 VA
Power Capacity Details: 17.3 kVA at 208 V, 20 kVA at 240 V
Input Connectors: 1 x power IEC 60309 60A
Output connectors: 48 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Red
Image Color Disclaimer: The displayed product image may be a different color
Dimensions (WxDxH): 3.5 in x 3.1 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Red
Image Color Disclaimer: The displayed product image may be a different color
Input Voltage: AC 208 V
Input Voltage Range: AC 208 - 240 V
Input Wiring: 3-phase 4 Wire delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power IEC 60309 60A
Power Output Connectors Details: 48 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 48 A
Power Capacity: 17300 VA
Power Capacity Details: 17.3 kVA at 208 V, 20 kVA at 240 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45
Cables Included: Power cable - integrated - 10 ft
Features: Vertical orientation, tool-less, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, watertight plug, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, cord retention outlet, power cable IP67 compliant
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 3.5 in
Depth: 3.1 in
Height: 70.1 in
Weight: 33.07 lbs
Shipping Width: 13 in
Shipping Depth: 5.5 in
Shipping Height: 80.2 in
Shipping Weight: 39.68 lbs
COO: TAIWAN
TAA compliance: Yes
