Raritan 3ph, 208v Ac, 50a (35a/ph Rated); (PX35535V)
Raritan 3ph, 208v Ac, 50a (35a/ph Rated); (PX35535V)
-
3PH, 208V AC, 50A (35A/PH rated);
-
Special order arrives within 3-7 weeks.
Product Description

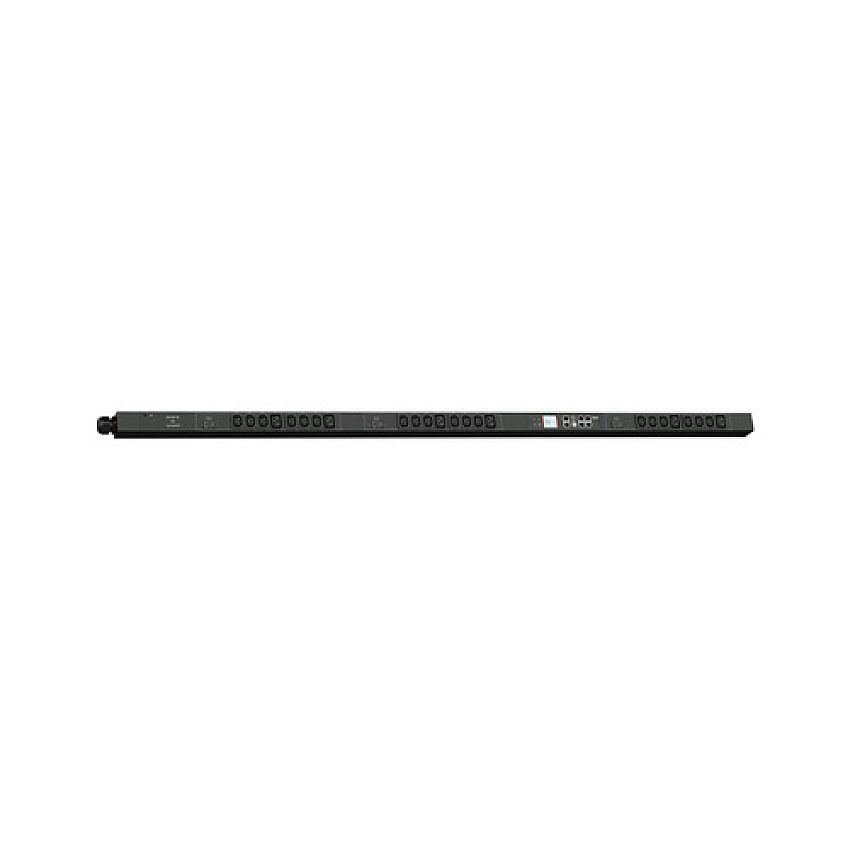

3PH, 208V AC, 50A (35A/PH rated); 24 outlets: 18x C13, 6x C19; plug: Hubbell CS8365C (Delta Bottom-bottom feed), 12.6kVA; Outlet Metered/Switched, Zero U vertical PDU, SecureLock ready, high resolution color display with field replaceable controller
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5535VMPN
RRTPX35535VModel#
PX35535VUNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-5535V - power distribution unit - 12600 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Input Wiring: 3-phase delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 12600 VA
Input Connectors: 1 x power CS8365C
Output connectors: 18 x power IEC 60320 C13 - 208 V ¦ 6 x power IEC 60320 C19 - 208 V
Networking: RS-232, Ethernet 10/100/1000
Remote Management Protocol: Telnet, SNMP 3, TFTP, SSH, JSON-RPC
Dimensions (WxDxH): 2 in x 2.6 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Input Voltage: AC 208 V
Input Voltage Range: AC 208 - 240 V
Input Wiring: 3-phase delta
Input Connectors: 1 x power CS8365C
Power Output Connectors Details: 18 x power IEC 60320 C13 - 208 V ¦ 6 x power IEC 60320 C19 - 208 V
Output Voltage: AC 208 V
Max Electric Current: 35 A
Power Capacity: 12600 VA
Circuit Protection: Circuit breaker
Remote Management Interface: RS-232, Ethernet 10/100/1000
Remote Management Protocol: Telnet, SNMP 3, TFTP, SSH, JSON-RPC
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x monitoring ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x management (Fast Ethernet) - RJ-45
Cables Included: Power cable - integrated - 10 ft
Features: LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready
Compliant Standards: UL
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.6 in
Height: 70.1 in
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 80.9 in
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
22Ships via UPS
NBrand
Raritan
