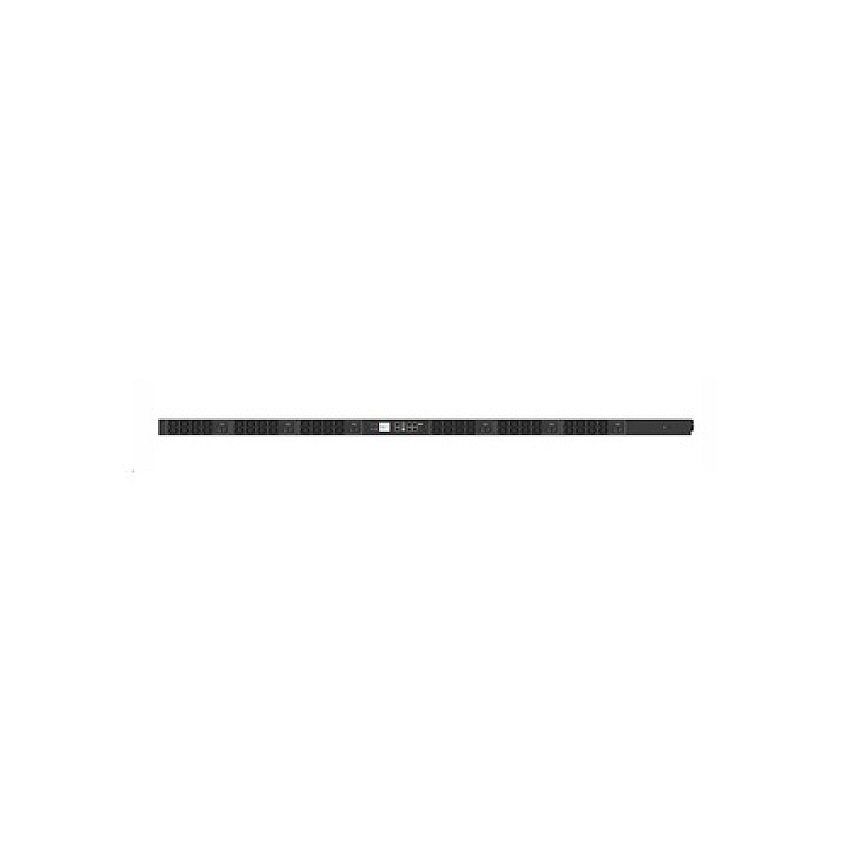

Raritan 3ph 208v Ac 48x C13 (PX35916VV2)
Raritan 3ph 208v Ac 48x C13 (PX35916VV2)
-
3Ph 208V AC 48X C13
-
Special order arrives within 3-7 weeks.
Product Description
3PH, 208V AC, 50A (40A/PH rated); 48 outlets: 48x C13; plug: Hubbell CS8365C (Delta Bottom-bottom feed), 14.4kVA; Outlet Metered/Switched, Zero U vertical PDU, SecureLock ready, V2 Outlet Sequence, high resolution color display
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5916V-V2MPN
RRTPX35916VV2Model#
PX35916VV2UNSPSC Code
0Information
Product Description: Raritan PX3-5916V-V2 - power distribution unit - 14400 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 30.64 lbs
Input Wiring: 3-phase 4 Wire delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 14400 VA
Power Capacity Details: 14.4 kVA at 208 V, 16.6 kVA at 240 V
Input Connectors: 1 x Hubbell CS8365C
Output connectors: 48 x power IEC 60320 C13 - 208 V 12 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 2.3 in x 3.9 in x 78 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 208 - 240 V
Input Wiring: 3-phase 4 Wire delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x Hubbell CS8365C
Power Output Connectors Details: 48 x power IEC 60320 C13 - 208 V 12 A
Output Voltage: AC 208 V
Max Electric Current: 40 A
Power Capacity: 14400 VA
Power Capacity Details: 14.4 kVA at 208 V, 16.6 kVA at 240 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45
Cables Included: Power cable - integrated - 10 ft
Features: Vertical orientation, tool-less button mount, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, cord retention outlet, power cable IP20 compliant
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2.3 in
Depth: 3.9 in
Height: 78 in
Weight: 30.64 lbs
Shipping Width: 15.9 in
Shipping Depth: 5.3 in
Shipping Height: 93.3 in
Shipping Weight: 38.58 lbs
COO: TAIWAN / TAIWAN / TAIWAN
TAA compliance: Yes
