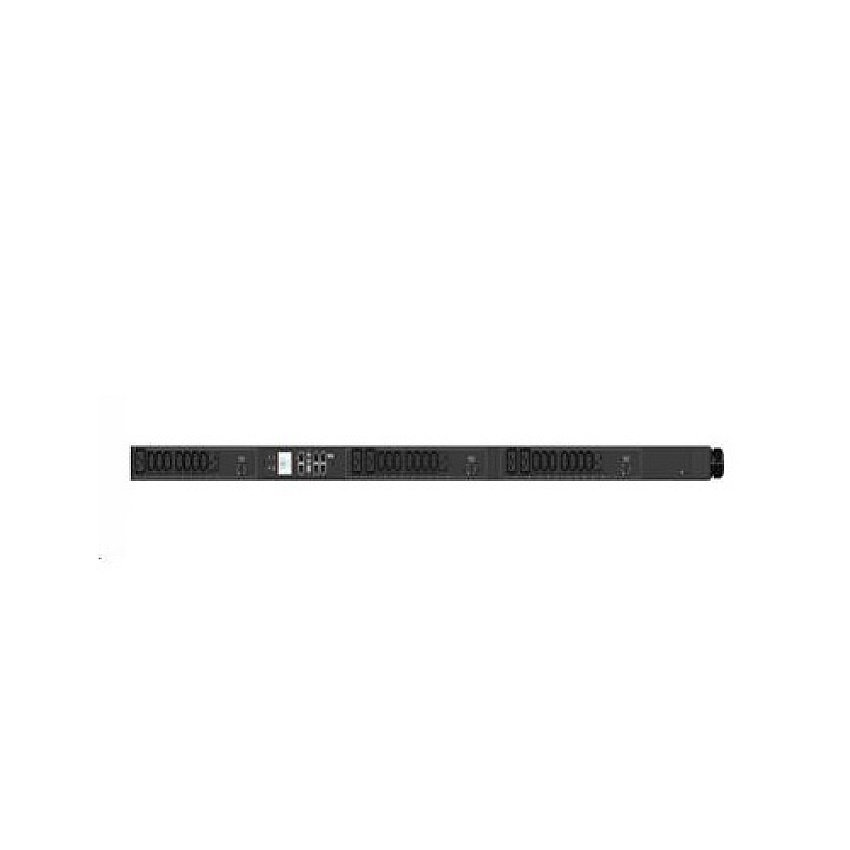

Raritan 3ph, 208v Ac, 30a (24a/ph Rated); 30 Outlets: 21x C13 Locking, 6x C19 Locking, 3x Nema 5-20r; Plug: Nema L21-30p, Yellow Chassis (PX35660VE2K6)
Raritan 3ph, 208v Ac, 30a (24a/ph Rated); 30 Outlets: 21x C13 Locking, 6x C19 Locking, 3x Nema 5-20r; Plug: Nema L21-30p, Yellow Chassis (PX35660VE2K6)
-
3PH, 208V AC, 30A (24A/PH rated); 30 outlets: 21x C13 Locking, 6x C19 Locking, 3x NEMA 5-20R; plug: NEMA L21-30P, Yellow Chassis
-
Special order arrives within 3-7 weeks.
Product Description
3PH, 208V AC, 30A (24A/PH rated); 30 outlets: 21x C13 Locking, 6x C19 Locking, 3x NEMA 5-20R; plug: NEMA L21-30P (Wye Bottom-bottom feed), 8.6kVA; Outlet Metered/Switched, Zero U vertical PDU
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5660V-E2K6MPN
RRTPX35660VE2K6Model#
PX35660VE2K6UNSPSC Code
0Information
Product Description: Raritan PX3-5660V-E2K6 - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 19.84 lbs
Input Wiring: 3-phase WYE (star)
Input Voltage: AC 208 V
Output Voltage: AC 120/208 V
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Input Connectors: 1 x power NEMA L21-30P
Output connectors: 21 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A ¦ 3 x power NEMA 5-20R - 120 V 16 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Yellow
Image Color Disclaimer: The displayed product image may be a different color
Dimensions (WxDxH): 2 in x 2.8 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Yellow
Image Color Disclaimer: The displayed product image may be a different color
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase WYE (star)
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L21-30P
Power Output Connectors Details: 21 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A ¦ 3 x power NEMA 5-20R - 120 V 16 A
Output Voltage: AC 120/208 V
Max Electric Current: 24 A
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45
Cables Included: Power cable - integrated - 10 ft
Rack Mounting Kit: Included
Features: Vertical orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, locking outlets, power cable IP44 compliant
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.8 in
Height: 70.1 in
Weight: 19.84 lbs
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 81.5 in
Shipping Weight: 25.35 lbs
COO: TAIWAN / TAIWAN / TAIWAN
TAA compliance: Yes
