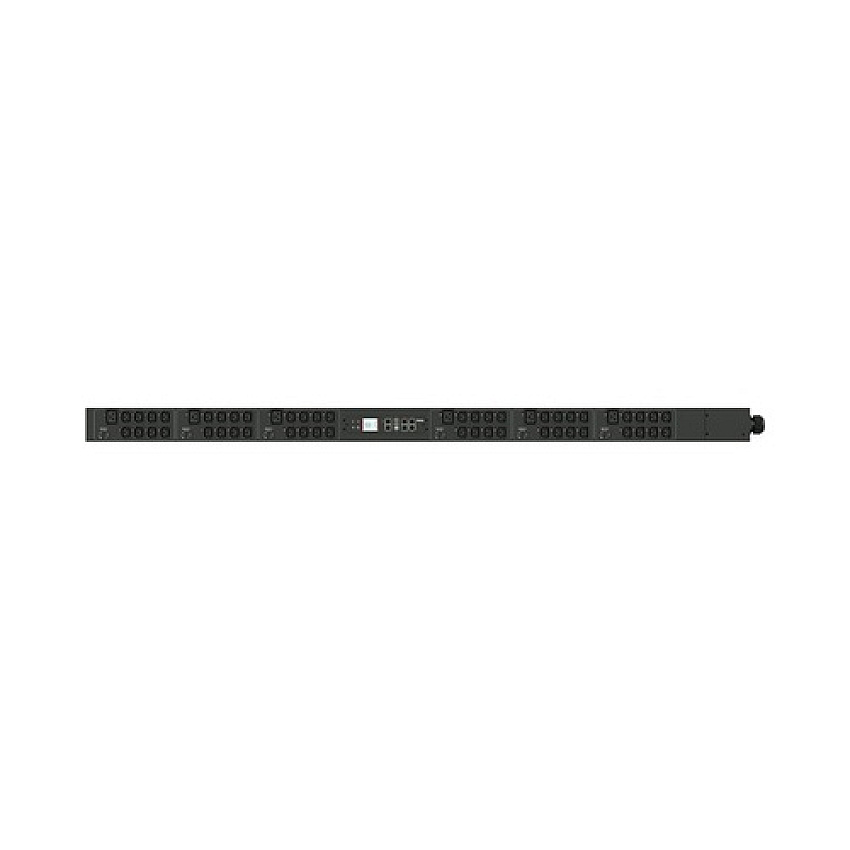

Raritan 3ph 208v 60a Delta 48 X C13 6 X C19 (PX35785UV2)
Raritan 3ph 208v 60a Delta 48 X C13 6 X C19 (PX35785UV2)
-
3PH 208V 60A DELTA 48 X C13 6 X C19
-
Special order arrives within 3-7 weeks.
Product Description
3PH 208V 60A DELTA 48 X C13 6 X C19
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5785U-V2MPN
RRTPX35785UV2Model#
PX35785UV2UNSPSC Code
0Information
Product Description: Raritan PX intelligent PX3-5785U-V2 - power distribution unit - 17300 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 33.07 lbs
Input Wiring: 3-phase 4 Wire delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 17300 VA
Input Connectors: 1 x power IEC 60309 60A
Output connectors: 48 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Black powder coat
Dimensions (WxDxH): 3.5 in x 3.1 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 208 - 240 V
Input Wiring: 3-phase 4 Wire delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power IEC 60309 60A
Power Output Connectors Details: 48 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 48 A
Power Capacity: 17300 VA
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x monitoring - RJ-11 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Cables Included: Power cable - integrated - 10 ft
Features: LED display, voltage monitoring, current meter, overload protection, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 3.5 in
Depth: 3.1 in
Height: 70.1 in
Weight: 33.07 lbs
Shipping Width: 13 in
Shipping Depth: 5.5 in
Shipping Height: 80.2 in
Shipping Weight: 39.68 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
40Ships via UPS
NBrand
Raritan
$1,543.86
$1,852.63
$2,835.16
$3,402.19
$3,346.80
$4,016.16
$1,886.39
$2,263.67
$1,757.24
$2,108.69
$4,074.98
$4,889.98
