Raritan 3ph;208v;30a;3nema5-20r;21c13;6c19 (PX34660UE2)
Raritan 3ph;208v;30a;3nema5-20r;21c13;6c19 (PX34660UE2)
-
3PH;208V;30A;3NEMA5-20R;21C13;6C19
-
Special order arrives within 3-7 weeks.
Product Description

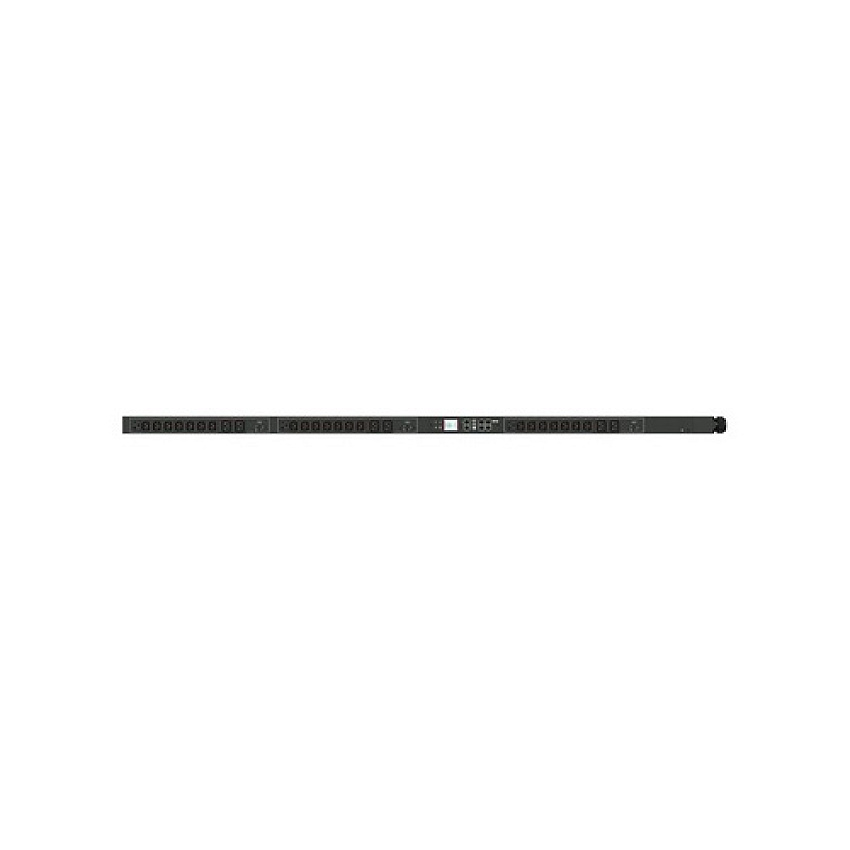

3PH, 208V AC, 30A (24A/PH rated); 30 outlets: 3x NEMA 5-20R, 21x C13 Locking, 6x C19 Locking; plug: NEMA L21-30P (Wye Top-top feed); Outlet Metered, 0U, Ethernet, serial, 2x USB-A, USB-B and sensor connection
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-4660U-E2MPN
RRTPX34660UE2Model#
PX34660UE2UNSPSC Code
0Information
Product Description: Raritan PX intelligent PX3-4660U-E2 - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 19.4 lbs
Input Wiring: 3-phase WYE (star)
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Input Connectors: 1 x power NEMA L21-30P
Output connectors: 21 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A ¦ 3 x power NEMA 5-20R - 208 V 16 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.8 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase WYE (star)
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L21-30P
Power Output Connectors Details: 21 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A ¦ 3 x power NEMA 5-20R - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 30 A
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45
Cables Included: Power cable - integrated - 10 ft
Features: LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, locking C13 connector, locking C19 connector, power cable IP44 compliant
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.8 in
Height: 70.1 in
Weight: 19.4 lbs
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 81.5 in
Shipping Weight: 24.47 lbs
COO: TAIWAN
TAA compliance: Yes
