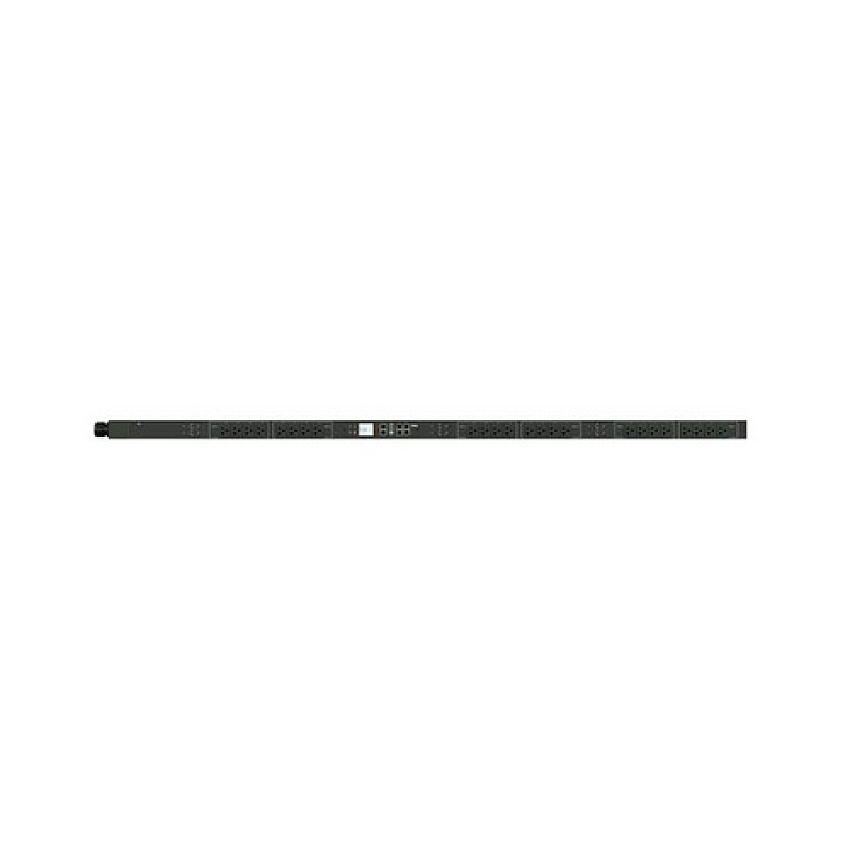

Raritan 3ph 208v 30a 24xnema 5-20r; Nema L21-30p (PX35235U)
Raritan 3ph 208v 30a 24xnema 5-20r; Nema L21-30p (PX35235U)
-
3PH 208V 30A 24xNEMA 5-20R; NEMA L21-30P
-
Special order arrives within 3-7 weeks.
Product Description
3PH 208V AC 30A (24A/PH rated) 24x NEMA 5-20R; plug: NEMA L21-30P (Wye Top-top feed), 8.6kVA; Outlet Metered/Switched, 0U vertical, high resolution color display w/field replaceable controller, Ethernet, serial, 2x USB-A, USB-B & sensor connections
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5235UMPN
RRTPX35235UModel#
PX35235UUNSPSC Code
0Information
Product Description: Raritan PX3-5235U - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 18.52 lbs
Input Wiring: 3-phase WYE (star)
Input Voltage: AC 208 V
Output Voltage: 100-120 V
Power Capacity: 8600 VA
Input Connectors: Power NEMA L21-30P
Output connectors: 24 x power NEMA 5-20R
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Color: Black
Dimensions (WxDxH): 2 in x 2.6 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase WYE (star)
Frequency Required: 50/60 Hz
Input Connectors: Power NEMA L21-30P
Power Output Connectors Details: 24 x power NEMA 5-20R
Output Voltage: 100-120 V
Max Electric Current: 30 A
Power Capacity: 8600 VA
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Interfaces: 1 x Gigabit LAN - RJ-45 ¦ 1 x LAN - RJ-45 ¦ 2 x USB ¦ USB ¦ 1 x RS-232
Cables Included: Power cable 10 ft
Features: LCD display, overload protection, vertical orientation, metering per input line, metering per branch circuit breaker, metering per output receptacle
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Width: 2 in
Depth: 2.6 in
Height: 70.1 in
Weight: 18.52 lbs
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 80.9 in
Shipping Weight: 23.59 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
