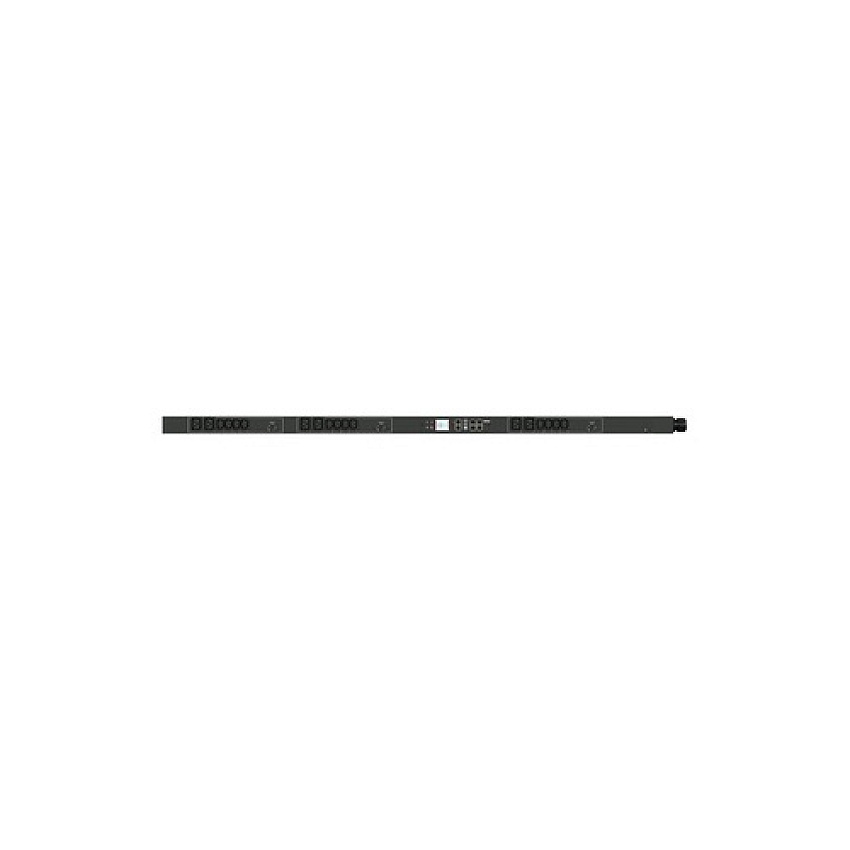

Raritan 3ph 208v 30a 12xc13 6xc19 L21-30p Top (PX35902U)
Raritan 3ph 208v 30a 12xc13 6xc19 L21-30p Top (PX35902U)
-
3PH 208V 30A 12xC13 6xC19 L21-30P Top
-
Special order arrives within 3-7 weeks.
Product Description
3PH, 208V AC, 30A(24A/PH rated) 12x C13, 6x C19; plug: NEMA L21-30P (Wye Top feed), 8.6kVA; Outlet Metered/Switched, 0U PDU, SecureLock ready, hi-res color display w/field replaceable controller, Ethernet, serial, 2x USB-A, USB-B & sensor connection
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5902UMPN
RRTPX35902UModel#
PX35902UUNSPSC Code
0Information
Product Description: Raritan PX intelligent PX3-5902U - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Input Wiring: 3-phase delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Input Connectors: 1 x power NEMA L21-30P
Output connectors: 12 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.6 in x 60.6 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L21-30P
Power Output Connectors Details: 12 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 30 A
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45
Cables Included: Power cable - integrated - 10 ft
Features: LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, metering per output receptacle, power cable IP44 compliant
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.6 in
Height: 60.6 in
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 71.5 in
COO: TAIWAN
TAA compliance: Yes
