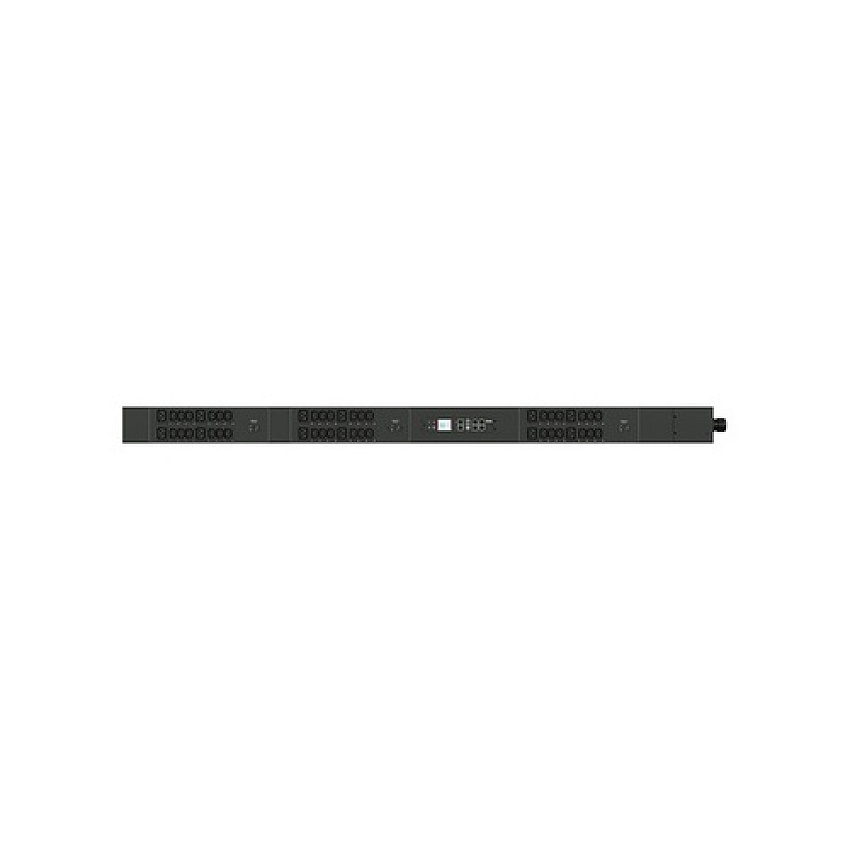

Raritan 3ph,208v,24a,36xc13,12xc19 (PX35996U)
Raritan 3ph,208v,24a,36xc13,12xc19 (PX35996U)
-
3PH,208V,24A,36xC13,12xC19
-
Special order arrives within 3-7 weeks.
Product Description
3PH,208V,24A,36xC13,12xC19,L21-30P,8.6kVA,0U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5996UMPN
RRTPX35996UModel#
PX35996UUNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-5996U - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Input Wiring: 3-phase 4 Wire delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 8600 VA
Input Connectors: 1 x power NEMA L21-30
Output connectors: 36 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Black powder coat
Dimensions (WxDxH): 4.3 in x 2.6 in x 70.1 in
Device Type: Power distribution unit - rack-mountable
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase 4 Wire delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L21-30
Power Output Connectors Details: 36 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 24 A
Power Capacity: 8600 VA
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Cables Included: Power cable - integrated - 10 ft
Features: LED display, voltage monitoring, current meter, overload protection, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 85%
Width: 4.3 in
Depth: 2.6 in
Height: 70.1 in
COO: TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
29Ships via UPS
