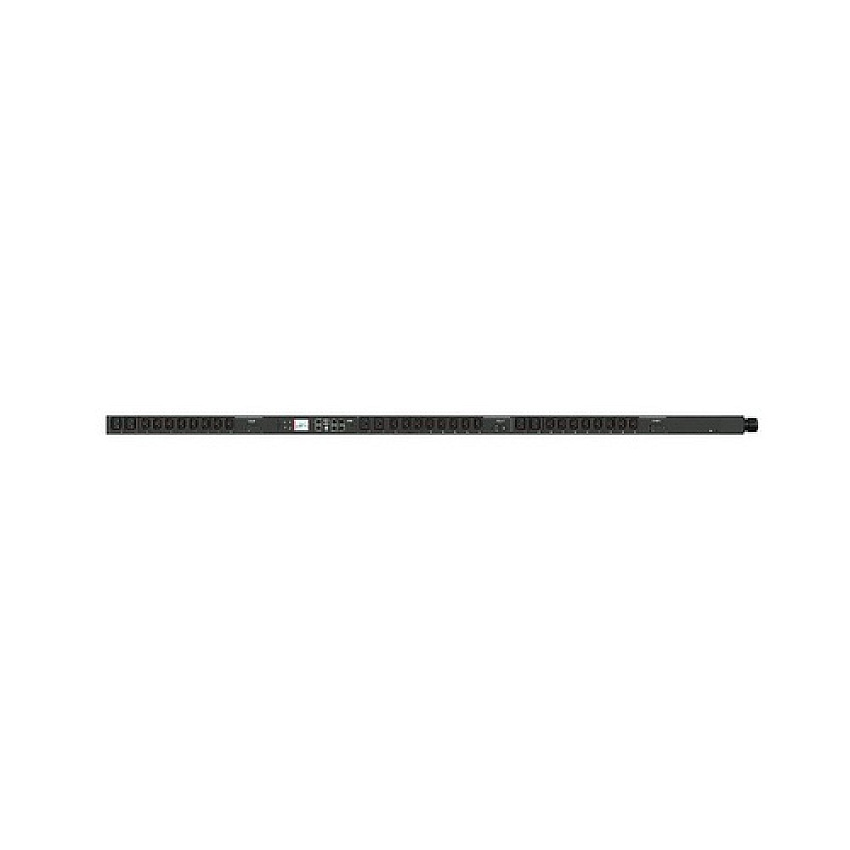

Raritan 3ph,208v,24a,24xc13,6xc19,nema L21-30 (PX34664VE2)
Raritan 3ph,208v,24a,24xc13,6xc19,nema L21-30 (PX34664VE2)
-
3PH,208V,24A,24XC13,6XC19,NEMA L21-30
-
Special order arrives within 3-7 weeks.
Product Description
3PH,208V,24A,24xC13,6xC19,NEMA L21-30P,8.6kVA,0U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-4664V-E2MPN
RRTPX34664VE2Model#
PX34664VE2UNSPSC Code
0Information
Product Description: Raritan PX intelligent PX3-4664V-E2 - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 15.21 lbs
Input Wiring: 3-phase delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Input Connectors: 1 x power NEMA L21-30P
Output connectors: 24 x power IEC 60320 C13 12 A ¦ 6 x power IEC 60320 C19 16 A
Networking: Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.8 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L21-30P
Power Output Connectors Details: 24 x power IEC 60320 C13 12 A ¦ 6 x power IEC 60320 C19 16 A
Output Voltage: AC 208 V
Max Electric Current: 30 A
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Cables Included: Power cable - integrated - 10 ft
Features: Vertical orientation, LCD display, voltage monitoring, current meter, overcurrent protection, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, locking outlets
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP44, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.8 in
Height: 70.1 in
Weight: 15.21 lbs
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 81.5 in
Shipping Weight: 19.84 lbs
COO: TAIWAN / TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
19.8Ships via UPS
NBrand
Raritan
$1,543.86
$1,852.63
$3,807.35
$4,568.82
$1,542.46
$1,850.95
$2,407.56
$2,889.07
$2,674.38
$3,209.26
$2,970.84
$3,565.01
$2,026.51
$2,431.81
$2,567.85
$3,081.42
