Raritan 3ph,208v,24a,12xc13,6xc19,nema L21-30p, (PX31902R)
Raritan 3ph,208v,24a,12xc13,6xc19,nema L21-30p, (PX31902R)
-
3PH,208V,24A,12xC13,6xC19,NEMA L21-30P,
-
Special order arrives within 3-7 weeks.
Product Description
3PH,208V,24A,12xC13,6xC19,NEMA L21-30P,8.6kVA,2U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-1902RMPN
RRTPX31902RModel#
PX31902RUNSPSC Code
0Information

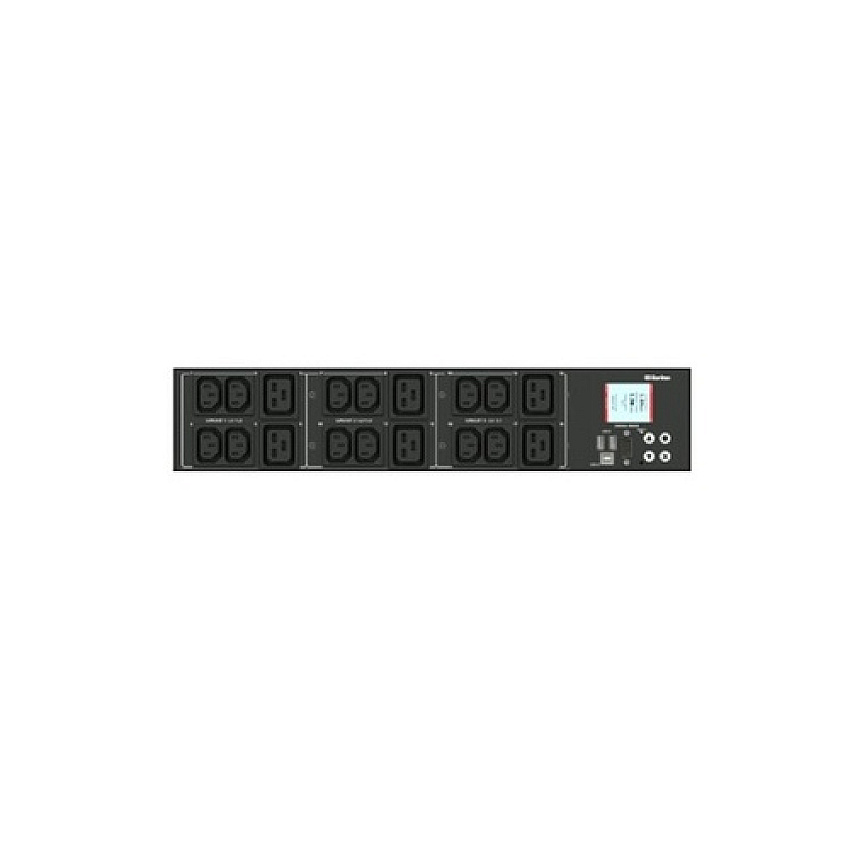

Product Description: Raritan PX3-1902R - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Rack Size: 2U
Input Wiring: 3-phase WYE (star)
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 8600 VA
Input Connectors: 1 x power NEMA L21-30
Output connectors: 12 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Black powder coat
Dimensions (WxDxH): 17.3 in x 5.2 in x 3.5 in
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 2U
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase WYE (star)
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L21-30
Power Output Connectors Details: 12 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 24 A
Power Capacity: 8600 VA
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x monitoring - RJ-12 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Cables Included: Power cable - integrated - 10 ft
Rack Mounting Kit: Included
Features: LED display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 85%
Width: 17.3 in
Depth: 5.2 in
Height: 3.5 in
Shipping Width: 18.4 in
Shipping Depth: 7.1 in
Shipping Height: 21.8 in
COO: TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
17.5Ships via UPS
YBrand
