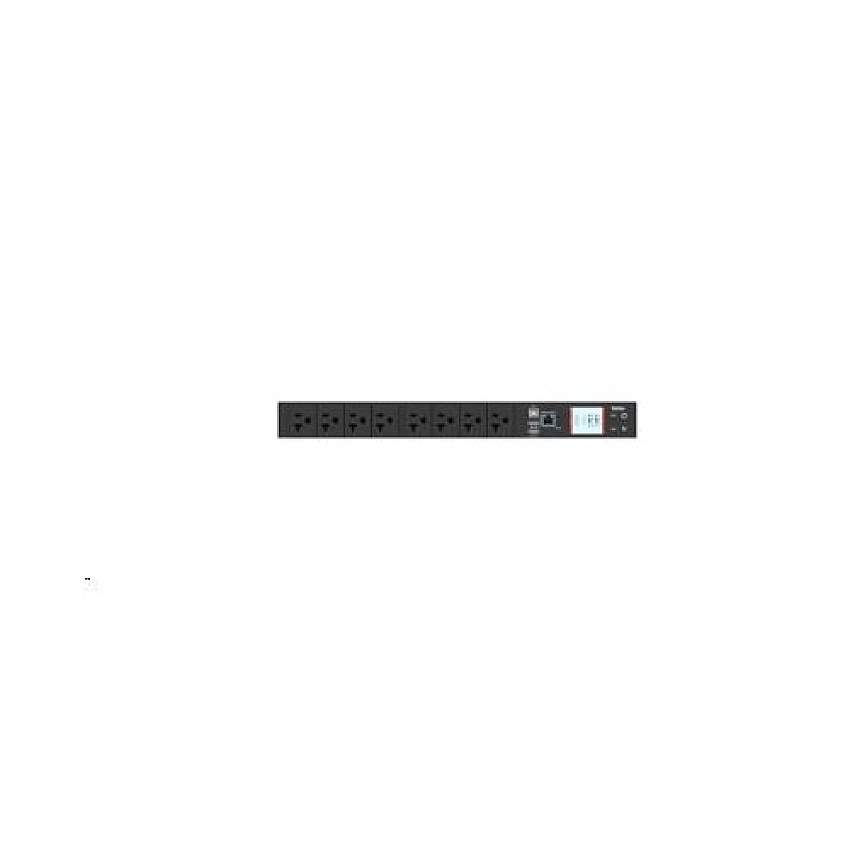

Raritan 1u 1ph 120v 15a 8x Nema 5-20r (PX34145R)
Raritan 1u 1ph 120v 15a 8x Nema 5-20r (PX34145R)
-
1U 1PH 120V 15A 8x NEMA 5-20R
-
Special order arrives within 3-7 weeks.
Product Description
1PH, 120V AC, 15A (12A rated); 8 outlets: 8x NEMA 5-20R; plug: NEMA 5-15P (Rear feed), 1.4kVA; Outlet Metered, 1U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connection
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-4145RMPN
RRTPX34145RModel#
PX34145RUNSPSC Code
0Information
Power / Device Type: Power Distribution UnitVoltage Output: 120V
Power / Voltage Required: 120V
Power Provided (VA): 1400 VA
Networking Type: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Input Connector(s): NEMA 5-15P (2P3W)
Output Connector(s): (8) NEMA 5-20R
Width: 17.3 Inch
Depth: 7.2 Inch
Height: 1.7 Inch
Service & Support Type: 2 years manufacturer warranty
Features: Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
No
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
No
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
View all sensors.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information).
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
7.72Ships via UPS
