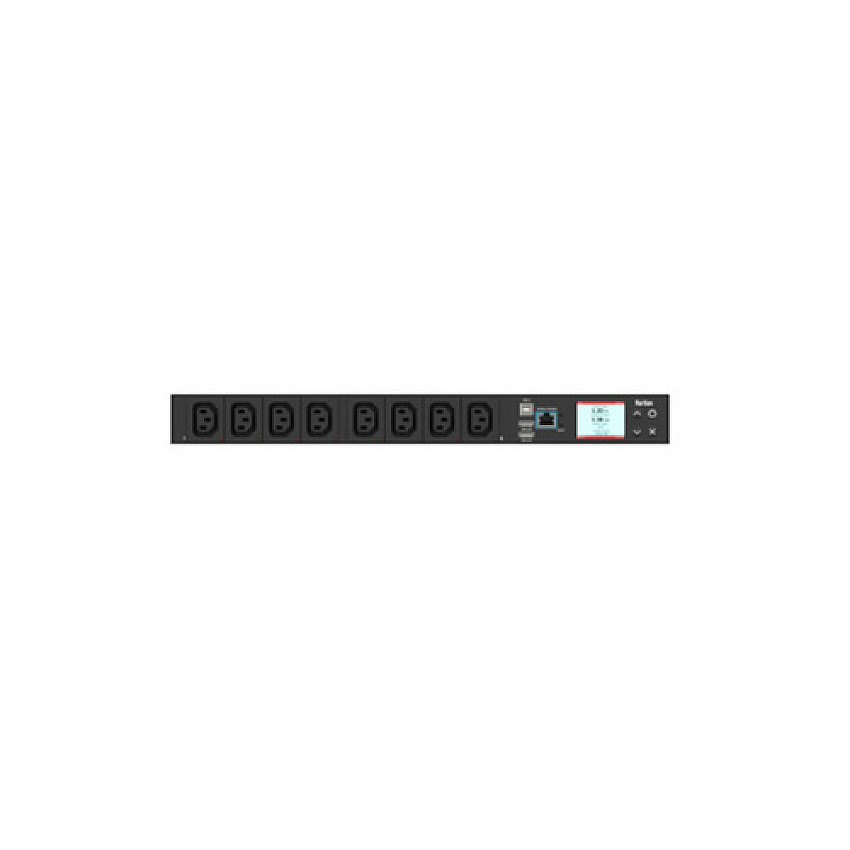

Raritan 1ph;208vac;20a;8c13;nemal6-20p;1u,switch (PX35180RF5)
Raritan 1ph;208vac;20a;8c13;nemal6-20p;1u,switch (PX35180RF5)
-
1PH;208VAC;20A;8C13;NemaL6-20P;1U,Switch
-
Special order arrives within 3-7 weeks.
Product Description
1PH, 208V AC, 20A (16A rated); 8 outlets: 8x C13; plug: NEMA L6-20P (Rear feed), 3.3kVA; Outlet Metered/Switched, 1U horizontal PDU, SecureLock ready, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5180R-F5MPN
RRTPX35180RF5Model#
PX35180RF5UNSPSC Code
0Information
Product Description: Raritan PX3-5180R-F5 - power distribution unit - 3300 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 1U
Weight: 6.83 lbs
Input Wiring: 1-phase
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 3300 VA
Power Capacity Details: 3.2 kVA at 200 V, 3.8 kVA at 240 V
Input Connectors: 1 x power NEMA L6-20P
Output connectors: 8 x power IEC 60320 C13 - 208 V 12 A
Networking: Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, Modbus
Color: Black powder coat
Dimensions (WxDxH): 17.3 in x 7.2 in x 1.7 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 1U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L6-20P
Power Output Connectors Details: 8 x power IEC 60320 C13 - 208 V 12 A
Output Voltage: AC 208 V
Max Electric Current: 20 A
Power Capacity: 3300 VA
Power Capacity Details: 3.2 kVA at 200 V, 3.8 kVA at 240 V
Remote Management Interface: Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, Modbus
Interfaces: 1 x Gigabit LAN - RJ-45 ¦ 1 x console/modem ¦ 1 x sensor ¦ 1 x expansion ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 1 x feature
Cables Included: Power cable 10 ft
Features: LCD display, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, ISO/IEC 62053-21 1% metering accuracy, rear feed cord entry, power cable IP44 compliant, voltage meter, environmental sensor ready, 16MB SPI Flash, LEGBX66-20 overload protection
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 17.3 in
Depth: 7.2 in
Height: 1.7 in
Weight: 6.83 lbs
Shipping Width: 22.3 in
Shipping Depth: 16.3 in
Shipping Height: 12.1 in
Shipping Weight: 13.23 lbs
COO: TAIWAN
TAA compliance: Yes
