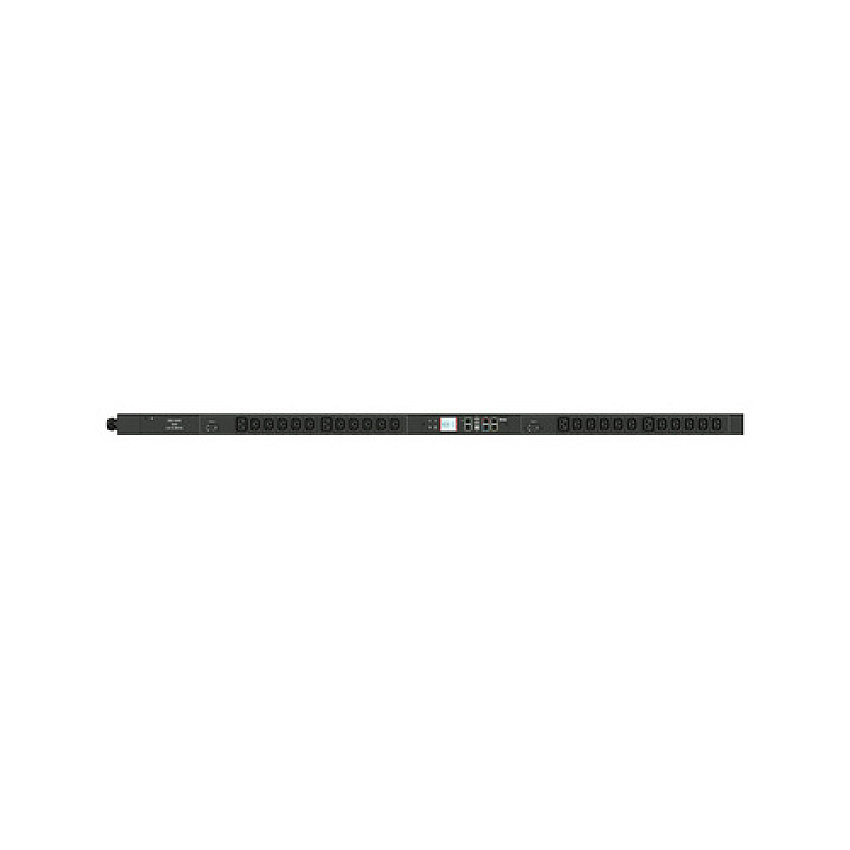

Raritan 1ph 208v30a 20xc13 4xc19 Nema L6-30p Red (PX35497VK1)
Raritan 1ph 208v30a 20xc13 4xc19 Nema L6-30p Red (PX35497VK1)
-
1PH 208V30A 20xC13 4xC19 NEMA L6-30P Red
-
Special order arrives within 3-7 weeks.
Product Description
1PH 208V AC 30A (24A rated); 20xC13 4xC19; NEMA L6-30P (Bottom-bottom), 5.0kVA; Outlet Metered/Switched, 0U vertical PDU, SecureLock ready, hi-res clr display w/ field replaceable ctrlr, Ethernet, serial, 2x USB-A, USB-B and sensor connections - RED
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5497V-K1MPN
RRTPX35497VK1Model#
PX35497VK1UNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-5497V-K1 - power distribution unit - 5800 VADevice Type: Power distribution unit - rack-mountable
Rack Size: 0U
Input Wiring: 1-phase
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 5800 VA
Input Connectors: 1 x power NEMA L6-30
Output connectors: 20 x power IEC 60320 C13 - 208 V 12 A ¦ 4 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Red
Dimensions (WxDxH): 2 in x 2.6 in x 60.6 in
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Color: Red
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L6-30
Power Output Connectors Details: 20 x power IEC 60320 C13 - 208 V 12 A ¦ 4 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 24 A
Power Capacity: 5800 VA
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Cables Included: Power cable - integrated - 10 ft
Rack Mounting Kit: Included
Features: LED display, voltage monitoring, current meter, overload protection, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 85%
Width: 2 in
Depth: 2.6 in
Height: 60.6 in
COO: TAIWAN / TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
17.16Ships via UPS
NBrand
Raritan
