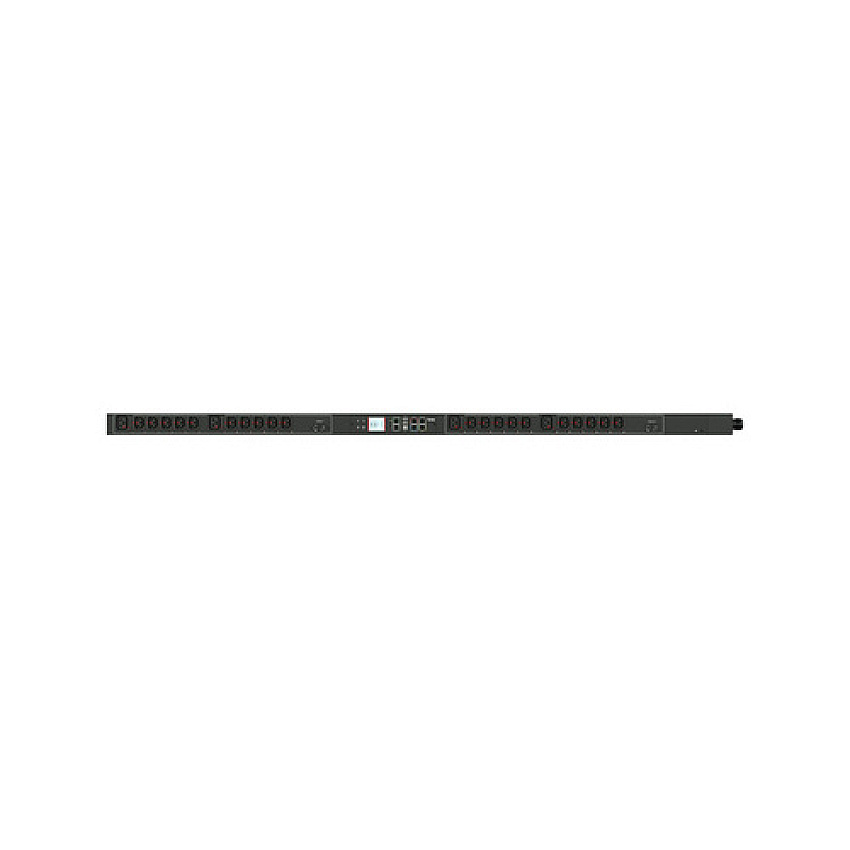

Raritan 1ph 208v Ac 30a 24outlets 20xc13 4xc19 (PX34497VE2)
Raritan 1ph 208v Ac 30a 24outlets 20xc13 4xc19 (PX34497VE2)
-
1PH 208V AC 30A 24outlets 20xC13 4xC19
-
Special order arrives within 3-7 weeks.
Product Description
1PH, 208V AC, 30A (24A rated); 24 outlets: 20x C13 Locking, 4x C19 Locking; plug: NEMA L6-30P (Bottom-bottom feed), 5.0kVA; Outlet Metered, Zero U vertical PDU, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-A,
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-4497V-E2MPN
RRTPX34497VE2Model#
PX34497VE2UNSPSC Code
0Information
Product Description: Raritan PX3-4497V-E2 - power distribution unit - 5000 VADevice Type: Power distribution unit - rack-mountable
Rack Size: 0U
Weight: 13.01 lbs
Input Wiring: 1-phase
Input Voltage: AC 208 V
Power Capacity: 5000 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Input Connectors: Power NEMA L6-30P
Output connectors: 20 x power IEC 60320 C13 - 208 V 12 A ¦ 4 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.8 in x 60.6 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: Power NEMA L6-30P
Power Output Connectors Details: 20 x power IEC 60320 C13 - 208 V 12 A ¦ 4 x power IEC 60320 C19 - 208 V 16 A
Max Electric Current: 30 A
Power Capacity: 5000 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x Gigabit LAN - RJ-45 ¦ 1 x LAN - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x sensor - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x cascading - RJ-45
Cables Included: Power cable 10 ft
Features: Voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, metering per input line, locking outlets, 2 x LEGBXA66-20 overload protection
Compliant Standards: ICES-003, FCC, RoHS, FCC Part 15 A
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.8 in
Height: 60.6 in
Weight: 13.01 lbs
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 73.4 in
Shipping Weight: 17.86 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
