Raritan 1ph, 208v Ac, 30a (24a Rated (PX34284RE2)
Raritan 1ph, 208v Ac, 30a (24a Rated (PX34284RE2)
-
1PH, 208V AC, 30A (24A rated
-
Special order arrives within 3-7 weeks.
Product Description

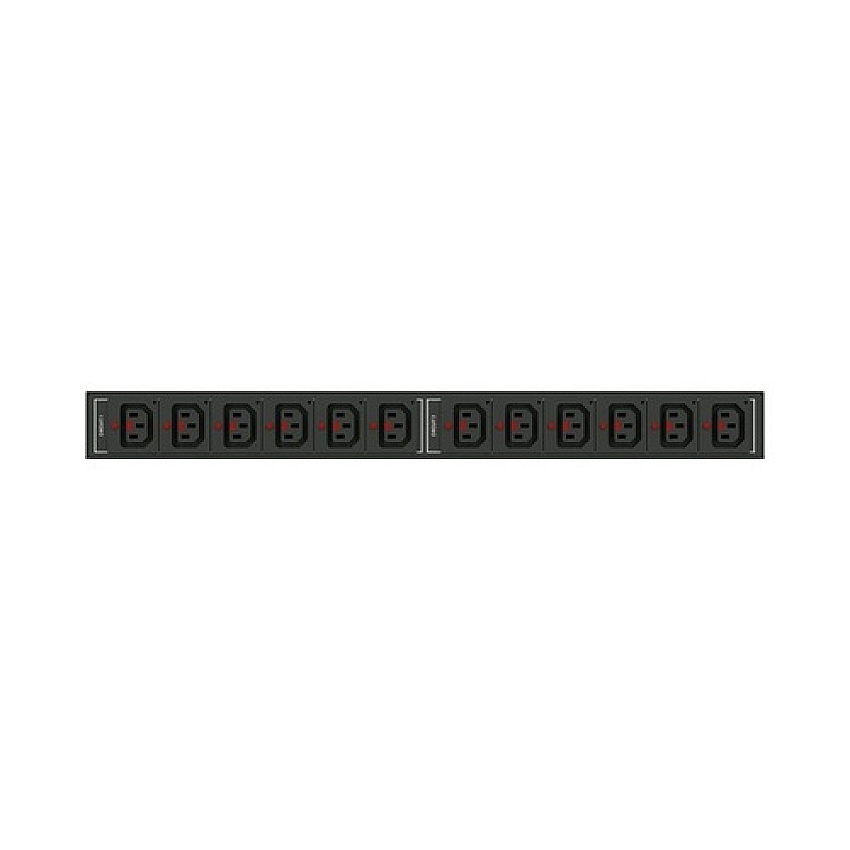

1PH, 208V AC, 30A (24A rated); 12 outlets: 12x C13 Locking; plug: NEMA L6-30P (Rear feed), 5.0kVA; Outlet Metered, 1U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-4284R-E2MPN
RRTPX34284RE2Model#
PX34284RE2UNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-4284R-E2 - power distribution unit - 5000 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 1U
Weight: 14 lbs
Input Wiring: 1-phase 3 Wire
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 5000 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Input Connectors: 1 x power NEMA L6-30
Output connectors: 12 x power IEC 60320 C13 - 208 V 12 A
Networking: RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Color: Black powder coat
Dimensions (WxDxH): 17.3 in x 7.2 in x 1.7 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 1U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 1-phase 3 Wire
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L6-30
Power Output Connectors Details: 12 x power IEC 60320 C13 - 208 V 12 A
Output Voltage: AC 208 V
Max Electric Current: 30 A
Power Capacity: 5000 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Circuit Protection: Circuit breaker
Remote Management Interface: RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Interfaces: 1 x cascading - RJ-45 ¦ 2 x monitoring - RJ-45 ¦ 1 x RS-232 - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45
Cables Included: Power cable 10 ft
Features: LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 17.3 in
Depth: 7.2 in
Height: 1.7 in
Weight: 14 lbs
Shipping Width: 16.3 in
Shipping Depth: 12.6 in
Shipping Height: 22.4 in
Shipping Weight: 15.32 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
