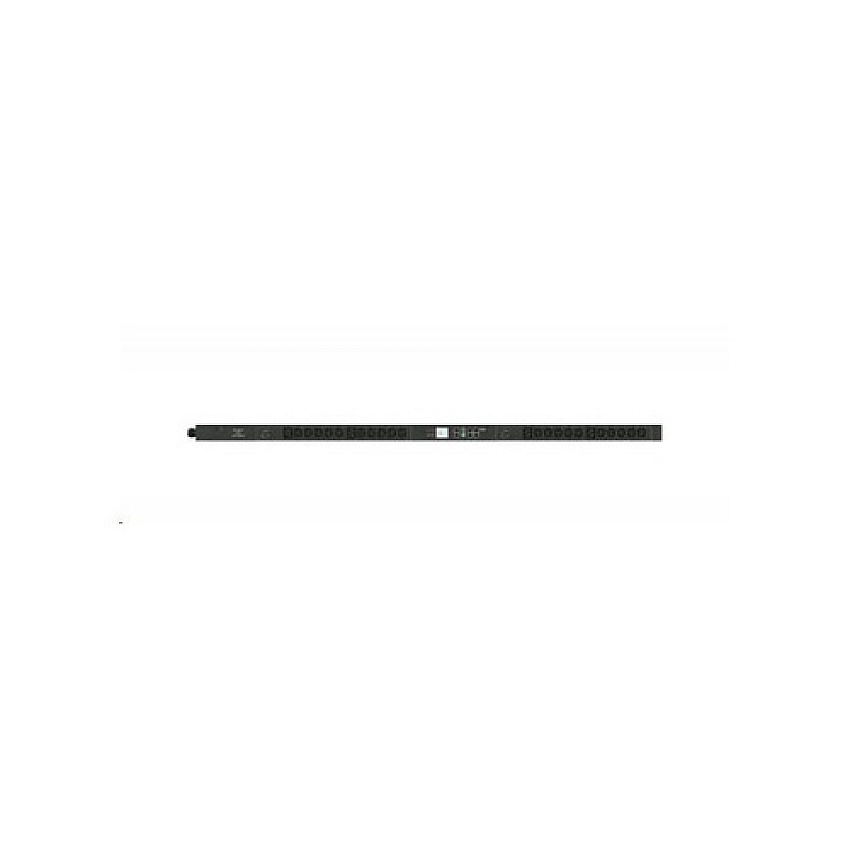

Raritan 1ph 208v 30a 24: 20x C13 4xc19 (PX35497U)
Raritan 1ph 208v 30a 24: 20x C13 4xc19 (PX35497U)
-
1PH 208V 30A 24: 20X C13 4XC19
-
Special order arrives within 3-7 weeks.
Product Description
1PH 208V 30A 24: 20x C13 4xC19 NEMA L6-30P top-top, 0U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5497UMPN
RRTPX35497UModel#
PX35497UUNSPSC Code
0Information
Product Description: Raritan PX3-5497U - power distribution unit - 5000 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 11.9 lbs
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 5000 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Input Connectors: 1 x power NEMA L6-30P
Output connectors: 20 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A
Networking: Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Color: Black
Dimensions (WxDxH): 2 in x 2.6 in x 60.6 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L6-30P
Power Output Connectors Details: 20 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A
Output Voltage: AC 208 V
Max Electric Current: 30 A
Power Capacity: 5000 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Cables Included: Power cable - integrated - 10 ft
Features: Vertical orientation, voltage monitoring, current meter, overcurrent protection, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP44, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.6 in
Height: 60.6 in
Weight: 11.9 lbs
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 71.5 in
Shipping Weight: 16.75 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
