Raritan 1ph 208v 30a 20xc13; Nema L6-30p 2u (PX35460RE2)
Raritan 1ph 208v 30a 20xc13; Nema L6-30p 2u (PX35460RE2)
-
1PH 208V 30A 20xC13; NEMA L6-30P 2U
-
Special order arrives within 3-7 weeks.
Product Description

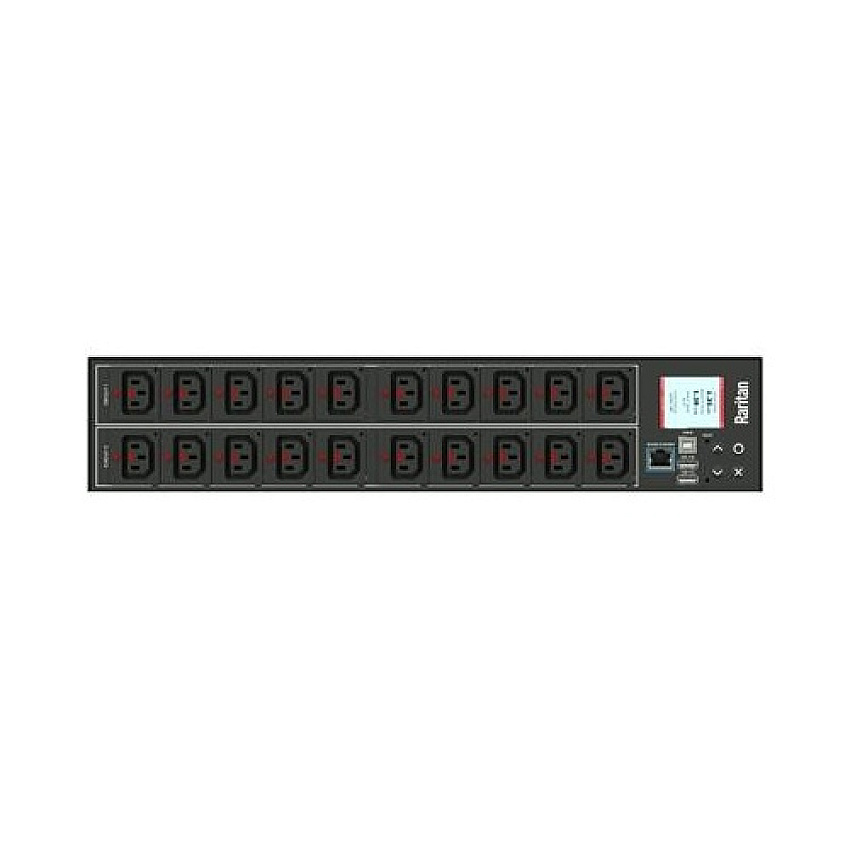

1PH, 208V AC, 30A (24A rated); 20 outlets: 20x C13 Locking; plug: NEMA L6-30P (Rear feed), 5.0kVA; Outlet Metered/Switched, 2U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5460R-E2MPN
RRTPX35460RE2Model#
PX35460RE2UNSPSC Code
0Information
Product Description: Raritan PX intelligent PX3-5460R-E2 - power distribution unit - 5000 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 2U
Weight: 16.53 lbs
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 5000 VA
Input Connectors: 1 x power NEMA L6-30P
Output connectors: 24 x power IEC 60320 C13 24 A
Networking: Ethernet 10/100, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Color: Black powder coat
Dimensions (WxDxH): 17.3 in x 11.5 in x 3.5 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 2U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Connectors: 1 x power NEMA L6-30P
Power Output Connectors Details: 24 x power IEC 60320 C13 24 A
Output Voltage: AC 208 V
Max Electric Current: 24 A
Power Capacity: 5000 VA
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Cables Included: Power cable - integrated - 10 ft
Features: Horizontal orientation, LCD display, voltage monitoring, current meter, overcurrent protection, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle
Compliant Standards: UL, RoHS, WEEE, FCC Part 15 A, PSE Mark, cULus, EAC, IEC 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 17.3 in
Depth: 11.5 in
Height: 3.5 in
Weight: 16.53 lbs
Shipping Width: 21.7 in
Shipping Depth: 11.2 in
Shipping Height: 22 in
Shipping Weight: 24.25 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
