Raritan 1ph,208v,24a,24xc13,12xc19 (PX35903V)
Raritan 1ph,208v,24a,24xc13,12xc19 (PX35903V)
-
1PH,208V,24A,24xC13,12xC19
-
Special order arrives within 3-7 weeks.
Product Description
1PH,208V,24A,24xC13,12xC19,NEMA L6-30P,5.0kVA,0U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5903VMPN
RRTPX35903VModel#
PX35903VUNSPSC Code
0Information

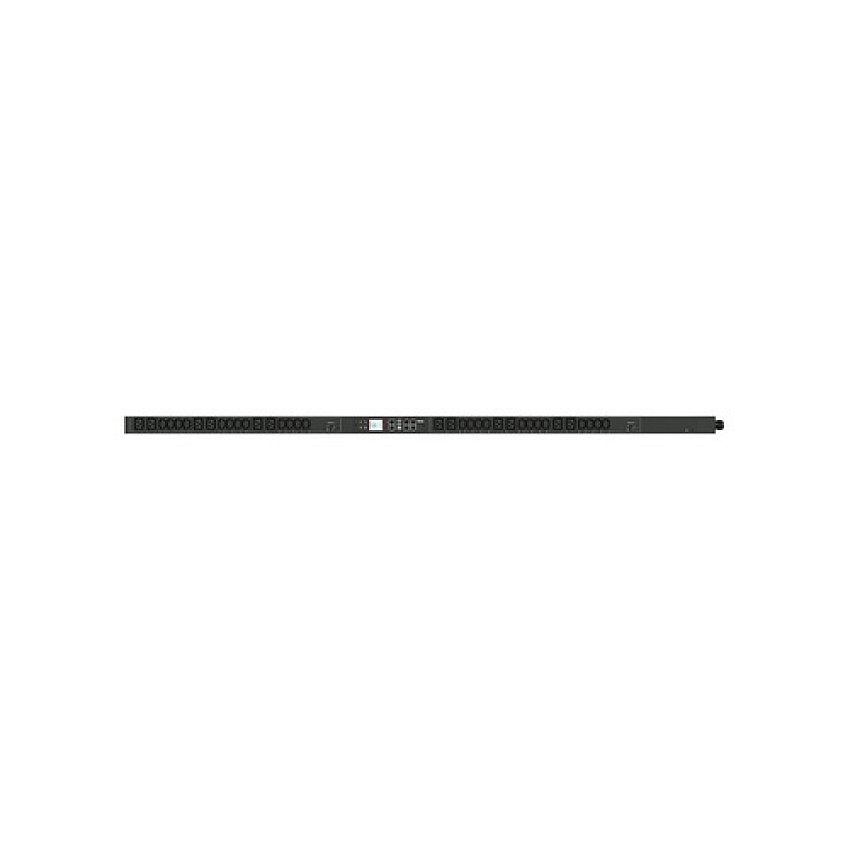

Product Description: Raritan Dominion PX PX3-5903V - power distribution unit - 5000 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 14.11 lbs
Input Wiring: 1-phase
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 5000 VA
Input Connectors: 1 x power NEMA L6-30
Output connectors: 24 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A
Networking: RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Image Color Disclaimer: The displayed product image may be a different color
Dimensions (WxDxH): 2 in x 2.6 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Image Color Disclaimer: The displayed product image may be a different color
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L6-30
Power Output Connectors Details: 24 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 30 A
Power Capacity: 5000 VA
Circuit Protection: Circuit breaker
Remote Management Interface: RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
Interfaces: 1 x sensor - RJ-45 ¦ 1 x management (modem) - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45
Cables Included: Power cable 10 ft
Rack Mounting Kit: Included
Features: Vertical orientation, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, replaceable controller, cord retention outlet
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.6 in
Height: 70.1 in
Weight: 14.11 lbs
Shipping Width: 11 in
Shipping Depth: 4.5 in
Shipping Height: 80.9 in
Shipping Weight: 19.4 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
