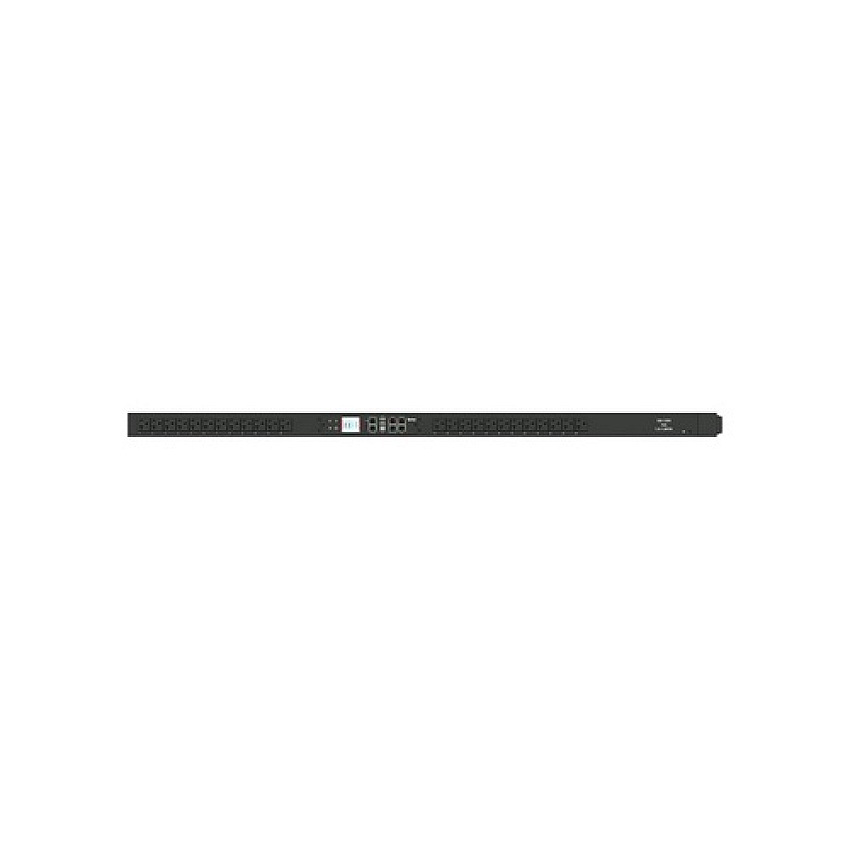

Raritan 1ph 120vac 20a 24xnema 5-20r Nema L5-20p (PX31475V)
Raritan 1ph 120vac 20a 24xnema 5-20r Nema L5-20p (PX31475V)
-
1PH 120VAC 20A 24xNEMA 5-20R NEMA L5-20P
-
Special order arrives within 3-7 weeks.
Product Description
1PH, 120V AC, 20A (16A rated); 24 outlets: 24x NEMA 5-20R; plug: NEMA L5-20P (Bottom-bottom feed), 1.9kVA; Unit Metered, Zero U vertical PDU, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-A,
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-1475VMPN
RRTPX31475VModel#
PX31475VUNSPSC Code
0Information
Product Description: Raritan PX3-1475V - power distribution unit - 1900 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 7.05 lbs
Input Wiring: 1-phase
Input Voltage: AC 120 V
Output Voltage: AC 120 V
Power Capacity: 1900 VA
Power Capacity Details: 1.6 kVA at 100 V, 1.9 kVA at 120 V
Input Connectors: 1 x power NEMA L5-20P
Output connectors: 24 x power NEMA 5-20R 16 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, JSON-RPC, SMTP, Modbus, DHCP
Color: Black powder coat
Dimensions (WxDxH): 2 in x 1.7 in x 51.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 120 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L5-20P
Power Output Connectors Details: 24 x power NEMA 5-20R 16 A
Output Voltage: AC 120 V
Max Electric Current: 20 A
Power Capacity: 1900 VA
Power Capacity Details: 1.6 kVA at 100 V, 1.9 kVA at 120 V
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI, JSON-RPC, SMTP, Modbus, DHCP
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor - RJ-45
Cables Included: Power cable 10 ft
Features: Vertical orientation, tool-less button mount, LCD display, current meter, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, metering per input line, replaceable controller, power cable IP44 compliant, cord retention, removable controller, Auto-Flip Current Display, voltage meter, environmental sensor ready
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 1.7 in
Height: 51.1 in
Weight: 7.05 lbs
Shipping Width: 7.3 in
Shipping Depth: 7.3 in
Shipping Height: 55.4 in
Shipping Weight: 13.23 lbs
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
3.1Ships via UPS
