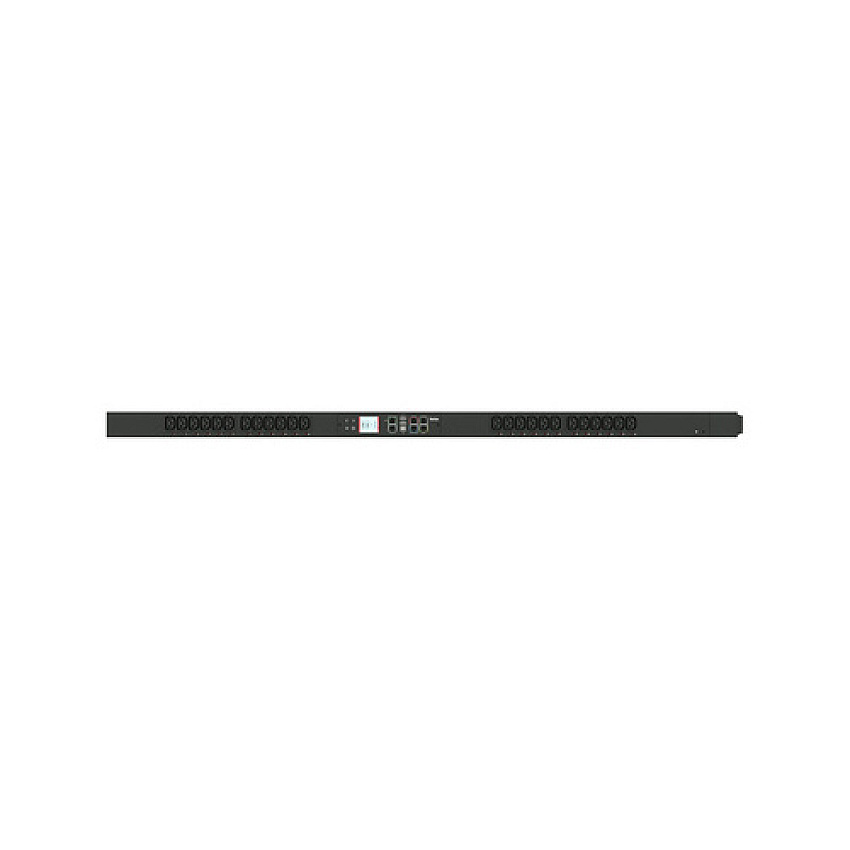

Raritan 1ph 120v Ac 20a 24 24xc13 Nema L5-20p (PX35476V)
Raritan 1ph 120v Ac 20a 24 24xc13 Nema L5-20p (PX35476V)
-
1PH 120V AC 20A 24 24xC13 NEMA L5-20P
-
Special order arrives within 3-7 weeks.
Product Description
1PH, 120V AC, 20A (16A rated) 24 outlets: 24x C13 plug: NEMA L5-20P Bottom-bottom feed 1.9kVA Outlet Metered/Switched, 0 U vert PDU, hi resolution color display w/ field replaceable controller, Ethernet, serial, 2x USB-A, USB-B & sensor connection
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5476VMPN
RRTPX35476VModel#
PX35476VUNSPSC Code
0Information
Product Description: Raritan PX3-5476V - power distribution unit - 1900 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 10.14 lbs
Input Wiring: 1-phase
Input Voltage: AC 120 V
Output Voltage: AC 120 V
Power Capacity: 1900 VA
Input Connectors: 1 x power NEMA L5-20P
Output connectors: 24 x power IEC 60320 C13 - 120 V 12 A
Networking: USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.6 in x 51.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 120 V
Input Wiring: 1-phase
Input Connectors: 1 x power NEMA L5-20P
Power Output Connectors Details: 24 x power IEC 60320 C13 - 120 V 12 A
Output Voltage: AC 120 V
Max Electric Current: 20 A
Power Capacity: 1900 VA
Remote Management Interface: USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x monitoring ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x monitoring ¦ 1 x modem ¦ 1 x sensor
Cables Included: Power cable 10 ft
Features: Vertical orientation, LED display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.6 in
Height: 51.1 in
Weight: 10.14 lbs
Shipping Width: 7.3 in
Shipping Depth: 7.3 in
Shipping Height: 55.4 in
Shipping Weight: 14.55 lbs
COO: TAIWAN / TAIWAN / TAIWAN
TAA compliance: Yes
