Raritan 1ph,120v Ac,20a (16a Rated); (PX35405R)
Raritan 1ph,120v Ac,20a (16a Rated); (PX35405R)
-
1PH,120V AC,20A (16A RATED);
-
Special order arrives within 3-7 weeks.
Product Description

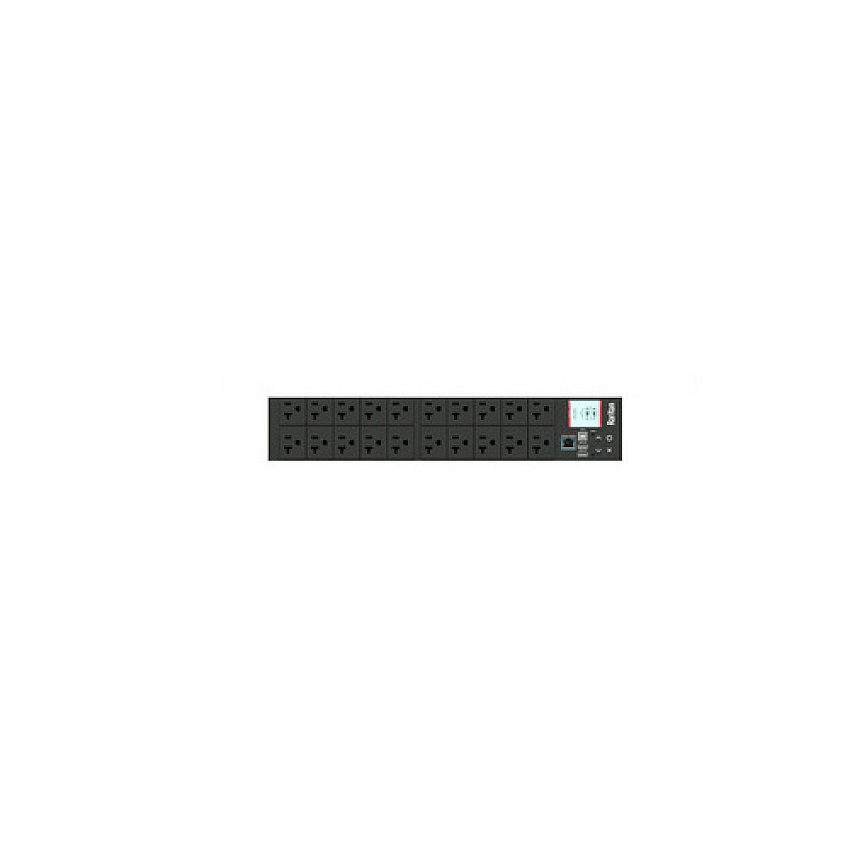

1PH,120V AC,20A (16A rated);20 outlets: 20x NEMA 5-20R;plug: NEMA 5-20P (Rear feed),1.9kVA;Outlet Metered/Switched,2U horizontal PDU,high resolution color display,Ethernet,serial,2x USB-A,USB-B and sensor connections
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5405RMPN
RRTPX35405RModel#
PX35405RUNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-5405R - power distribution unit - 1900 VADevice Type: Power distribution unit - rack-mountable
Rack Size: 2U
Input Voltage: AC 120 V
Output Voltage: 120 V
Power Capacity: 1900 VA
Input Connectors: 1 x power NEMA 5-20P
Output connectors: 20 x power NEMA 5-20R 16 A
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Black powder coat
Dimensions (WxDxH): 17.3 in x 11.5 in x 3.5 in
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 2U
Color: Black powder coat
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 120 V
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA 5-20P
Power Output Connectors Details: 20 x power NEMA 5-20R 16 A
Output Voltage: 120 V
Max Electric Current: 16 A
Power Capacity: 1900 VA
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x monitoring - RJ-11 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Cables Included: Power cable - external - 10 ft
Rack Mounting Kit: Included
Features: LED display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 85% (non-condensing)
Width: 17.3 in
Depth: 11.5 in
Height: 3.5 in
COO: TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
21.34Ships via UPS
NBrand
Raritan
