Raritan 120v 30a 2u 20xnema5-20r; Nema L530p Red (PX35453RK6)
Raritan 120v 30a 2u 20xnema5-20r; Nema L530p Red (PX35453RK6)
-
120V 30A 2U 20xNEMA5-20R; NEMA L530P RED
-
Special order arrives within 3-7 weeks.

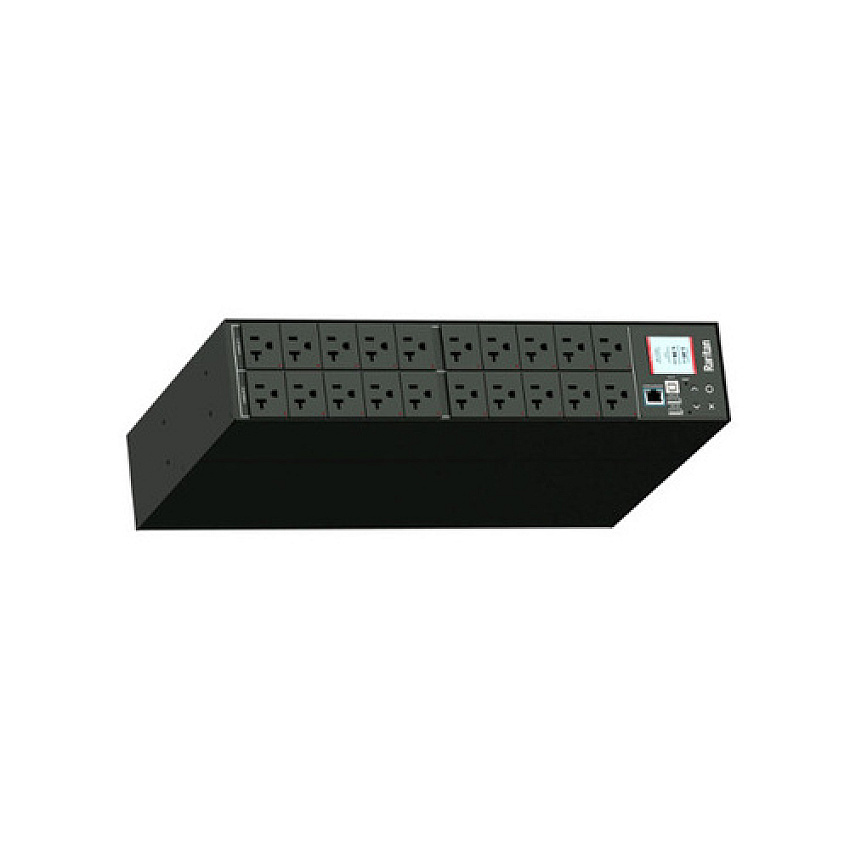

Product Description
1PH, 120V AC, 30A (24A rated); 20 outlets: 20x NEMA 5-20R; plug: NEMA L5-30P (Rear feed), 2.9kVA; Outlet Metered/Switched, 2U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections (RED
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5453R-K6MPN
RRTPX35453RK6Model#
PX35453RK6UPC Code
785813115485UNSPSC Code
0Information
Product Description: Raritan PX3-5453R-K6 - power distribution unit - 2900 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Weight: 14.99 lbs
Input Wiring: 1-phase
Input Voltage: AC 120 V
Output Voltage: AC 120 V
Power Capacity: 2900 VA
Power Capacity Details: 2.4 kVA at 100 V, 2.9 kVA at 120 V
Input Connectors: 1 x power NEMA L5-30P
Output connectors: 20 x power NEMA 5-20R 16 A
Networking: Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, Modbus
Color: Yellow
Image Color Disclaimer: The displayed product image may be a different color
Dimensions (WxDxH): 17.3 in x 11.5 in x 3.5 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Color: Yellow
Image Color Disclaimer: The displayed product image may be a different color
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 120 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L5-30P
Power Output Connectors Details: 20 x power NEMA 5-20R 16 A
Output Voltage: AC 120 V
Max Electric Current: 30 A
Power Capacity: 2900 VA
Power Capacity Details: 2.4 kVA at 100 V, 2.9 kVA at 120 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, Modbus
Interfaces: 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x cascading - RJ-45
Cables Included: Power cable - integrated - 10 ft
Features: LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, rear feed cord entry, power cable IP44 compliant, 2 x Airpax LELBX1-20 overload protection, environmental sensor ready
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 17.3 in
Depth: 11.5 in
Height: 3.5 in
Weight: 14.99 lbs
Shipping Width: 22 in
Shipping Depth: 21.7 in
Shipping Height: 11.2 in
Shipping Weight: 23.81 lbs
COO: TAIWAN
TAA compliance: Yes
