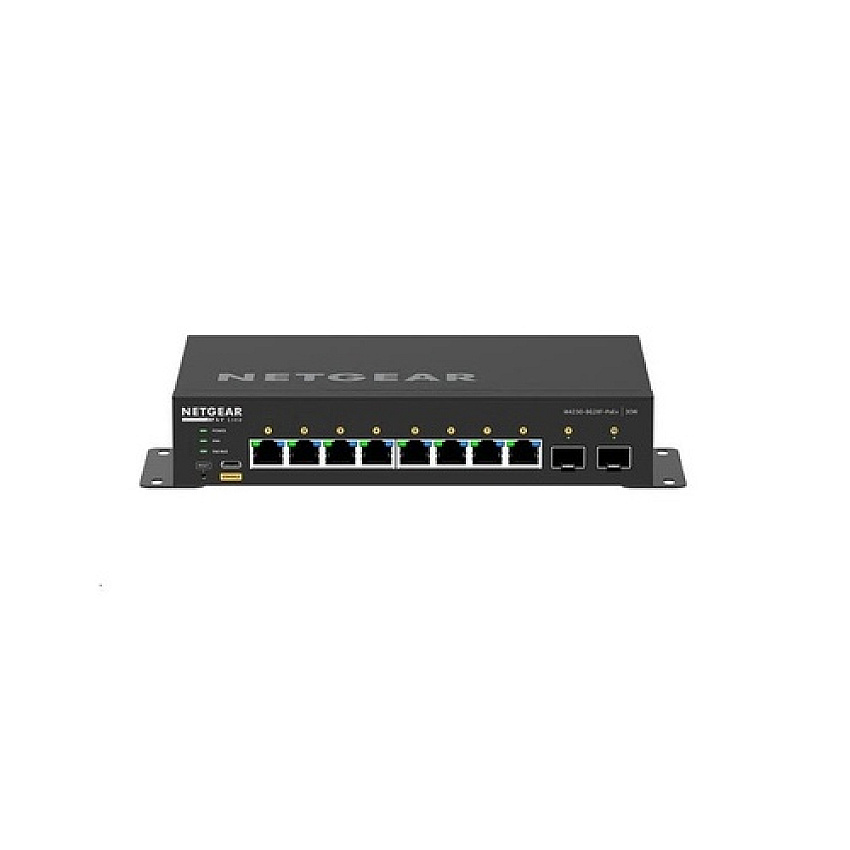

NETGEAR AV Line M4250-8G2XF-PoE+ Fully Managed Desktop Switch
-
In Stock
Product Description
NETGEAR AV Line M4250-8G2XF-PoE+ Fully Managed Desktop Switch
Product Specs
Manufacturer
NetgearCategories
Netgear Computer AccessoriesNetgear Networking, Cables & AccessoriesNetgear Network SwitchesManufacturer Stock No.
GSM4210PX-100NASMPN
NETGSM4210PX100NASModel#
GSM4210PX100NASUPC Code
606449160215UNSPSC Code
0Information
Product Description: NETGEAR AV Line M4250-8G2XF-PoE+ - switch - 10 ports - managed - rack-mountableDevice Type: Switch - 10 ports - L3 - managed
Enclosure Type: Side to side airflow rack-mountable
Subtype: 10 Gigabit Ethernet
Ports: 8 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
PoE Budget: 220 W
Performance: Switching capacity: 56 Gbps ¦ Throughput (64-byte packet size): 41.67 Mpps ¦ Latency (1 Gbps): < 2.14 µs ¦ Latency (10 Gbps): < 0.84 µs
Capacity: VLANs supported: 4093 ¦ ARP entries: 4000 ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 128 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ MSTP instances: 16 ¦ PVST instances: 32
MAC Address Table Size: 16K entries
Jumbo Frame Support: 12KB
Routing Protocol: RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, HTTPS, SSH, CLI, TACACS+, RADIUS
Features: VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), LACP support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, Precision Time Protocol (PTP), IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), Root Guard, LLDP-MED, Private VLAN, PoE timer, Protocol Independent Multicast (PIM), Audio Video Bridging (AVB), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG), IGMP support, MIB support, Mount Smart Phone (MTP)
Compliant Standards: IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav
Dimensions (WxDxH): 8.3 in x 5.5 in x 1.6 in
Weight: 34.11 oz
Localization: Americas
Manufacturer Warranty: ProSAFE lifetime warranty
Device Type: Switch - 10 ports - L3 - managed
Enclosure Type: Side to side airflow rack-mountable
Subtype: 10 Gigabit Ethernet
Ports: 8 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
PoE Budget: 220 W
Performance: Switching capacity: 56 Gbps ¦ Throughput (64-byte packet size): 41.67 Mpps ¦ Latency (1 Gbps): < 2.14 µs ¦ Latency (10 Gbps): < 0.84 µs
Capacity: VLANs supported: 4093 ¦ ARP entries: 4000 ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 128 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ MSTP instances: 16 ¦ PVST instances: 32
MAC Address Table Size: 16K entries
Jumbo Frame Support: 12KB
Routing Protocol: RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, HTTPS, SSH, CLI, TACACS+, RADIUS
Encryption Algorithm: SSL 3.0, TLS 1.2
Features: VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), LACP support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, Precision Time Protocol (PTP), IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), Root Guard, LLDP-MED, Private VLAN, PoE timer, Protocol Independent Multicast (PIM), Audio Video Bridging (AVB), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG), IGMP support, MIB support, Mount Smart Phone (MTP)
Compliant Standards: IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav
Processor: X ARM A9: 1.25 GHz
RAM: 2 GB
Flash Memory: 256 MB
Interfaces: 8 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) ¦ 2 x 10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 1 x console (USB) Type C
Power Device: External power adapter
Installed Qty: 1
Included Accessories: Mounting brackets, foot pad set, 2 x SFP slot caps
Cables Included: USB-C to USB-A cable
Rack Mounting Kit: Included
Compliant Standards: CSA, BSMI, CB, CCC, KC, IEC 60950-1 Second Edition, EAC, RCM, IEC 62311, EN 61000-3-3: 2013, EN 55024: 2010, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN32 Class A, KN35 Class A, ISED, EN 55032: 2015 Class A, EN 61000-3-2: 2014 Class A, VCCI-CISPR 32: 2016 Class A, AS/NZS CISPR32: 2015 Class A, EN 55035: 2017, GOST 30804.3.2-2013, GOST 30804.3.3-2013, GB/T9254-2008 Class A, ANSI C63.4: 2014, IEC 62368-1 Second Edition, ICES-003: 2016 issue 7 Class A, GOST 30805.22-2013, GOST CISPR 24-2013
Localization: Americas
Width: 8.3 in
Depth: 5.5 in
Height: 1.6 in
Weight: 34.11 oz
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 90% (non-condensing)
Min Storage Temperature: -4 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 95% (non-condensing)
COO: THAILAND
TAA compliance: No
