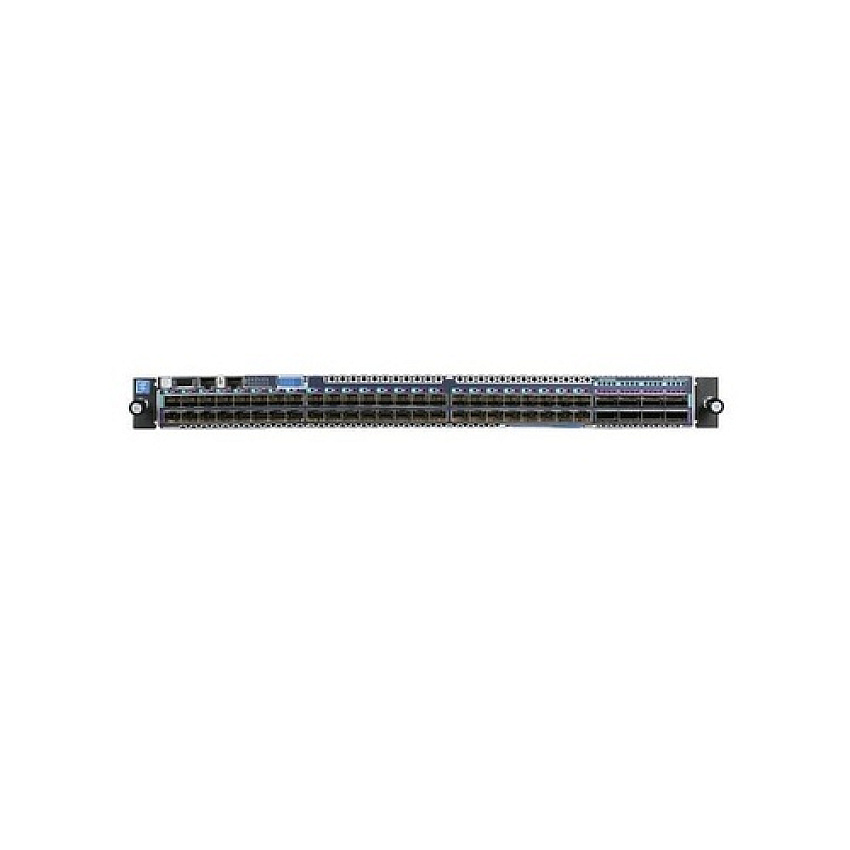

NETGEAR 48 Port 10/25g 8 Port 40/50/100g (XSM4556100NAS)
Model: XSM4556100NAS
NETGEAR 48 Port 10/25g 8 Port 40/50/100g (XSM4556100NAS)
Model: XSM4556100NAS
-
48 PORT 10/25G 8 PORT 40/50/100G
-
Special order arrives within 3-7 weeks.
Product Description
The M4500-48XF8C switch provides 48-port SFP28 (1G, 10G and 25G fiber) and 8-port QSFP28 (40G, 50G and 100G fiber) With 4Tbps non-blocking fabric and 2Bpps forwarding rate
Product Specs
Manufacturer
NetgearCategories
Netgear Computer AccessoriesNetgear Networking, Cables & AccessoriesNetgear Network SwitchesManufacturer Stock No.
XSM4556-100NASMPN
NETXSM4556100NASModel#
XSM4556100NASUPC Code
606449145700UNSPSC Code
0Information
Product Description: NETGEAR M4500-48XF8C - switch - 48 ports - managed - rack-mountableDevice Type: Switch - 48 ports - L3 - managed
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10 Gigabit SFP28 + 8 x 100 Gigabit QSFP28
Performance: Switching capacity: 4 Tbps ¦ Throughput: 2 Bpps
Capacity: Virtual interfaces (VLANs): 4000 ¦ IPv4 routes: 32000 ¦ IPv6 routes: 24000 ¦ MLD interfaces: 2048 ¦ ARP entries: 8000 ¦ Multicast entries (IPv4): 2048 ¦ Multicast entries (IPv6): 2048 ¦ NDP entries: 2500
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9KB
Routing Protocol: BGP-4, BGP, IGMPv2, PIM-SM, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, VRRPv2, CIDR, RSTP, STP
Remote Management Protocol: SNMP 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI, IPv4, IPv6, TACACS+
Features: ARP support, DiffServ support, IPv6 support, sFlow, STP support, VRRP support, DHCP snooping, QoS, VRF-Lite, IPv4 support, LACP support, DHCP relay, LACP, RSPAN, dynamic ARP protection, static routing, CoS, 6 fans, IP source guard, SSM, AAA, MLAG, BPDU Guard, 4+2 redundant fans, 256MB packet buffer
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX
Power: AC 110/240 V
Power Redundancy: Yes
Dimensions (WxDxH): 17.3 in x 20 in x 1.7 in
Weight: 21.45 lbs
Localization: United States, Europe
Manufacturer Warranty: ProSAFE lifetime warranty
Device Type: Switch - 48 ports - L3 - managed
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10 Gigabit SFP28 + 8 x 100 Gigabit QSFP28
Performance: Switching capacity: 4 Tbps ¦ Throughput: 2 Bpps
Capacity: Virtual interfaces (VLANs): 4000 ¦ IPv4 routes: 32000 ¦ IPv6 routes: 24000 ¦ MLD interfaces: 2048 ¦ ARP entries: 8000 ¦ Multicast entries (IPv4): 2048 ¦ Multicast entries (IPv6): 2048 ¦ NDP entries: 2500
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9KB
Routing Protocol: BGP-4, BGP, IGMPv2, PIM-SM, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, VRRPv2, CIDR, RSTP, STP
Remote Management Protocol: SNMP 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI, IPv4, IPv6, TACACS+
Authentication Method: RADIUS, TACACS+
Features: ARP support, DiffServ support, IPv6 support, sFlow, STP support, VRRP support, DHCP snooping, QoS, VRF-Lite, IPv4 support, LACP support, DHCP relay, LACP, RSPAN, dynamic ARP protection, static routing, CoS, 6 fans, IP source guard, SSM, AAA, MLAG, BPDU Guard, 4+2 redundant fans, 256MB packet buffer
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX
Processor: 1 x Intel Atom C3558
RAM: 8 GB DDR3L SDRAM
Built-in Devices: 128 GB SSD
Interfaces: 48 x 25GBase-X SFP28 ¦ 8 x 100GBase-X QSFP28 ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x USB Type A
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Power Provided: 750 Watt
Voltage Required: AC 110/240 V
Power Consumption Operational: 394 Watt
Included Accessories: Mounting screws, rack rails kit, 2 mounting ears
MTBF: 289,052 hours
Compliant Standards: BSMI, EN 60950, UL 1950, IEC 60950, CB, FCC CFR47 Part 15, LVD, RCM, BSMI CNS 14336-1, EN 61000-3-3: 2013, YD/T993-1998, EN 61000-3-2: 2014, CNS 13438 Class A, GB 4943.1-2011, EN 55032: 2012+AC: 2013 Class A, ANSI C63.4-2014, ISED, ICES-003: 2016 issue 6 Class A, CISPR 32: 2012, VCCI-CISPR 32: 2016 Class A, AN/NZS 60950.1: 2015, AS/NZS CISPR32: 2013 Class A, IEC 60950-1: 2005 (ed.2)+A1: 2009+A2: 2013, EN 55024: 2010 Class A, T9254-2008 (Class A), EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
Localization: United States, Europe
Width: 17.3 in
Depth: 20 in
Height: 1.7 in
Weight: 21.45 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 90% (non-condensing)
Min Storage Temperature: -4 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 95% (non-condensing)
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
34.6Ships via UPS
YBrand
Netgear
