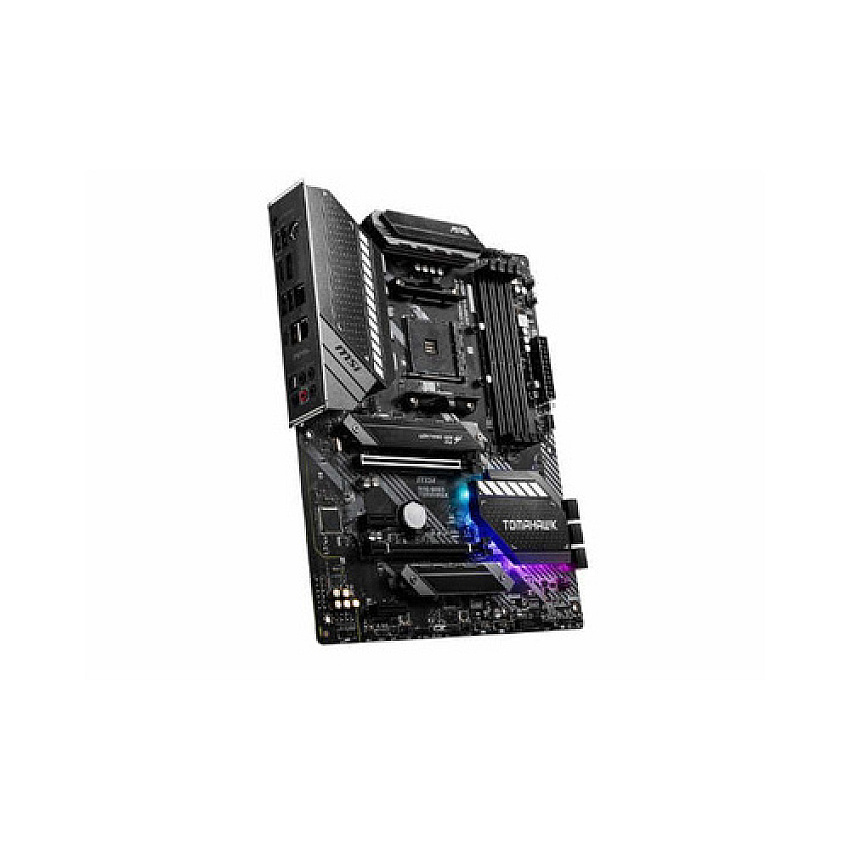

MSI Mag B550 Tomahawk (B550TMHWK)
MSI Mag B550 Tomahawk (B550TMHWK)
-
MAG B550 TOMAHAWK
-
Out Of Stock
Product Description
MAG B550 TOMAHAWK,AMD B550,Black/Matt,ATX,AM4,Supports 3rd Gen AMD Ryzen/ 3nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 ,DDR4,up to 64GB,HDMI,Display Port
Product Specs
Manufacturer
MSIManufacturer Stock No.
B550TMHWKMPN
MSIB550TMHWKModel#
B550TMHWKUPC Code
824142217627UNSPSC Code
0Information
Product Description: MSI MAG B550 TOMAHAWK - motherboard - ATX - Socket AM4 - AMD B550Product Type: Motherboard - ATX
Chipset Type: AMD B550
Processor Socket: 1 x Socket AM4
Compatible Processors: Ryzen (supports 3rd Generation Ryzen)
Max RAM Size: 128 GB
RAM Supported: 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
Storage Ports: 6 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports: 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Max Allocated RAM Size: 2 GB
Audio: HD Audio (8-channel)
LAN: Gigabit Ethernet, 2.5 Gigabit Ethernet
Product Type: Motherboard - ATX
Chipset Type: AMD B550
Processor Socket: Socket AM4
Max Processors Qty: 1
Compatible Processors: Ryzen (supports 3rd Generation Ryzen)
Max Size: 128 GB
Technology: DDR4
Bus Clock: 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.)
Supported RAM Integrity Check: Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered: Unbuffered
Features: Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
Max Allocated RAM Size: 2 GB
Type: HD Audio (8-channel)
Audio Codec: Realtek ALC1200
Compliant Standards: High Definition Audio
Network Controller: Realtek RTL8125B / RTL8111H
Network Interfaces: Gigabit Ethernet, 2.5 Gigabit Ethernet
Expansion Slots: 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode (auto turn-off if M.2 is occupied)) ¦ 2 x PCIe 3.0 x1
Storage Interfaces: SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Interfaces: 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces: 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
BIOS Features: MSI ClickBIOS 5
Hardware Features: AMD CrossFireX technology support, MSI Audio Boost, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot
Included Accessories: Case badge
Cables Included: 2 x Serial ATA cable
Software Included: Drivers & utilities
Width: 12 in
Depth: 9.6 in
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
4.45Ships via UPS
YBrand
MSI
