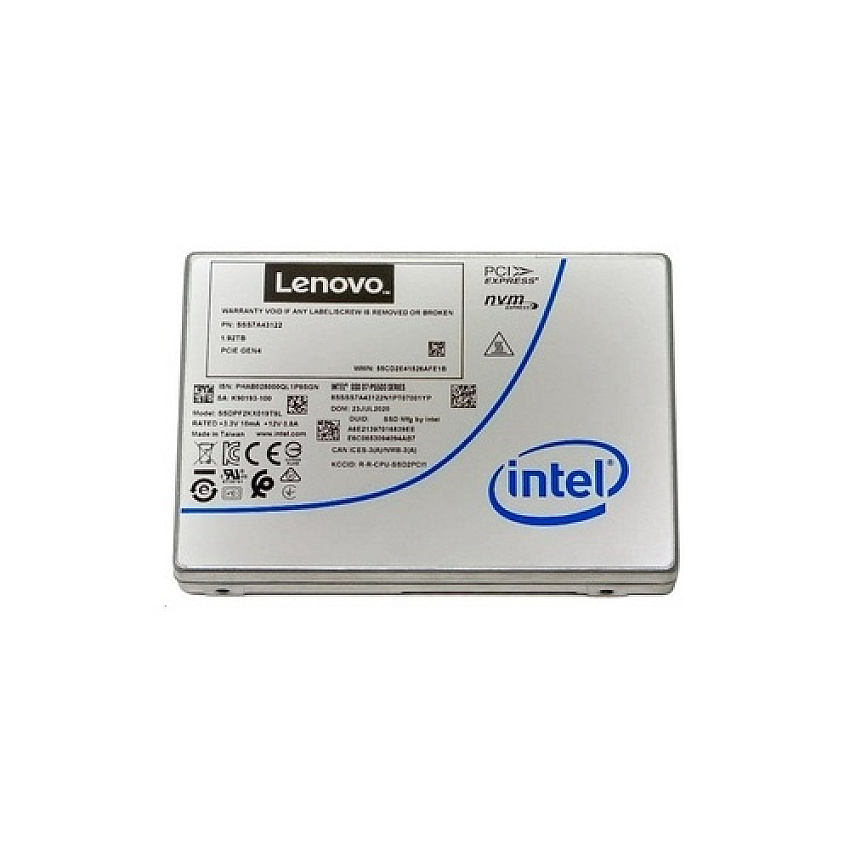

Lenovo U.2 Intel P5500 3.84tb En Nvme Ssd (4XB7A17146)
Model: 4XB7A17146
Lenovo U.2 Intel P5500 3.84tb En Nvme Ssd (4XB7A17146)
Model: 4XB7A17146
-
U.2 INTEL P5500 3.84TB EN NVME SSD
-
Out Of Stock
Product Description
U.2 Intel P5500 3.84TB EN NVMe SSD
Product Specs
Manufacturer
LenovoManufacturer Stock No.
4XB7A17146MPN
LES4XB7A17146Model#
4XB7A17146UPC Code
889488525898UNSPSC Code
0Information
Product Description: Intel P5500 Entry - SSD - 3.84 TB - U.2 PCIe 4.0 x4 (NVMe)Type: Solid state drive - hot-swap
Capacity: 3.84 TB
NAND Flash Memory Type: 3D triple-level cell (TLC)
Form Factor: 2.5"
Interface: U.2 PCIe 4.0 x4 (NVMe)
Features: Thermal throttling, End-to-end data path protection, Thermal Monitoring, 96-layer 3D NAND technology, S.M.A.R.T.
Dimensions (WxDxH): 2.8 in x 3.9 in x 0.6 in
Weight: 5.15 oz
Manufacturer Warranty: 1-year warranty
Designed For: ThinkAgile HX3330 Appliance; HX3331 Certified Node; HX7530 Appliance; HX7531 Certified Node; MX3330-F Appliance; MX3331-F Certified Node; VX3330 Appliance; VX3331; VX3530-G Appliance; VX3575-G Integrated System; VX5575 Integrated System; VX7330-N Appliance; VX7530 Appliance; VX7531 Certified Node; VX7575 Integrated System; VX7576 Certified Node; ThinkSystem SD530; SD630 V2; SN550; SN850; SR570; SR590; SR630; SR630 V2; SR635; SR650; SR650 V2; SR655; SR665; SR670 V2; SR850; SR850P; SR860; SR950; ST650 V2
Device Type: Solid state drive - hot-swap
Capacity: 3.84 TB
NAND Flash Memory Type: 3D triple-level cell (TLC)
Form Factor: 2.5"
Interface: U.2 PCIe 4.0 x4 (NVMe)
Features: Thermal throttling, End-to-end data path protection, Thermal Monitoring, 96-layer 3D NAND technology, S.M.A.R.T.
Width: 2.8 in
Depth: 3.9 in
Height: 0.6 in
Weight: 5.15 oz
Drive Writes Per Day (DWPD): 1
SSD Endurance: 7 PB
Internal Data Rate: 7 GBps (read) / 3.5 GBps (write)
4KB Random Read: 780000 IOPS
4KB Random Write: 118000 IOPS
Average Latency: 10 µs
MTBF: 2,000,000 hours
Non-Recoverable Errors: 1 per 10^17
Interfaces: 1 x PCI Express 4.0 x4 U.2 (NVMe)
Compatible Bay: 2.5"
Power Consumption: 12.5 Watt (read) ¦ 18 Watt (write)
Compliant Standards: C-Tick, BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022: 2006, WEEE 2002/96/EC, EN55024: 1998, CAN/CSA-CEI/IEC CISPR 22: 02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, UL/CSA60950-1 (2nd Edition), KCC Article 11.1
Service & Support: Limited warranty - replacement - 1 year
Min Operating Temperature: 32 °F
Max Operating Temperature: 158 °F
Humidity Range Operating: 5 - 90% (non-condensing)
Shock Tolerance (operating): 1000 g @ 0.5 ms
Vibration Tolerance (operating): 2.17 g @ 5-700 Hz
Designed For: Lenovo ThinkAgile HX3330 Appliance 7Z85 (2.5") ¦ Lenovo ThinkAgile HX3331 Certified Node 7D52 (2.5") ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 (2.5") ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 (2.5") ¦ Lenovo ThinkAgile MX3330-F Appliance 7D19 (2.5") ¦ Lenovo ThinkAgile MX3331-F Certified Node 7D67 (2.5") ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3331 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 (2.5") ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5") ¦ Lenovo ThinkSystem SD530 7X21 (2.5") ¦ Lenovo ThinkSystem SD630 V2 7D1K (2.5") ¦ Lenovo ThinkSystem SN550 7X16 (2.5") ¦ Lenovo ThinkSystem SN850 7X15 (2.5") ¦ Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5"), 7Y04 (2.5") ¦ Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5") ¦ Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5") ¦ Lenovo ThinkSystem SR630 V2 7Z71 (2.5") ¦ Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5") ¦ Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5") ¦ Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5") ¦ Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5") ¦ Lenovo ThinkSystem SR665 7D2W (2.5") ¦ Lenovo ThinkSystem SR670 V2 7Z23 (2.5") ¦ Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5") ¦ Lenovo ThinkSystem SR850P 7D2F (2.5"), 7D2G (2.5"), 7D2H (2.5") ¦ Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5") ¦ Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5"), 7X13 (2.5") ¦ Lenovo ThinkSystem ST650 V2 7Z74 (2.5"), 7Z75 (2.5")
COO: Inquire
