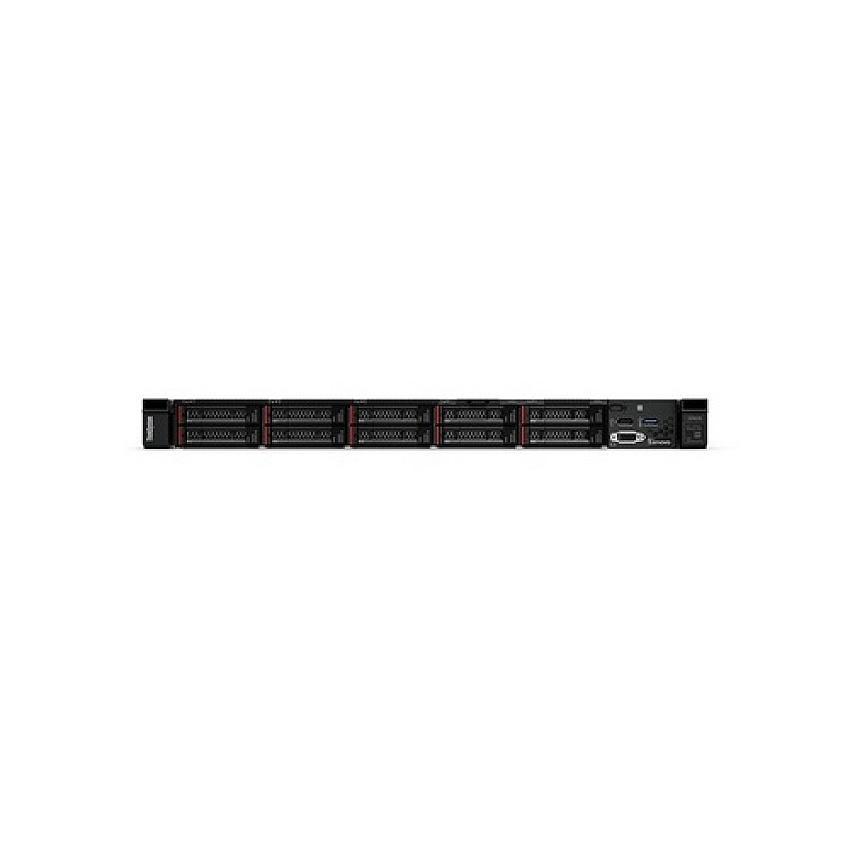

Lenovo Thinksystem Sr630 4214 32gb (7X02A0H8NA)
Model: 7X02A0H8NA
Lenovo Thinksystem Sr630 4214 32gb (7X02A0H8NA)
Model: 7X02A0H8NA
-
THINKSYSTEM SR630 4214 32GB
-
Special order arrives within 3-7 weeks.
Product Description
ThinkSystem SR630 4214 32GB
Product Specs
Manufacturer
LenovoManufacturer Stock No.
7X02A0H8NAMPN
LES7X02A0H8NAModel#
7X02A0H8NAUNSPSC Code
0Information
Product Description: Lenovo ThinkSystem SR630 - rack-mountable - Xeon Silver 4214 2.2 GHz - 32 GB - no HDDType: Server - rack-mountable
Height (Rack Units): 1U
Localization: Region: North America
Server Scalability: 2-way
Processor: 1 x Intel Xeon Silver 4214 / 2.2 GHz (3.2 GHz) (12-core)
Cache Memory: 16.5 MB
Cache Per Processor: 16.5 MB
RAM: 32 GB (installed) / 768 GB (max) - DDR4 SDRAM - ECC
Hard Drive: No HDD
Optical Storage: No optical drive
Graphics Controller: Matrox G200e
Video Memory: 16 MB
Power: (50/60 Hz)
Power Redundancy: Optional
OS Provided: No operating system
Dimensions (WxDxH): 17.1 in x 28.1 in x 1.7 in
Weight: 26.23 lbs
Environmental Standards: ENERGY STAR Qualified
Manufacturer Warranty: Limited warranty - 3 years - on-site - response time: next business day
Type: Server
Product Form Factor: Rack-mountable - 1U
Embedded Security: Trusted Platform Module (TPM 1.2 and TPM 2.0)
Server Scalability: 2-way
Localization: Region: North America
CPU: Intel Xeon Silver 4214
Clock Speed: 2.2 GHz
Max Turbo Speed: 3.2 GHz
Number of Cores: 12-core
CPU Qty: 1
Max CPU Qty: 2
Chipset Type: Intel C624
Installed Size: 16.5 MB
Cache Per Processor: 16.5 MB
Installed Size: 32 GB / 768 GB (max)
Technology: DDR4 SDRAM - ECC
Effective Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, Patrol Scrubbing, Demand Scrubbing
Configuration Features: 1 x 32 GB
RAM Supported: 768 GB registered - ECC ¦ 1.5 TB Load-Reduced - ECC ¦ 3 TB 3DS registered - ECC
Type: No HDD
Type: No optical drive
Monitor Type: None.
Graphics Processor: Matrox G200e
Video Memory: 16 MB
Video Interfaces: VGA
Remote Management Controller: XClarity Controller (XCC) Enterprise
Slots: 1 (total) / 1 (free) x LAN-on-Motherboard (LOM) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile (for internal storage controller)
Interfaces: 1 x management - RJ-45 ¦ 3 x USB 3.0 (1 front, 2 rear) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x USB 2.0 (1 in front)
Included Accessories: Slide tool-less rail kit
Compliant Standards: TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, EAC, NMB-3 Class A, GB 4943.1, BIS, NOM-019, EK1-ITB2000, EN 55022 Class A, CNS 14336-1, IEC/EN 60950-1, TR CU 020/2011, TR CU 004/2011, KCC KN22 Class A, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 100-240 V (50/60 Hz)
Power Provided: 750 Watt
80 PLUS Certification: 80 PLUS Platinum
OS Provided: No operating system
ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0
Service & Support: Limited warranty - 3 years - on-site - response time: next business day
Width: 17.1 in
Depth: 28.1 in
Height: 1.7 in
Weight: 26.23 lbs
COO: Inquire
TAA compliance: Inquire
