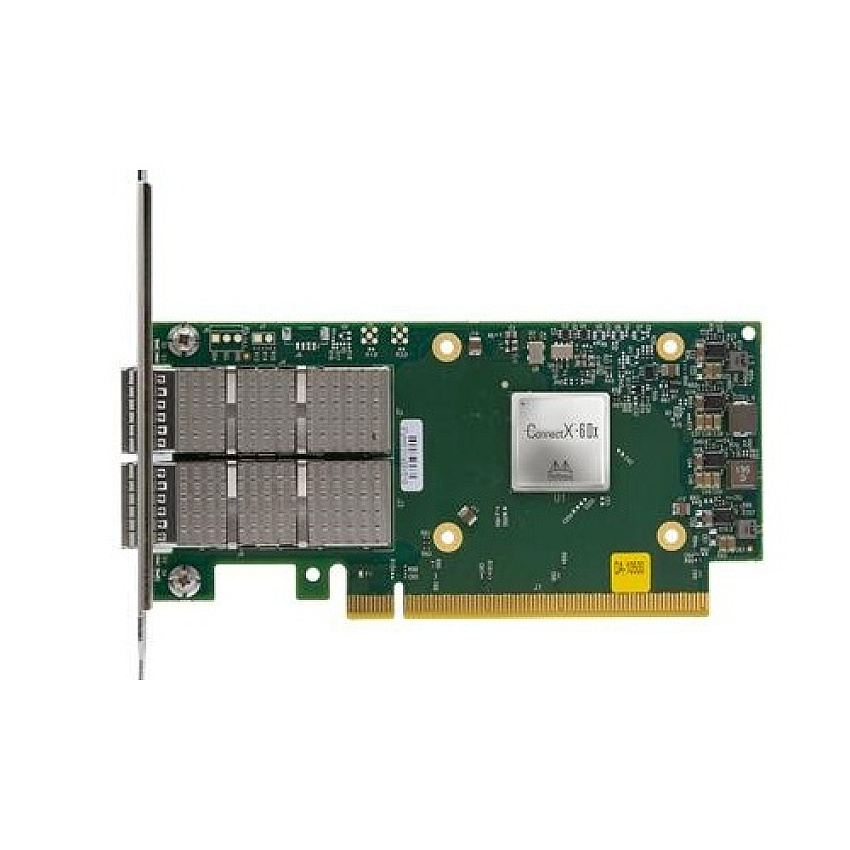

Lenovo Mellanox Cx-6 Dx 2x100gb Pcie (4XC7A08248)
Model: 4XC7A08248
Lenovo Mellanox Cx-6 Dx 2x100gb Pcie (4XC7A08248)
Model: 4XC7A08248
-
MELLANOX CX-6 DX 2X100GB PCIE
-
Special order arrives within 3-7 weeks.
Product Description
Gigabit Ethernet - Plug-In Card - QSFP56 - Gigabit Ethernet
Product Specs
Manufacturer
LenovoCategories
Lenovo Computer AccessoriesLenovo Networking, Cables & AccessoriesLenovo Network AdaptersManufacturer Stock No.
4XC7A08248MPN
LES4XC7A08248Model#
4XC7A08248UNSPSC Code
0Information
Product Description: Lenovo ThinkSystem Mellanox ConnectX-6 Dx - network adapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 2Device Type: Network adapter
Form Factor: Plug-in card - low profile
Interface (Bus) Type: PCI Express 4.0 x16
Ports: 100 Gigabit QSFP56 x 2
Dimensions (WxDxH): 5.6 in x 2.7 in
Data Link Protocol: 10 GigE, 40 Gigabit LAN, 100 Gigabit Ethernet, RoCE, 25 Gigabit LAN, 50 Gigabit LAN, SMPTE
Data Transfer Rate: 100 Gbps
Capacity: Jumbo frame size: 9600 ¦ Virtual functions: 1000
Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCSI, SRP
Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3cd
System Requirements: Microsoft Windows Server 2016, Red Hat Enterprise Linux 8.0, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 8.3
Manufacturer Warranty: 1-year warranty
Designed For: ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node; MX3331-H Certified Node; MX3530-H Hybrid Appliance; MX3531-H Hybrid Certified Node; VX2330 Appliance; VX3330 Appliance; VX3331; VX7330-N Appliance; ThinkSystem SR630 V2; SR635; SR650 V2; SR655; SR665; SR670 V2; ST650 V2
Device Type: Network adapter
Form Factor: Plug-in card - low profile
Interface (Bus) Type: PCI Express 4.0 x16
Ports: 100 Gigabit QSFP56 x 2
Connectivity Technology: Wired
Data Link Protocol: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE), 25 Gigabit Ethernet, 50 Gigabit Ethernet, SMPTE
Data Transfer Rate: 100 Gbps
Capacity: Jumbo frame size: 9600 ¦ Virtual functions: 1000
Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCSI, SRP
Features: MPLS support, VLAN support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), iSCSI remote boot, Precision Time Protocol (PTP), Ethernet remote boot, Transmit Side Scaling (TSS), TCP/IP checksum offload, UDP/IP checksum offload, Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Dynamically Connected transport (DCT), Mellanox PeerDirect, secure boot, Data Plane Development Kit (DPDK), iSCSI Extensions over RDMA (iSER), MCTP over SMBus, NVMe over Fabric (NVMf) Offloads, GENEVE support, Cyclic Redundancy Check (CRC) support, tunnel-aware stateless offloads, NetQueue, zero-touch configuration, MCTP over PCIe VDM
Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3cd
Interfaces: 2 x 100Gb Ethernet - QSFP56
Included Accessories: Low-profile bracket, full-height bracket
Encryption Algorithm: TLS, 256-bit AES-GCM, 128-bit AES-GCM, AES-XTS
Compliant Standards: VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM
OS Required: Microsoft Windows Server 2016, Red Hat Enterprise Linux 8.0, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 8.3
Depth: 5.6 in
Height: 2.7 in
Service & Support: Limited warranty - 1 year
Designed For: Lenovo ThinkAgile MX3330-F Appliance 7D19 ¦ Lenovo ThinkAgile MX3330-H Appliance 7D19 ¦ Lenovo ThinkAgile MX3331-F Certified Node 7D67 ¦ Lenovo ThinkAgile MX3331-H Certified Node 7D67 ¦ Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B ¦ Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
3Ships via UPS
NBrand
Lenovo
$597.63
